6V8Y

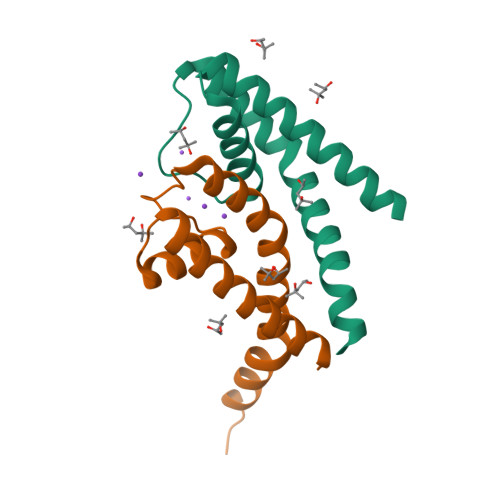

Structure of a Sodium Potassium ion Channel

PDB DOI: https://doi.org/10.2210/pdb6V8Y/pdb

Classification: MEMBRANE PROTEIN
Organism(s): Bacillus cereus
Expression System: Escherichia coli
Mutation(s): No
Membrane Protein: Yes OPMPDBTMMemProtMDmpstruc

Deposited: 2019-12-12 Released: 2021-04-14
Deposition Author(s): Roy, R., Weiss, K.L., Coates, L.

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 1.53 Å
R-Value Free: 0.178
R-Value Work: 0.157
R-Value Observed: 0.158

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Currently 6V8Y does not have a validation slider image.

This is version 1.2 of the entry. See complete history.

Literature

Structural plasticity of the selectivity filter in a nonselective ion channel.

Roy, R.N., Hendriks, K., Kopec, W., Abdolvand, S., Weiss, K.L., de Groot, B.L., Lange, A., Sun, H., Coates, L.

(2021) IUCrJ 8: 421-430

PubMed: 33953928 Search on PubMedSearch on PubMed Central
DOI: https://doi.org/10.1107/S205225252100213X
Primary Citation of Related Structures:
6V8Y

PubMed Abstract:
The sodium potassium ion channel (NaK) is a nonselective ion channel that conducts both sodium and potassium across the cellular membrane. A new crystallographic structure of NaK reveals conformational differences in the residues that make up the selectivity filter between the four subunits that form the ion channel and the inner helix of the ion channel. The crystallographic structure also identifies a side-entry, ion-conduction pathway for Na ⁺ permeation that is unique to NaK. NMR studies and molecular dynamics simulations confirmed the dynamical nature of the top part of the selectivity filter and the inner helix in NaK as also observed in the crystal structure. Taken together, these results indicate that the structural plasticity of the selectivity filter combined with the dynamics of the inner helix of NaK are vital for the efficient conduction of different ions through the non-selective ion channel of NaK.

Organizational Affiliation

Neutron Scattering Division, Oak Ridge National Laboratory, 1 Bethel Valley Road, Oak Ridge, TN 37831, USA.

Macromolecule Content

Total Structure Weight: 22.52 kDa
Atom Count: 1,646
Modelled Residue Count: 184
Deposited Residue Count: 192
Unique protein chains: 1

Macromolecules

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
Potassium channel protein	A, B	96	Bacillus cereus	Mutation(s): 0 Gene Names: A9485_19160, B4155_3291, BACERE00184_02078, CN419_22740, CN950_06075, CN980_22870, COI98_17615, COK18_26145, CON37_12595 Membrane Entity: Yes
UniProt
Find proteins for Q81HW2 (Bacillus cereus (strain ATCC 14579 / DSM 31 / CCUG 7414 / JCM 2152 / NBRC 15305 / NCIMB 9373 / NCTC 2599 / NRRL B-3711)) Explore Q81HW2 Go to UniProtKB: Q81HW2
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	Q81HW2
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 3 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
MPD Query on MPD Download Ideal Coordinates CCD File SDF format, chain C [auth A] SDF format, chain D [auth A] SDF format, chain E [auth A] SDF format, chain F [auth A] SDF format, chain G [auth A] SDF format, chain L [auth B] SDF format, chain M [auth B] SDF format, chain N [auth B] MOL2 format, chain C [auth A] MOL2 format, chain D [auth A] MOL2 format, chain E [auth A] MOL2 format, chain F [auth A] MOL2 format, chain G [auth A] MOL2 format, chain L [auth B] MOL2 format, chain M [auth B] MOL2 format, chain N [auth B] mmCIF format, chain C [auth A] mmCIF format, chain D [auth A] mmCIF format, chain E [auth A] mmCIF format, chain F [auth A] mmCIF format, chain G [auth A] mmCIF format, chain L [auth B] mmCIF format, chain M [auth B] mmCIF format, chain N [auth B]	C [auth A] D [auth A] E [auth A] F [auth A] G [auth A] C [auth A], D [auth A], E [auth A], F [auth A], G [auth A], L [auth B], M [auth B], N [auth B]	(4S)-2-METHYL-2,4-PENTANEDIOL C₆ H₁₄ O₂ SVTBMSDMJJWYQN-YFKPBYRVSA-N		Interactions Focus chain C [auth A] Focus chain D [auth A] Focus chain E [auth A] Focus chain F [auth A] Focus chain G [auth A] Focus chain L [auth B] Focus chain M [auth B] Focus chain N [auth B]
K Query on K Download Ideal Coordinates CCD File SDF format, chain H [auth A] SDF format, chain I [auth A] SDF format, chain O [auth B] MOL2 format, chain H [auth A] MOL2 format, chain I [auth A] MOL2 format, chain O [auth B] mmCIF format, chain H [auth A] mmCIF format, chain I [auth A] mmCIF format, chain O [auth B]	H [auth A], I [auth A], O [auth B]	POTASSIUM ION K NPYPAHLBTDXSSS-UHFFFAOYSA-N		Interactions Focus chain H [auth A] Focus chain I [auth A] Focus chain O [auth B]
NA Query on NA Download Ideal Coordinates CCD File SDF format, chain J [auth A] SDF format, chain K [auth A] MOL2 format, chain J [auth A] MOL2 format, chain K [auth A] mmCIF format, chain J [auth A] mmCIF format, chain K [auth A]	J [auth A], K [auth A]	SODIUM ION Na FKNQFGJONOIPTF-UHFFFAOYSA-N		Interactions Focus chain J [auth A] Focus chain K [auth A]

Experimental Data & Validation

Experimental Data

Method: X-RAY DIFFRACTION
Resolution: 1.53 Å
R-Value Free: 0.178
R-Value Work: 0.157
R-Value Observed: 0.158
Space Group: C 2 2 2₁

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 81.716	α = 90
b = 88.137	β = 90
c = 49.848	γ = 90

Software Package:

Software Name	Purpose
PHENIX	refinement
XDS	data reduction
XSCALE	data scaling
MOLREP	phasing

Structure Validation

View Full Validation Report

Currently 6V8Y does not have a validation slider image.

Entry History

Deposition Data

Released Date: 2021-04-14

Deposition Author(s):

Roy, R.

Weiss, K.L.

Coates, L.

Revision History (Full details and data files)

Version 1.0: 2021-04-14
Type: Initial release
Version 1.1: 2021-05-19
Changes: Database references
Version 1.2: 2023-10-11
Changes: Data collection, Database references, Refinement description
