6UWA | pdb_00006uwa

Mouse PKC C1B and C2 domains

PDB DOI: https://doi.org/10.2210/pdb6UWA/pdb

Classification: SIGNALING PROTEIN
Organism(s): Mus musculus
Expression System: Escherichia coli
Mutation(s): No

Deposited: 2019-11-04 Released: 2020-12-09
Deposition Author(s): Aggarwal, A., Mire, J., Sacchettini, J.C., Igumenova, T.
Funding Organization(s): National Institutes of Health/National Human Genome Research Institute (NIH/NHGRI)

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 1.20 Å
R-Value Free:
0.153 (Depositor), 0.157 (DCC)
R-Value Work:
0.134 (Depositor)
R-Value Observed:
0.135 (Depositor)

wwPDB Validation 3D Report Full Report

Validation slider image for 6UWA

This is version 1.1 of the entry. See complete history.

Literature

Mouse PKC C1B and C2 domains

Igumenova, T.

To be published.

Macromolecule Content

Total Structure Weight: 24.01 kDa
Atom Count: 1,775
Modeled Residue Count: 187
Deposited Residue Count: 194
Unique protein chains: 1

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

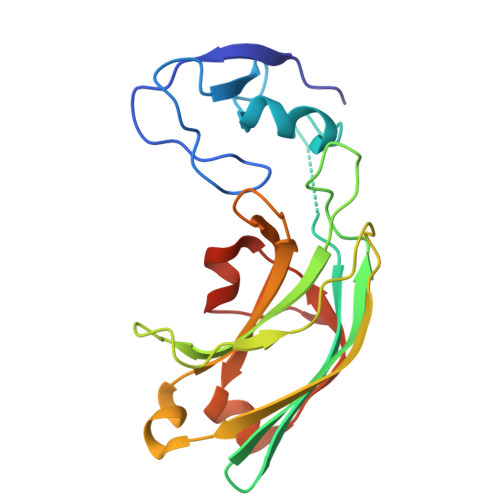

Protein kinase C	A	194	Mus musculus	Mutation(s): 0 Gene Names: Prkca, mCG_140727 EC: 2.7.11.13
UniProt
Find proteins for Q4VA93 (Mus musculus) Explore Q4VA93 Go to UniProtKB: Q4VA93
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q4VA93
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 4 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
PB Query on PB Download:Ideal Coordinates CCD File SDF format, chain E [auth A] SDF format, chain D [auth A] SDF format, chain C [auth A] SDF format, chain B [auth A] MOL2 format, chain E [auth A] MOL2 format, chain D [auth A] MOL2 format, chain C [auth A] MOL2 format, chain B [auth A] mmCIF format, chain E [auth A] mmCIF format, chain D [auth A] mmCIF format, chain C [auth A] mmCIF format, chain B [auth A]	B [auth A], C [auth A], D [auth A], E [auth A]	LEAD (II) ION Pb RVPVRDXYQKGNMQ-UHFFFAOYSA-N		Interactions Focus chain B [auth A] Focus chain C [auth A] Focus chain D [auth A] Focus chain E [auth A] Interactions & Density Focus chain B [auth A] Focus chain C [auth A] Focus chain D [auth A] Focus chain E [auth A]
CIT Query on CIT Download:Ideal Coordinates CCD File SDF format, chain J [auth A] SDF format, chain I [auth A] MOL2 format, chain J [auth A] MOL2 format, chain I [auth A] mmCIF format, chain J [auth A] mmCIF format, chain I [auth A]	I [auth A], J [auth A]	CITRIC ACID C₆ H₈ O₇ KRKNYBCHXYNGOX-UHFFFAOYSA-N		Interactions Focus chain I [auth A] Focus chain J [auth A] Interactions & Density Focus chain I [auth A] Focus chain J [auth A]
SO4 Query on SO4 Download:Ideal Coordinates CCD File SDF format, chain H [auth A] SDF format, chain G [auth A] SDF format, chain F [auth A] MOL2 format, chain H [auth A] MOL2 format, chain G [auth A] MOL2 format, chain F [auth A] mmCIF format, chain H [auth A] mmCIF format, chain G [auth A] mmCIF format, chain F [auth A]	F [auth A], G [auth A], H [auth A]	SULFATE ION O₄ S QAOWNCQODCNURD-UHFFFAOYSA-L		Interactions Focus chain F [auth A] Focus chain G [auth A] Focus chain H [auth A] Interactions & Density Focus chain F [auth A] Focus chain G [auth A] Focus chain H [auth A]
ZN Query on ZN Download:Ideal Coordinates CCD File SDF format, chain L [auth A] SDF format, chain K [auth A] MOL2 format, chain L [auth A] MOL2 format, chain K [auth A] mmCIF format, chain L [auth A] mmCIF format, chain K [auth A]	K [auth A], L [auth A]	ZINC ION Zn PTFCDOFLOPIGGS-UHFFFAOYSA-N		Interactions Focus chain K [auth A] Focus chain L [auth A] Interactions & Density Focus chain K [auth A] Focus chain L [auth A]

Experimental Data & Validation

Experimental Data

Method: X-RAY DIFFRACTION
Resolution: 1.20 Å
R-Value Free: 0.153 (Depositor), 0.157 (DCC)
R-Value Work: 0.134 (Depositor)
R-Value Observed: 0.135 (Depositor)

Space Group: P 2₁ 2₁ 2₁

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 34.041	α = 90
b = 58.974	β = 90
c = 104.954	γ = 90

Software Package:

Software Name	Purpose
PHENIX	refinement
HKL-2000	data reduction
SCALEPACK	data scaling
PHENIX	phasing

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2020-12-09

Deposition Author(s):

Sacchettini, J.C.

Funding Organization	Location	Grant Number
National Institutes of Health/National Human Genome Research Institute (NIH/NHGRI)	United States	--

Revision History (Full details and data files)

Version 1.0: 2020-12-09
Type: Initial release
Version 1.1: 2024-03-06
Changes: Data collection, Database references
