6UW1

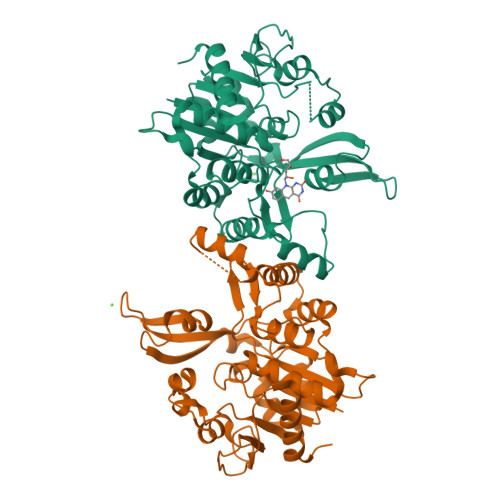

The crystal structure of FbiA from Mycobacterium Smegmatis, Fo bound form


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.21 Å
  • R-Value Free: 0.245
  • R-Value Work: 0.184
  • R-Value Observed: 0.188

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report

Currently 6UW1 does not have a validation slider image.


This is version 1.3 of the entry. See complete history


Literature

Cellular and Structural Basis of Synthesis of the Unique Intermediate Dehydro-F420-0 in Mycobacteria.

Grinter, R.Ney, B.Brammananth, R.Barlow, C.K.Cordero, P.R.F.Gillett, D.L.Izore, T.Cryle, M.J.Harold, L.K.Cook, G.M.Taiaroa, G.Williamson, D.A.Warden, A.C.Oakeshott, J.G.Taylor, M.C.Crellin, P.K.Jackson, C.J.Schittenhelm, R.B.Coppel, R.L.Greening, C.

(2020) mSystems 5

  • DOI: https://doi.org/10.1128/mSystems.00389-20
  • Primary Citation of Related Structures:
    6UVX, 6UW1, 6UW3, 6UW5, 6UW7

  • PubMed Abstract:

    F 420 is a low-potential redox cofactor used by diverse bacteria and archaea. In mycobacteria, this cofactor has multiple roles, including adaptation to redox stress, cell wall biosynthesis, and activation of the clinical antitubercular prodrugs pretomanid and delamanid. A recent biochemical study proposed a revised biosynthesis pathway for F 420 in mycobacteria; it was suggested that phosphoenolpyruvate served as a metabolic precursor for this pathway, rather than 2-phospholactate as long proposed, but these findings were subsequently challenged. In this work, we combined metabolomic, genetic, and structural analyses to resolve these discrepancies and determine the basis of F 420 biosynthesis in mycobacterial cells. We show that, in whole cells of Mycobacterium smegmatis , phosphoenolpyruvate rather than 2-phospholactate stimulates F 420 biosynthesis. Analysis of F 420 biosynthesis intermediates present in M. smegmatis cells harboring genetic deletions at each step of the biosynthetic pathway confirmed that phosphoenolpyruvate is then used to produce the novel precursor compound dehydro-F 420 -0. To determine the structural basis of dehydro-F 420 -0 production, we solved high-resolution crystal structures of the enzyme responsible (FbiA) in apo-, substrate-, and product-bound forms. These data show the essential role of a single divalent cation in coordinating the catalytic precomplex of this enzyme and demonstrate that dehydro-F 420 -0 synthesis occurs through a direct substrate transfer mechanism. Together, these findings resolve the biosynthetic pathway of F 420 in mycobacteria and have significant implications for understanding the emergence of antitubercular prodrug resistance. IMPORTANCE Mycobacteria are major environmental microorganisms and cause many significant diseases, including tuberculosis. Mycobacteria make an unusual vitamin-like compound, F 420 , and use it to both persist during stress and resist antibiotic treatment. Understanding how mycobacteria make F 420 is important, as this process can be targeted to create new drugs to combat infections like tuberculosis. In this study, we show that mycobacteria make F 420 in a way that is different from other bacteria. We studied the molecular machinery that mycobacteria use to make F 420 , determining the chemical mechanism for this process and identifying a novel chemical intermediate. These findings also have clinical relevance, given that two new prodrugs for tuberculosis treatment are activated by F 420 .


  • Organizational Affiliation

    School of Biological Sciences, Monash University, Clayton, VIC, Australia rhys.grinter@monash.edu chris.greening@monash.edu.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Phosphoenolpyruvate transferaseA [auth B],
B [auth A]
327Mycolicibacterium smegmatis MC2 155Mutation(s): 0
Gene Names: fbiAMSMEG_1830MSMEI_1787
EC: 2.7.8.28
UniProt
Find proteins for A0QTG2 (Mycolicibacterium smegmatis (strain ATCC 700084 / mc(2)155))
Explore A0QTG2
Go to UniProtKB:  A0QTG2
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0QTG2
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 2 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
FO1 (Subject of Investigation/LOI)
Query on FO1

Download Ideal Coordinates CCD File
C [auth B]1-deoxy-1-(8-hydroxy-2,4-dioxo-3,4-dihydropyrimido[4,5-b]quinolin-10(2H)-yl)-D-ribitol
C16 H17 N3 O7
AUEILLWDYUBWCM-XQQFMLRXSA-N
CA
Query on CA

Download Ideal Coordinates CCD File
D [auth B],
E [auth A]
CALCIUM ION
Ca
BHPQYMZQTOCNFJ-UHFFFAOYSA-N
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.21 Å
  • R-Value Free: 0.245
  • R-Value Work: 0.184
  • R-Value Observed: 0.188
  • Space Group: P 1 21 1
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 46.065α = 90
b = 73.843β = 94.91
c = 91.699γ = 90
Software Package:
Software NamePurpose
PHENIXrefinement
PDB_EXTRACTdata extraction
XDSdata reduction
Aimlessdata scaling
PHENIXphasing

Structure Validation

View Full Validation Report

Currently 6UW1 does not have a validation slider image.



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
National Health and Medical Research Council (NHMRC, Australia)AustraliaAPP1178715
National Health and Medical Research Council (NHMRC, Australia)AustraliaAPP1142699
National Health and Medical Research Council (NHMRC, Australia)AustraliaAPP1139832

Revision History  (Full details and data files)

  • Version 1.0: 2020-05-13
    Type: Initial release
  • Version 1.1: 2020-05-20
    Changes: Author supporting evidence, Database references, Structure summary
  • Version 1.2: 2020-06-03
    Changes: Database references
  • Version 1.3: 2023-10-11
    Changes: Data collection, Database references, Derived calculations, Refinement description
