6T2U

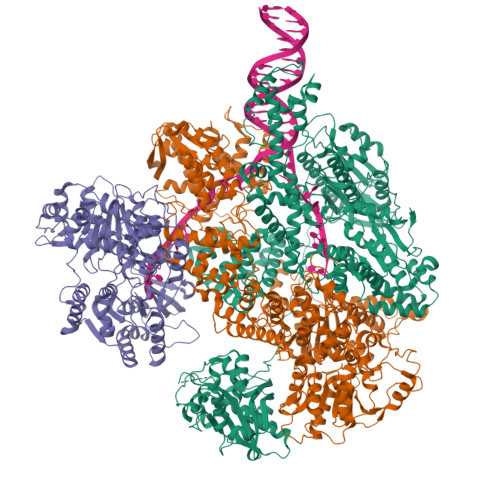

Cryo-EM structure of the RecBCD in complex with Chi-minus2 substrate


Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 3.60 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


This is version 1.2 of the entry. See complete history


Literature

A conformational switch in response to Chi converts RecBCD from phage destruction to DNA repair.

Cheng, K.Wilkinson, M.Chaban, Y.Wigley, D.B.

(2020) Nat Struct Mol Biol 27: 71-77

  • DOI: https://doi.org/10.1038/s41594-019-0355-2
  • Primary Citation of Related Structures:
    6SJB, 6SJE, 6SJF, 6SJG, 6T2U, 6T2V

  • PubMed Abstract:

    The RecBCD complex plays key roles in phage DNA degradation, CRISPR array acquisition (adaptation) and host DNA repair. The switch between these roles is regulated by a DNA sequence called Chi. We report cryo-EM structures of the Escherichia coli RecBCD complex bound to several different DNA forks containing a Chi sequence, including one in which Chi is recognized and others in which it is not. The Chi-recognized structure shows conformational changes in regions of the protein that contact Chi and reveals a tortuous path taken by the DNA. Sequence specificity arises from interactions with both the RecC subunit and the sequence itself. These structures provide molecular details for how Chi is recognized and insights into the changes that occur in response to Chi binding that switch RecBCD from bacteriophage destruction and CRISPR spacer acquisition to constructive host DNA repair.


  • Organizational Affiliation

    Section of Structural Biology, Department of Infectious Disease, Faculty of Medicine, Imperial College London, London, UK.


Macromolecules

Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
RecBCD enzyme subunit RecBA [auth B]1,181Escherichia coliMutation(s): 1
Gene Names: recBiorrorAb2820JW2788
EC: 3.1.11.5 (PDB Primary Data), 5.6.2.4 (UniProt)
UniProt
Find proteins for P08394 (Escherichia coli (strain K12))
Explore P08394
Go to UniProtKB:  P08394
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP08394
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage
RecBCD enzyme subunit RecCB [auth C]1,122Escherichia coliMutation(s): 0
Gene Names: recCb2822JW2790
EC: 3.1.11.5
UniProt
Find proteins for P07648 (Escherichia coli (strain K12))
Explore P07648
Go to UniProtKB:  P07648
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP07648
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 3
MoleculeChains Sequence LengthOrganismDetailsImage
RecBCD enzyme subunit RecDC [auth D]608Escherichia coliMutation(s): 0
Gene Names: recDhopEb2819JW2787
EC: 3.1.11.5 (PDB Primary Data), 5.6.2.3 (UniProt)
UniProt
Find proteins for P04993 (Escherichia coli (strain K12))
Explore P04993
Go to UniProtKB:  P04993
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP04993
Sequence Annotations
Expand
  • Reference Sequence
Find similar nucleic acids by:  (by identity cutoff)  |  3D Structure
Entity ID: 4
MoleculeChains LengthOrganismImage
DNA (Chi-minus2)D [auth X]83synthetic construct
Sequence Annotations
Expand
  • Reference Sequence
Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 3.60 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE
EM Software:
TaskSoftware PackageVersion
RECONSTRUCTIONRELION3
MODEL REFINEMENTPHENIX1.12

Structure Validation

View Full Validation Report



Entry History

Deposition Data

Revision History  (Full details and data files)

  • Version 1.0: 2020-01-01
    Type: Initial release
  • Version 1.1: 2020-01-22
    Changes: Database references
  • Version 1.2: 2024-05-22
    Changes: Data collection, Database references, Refinement description
