6RIG

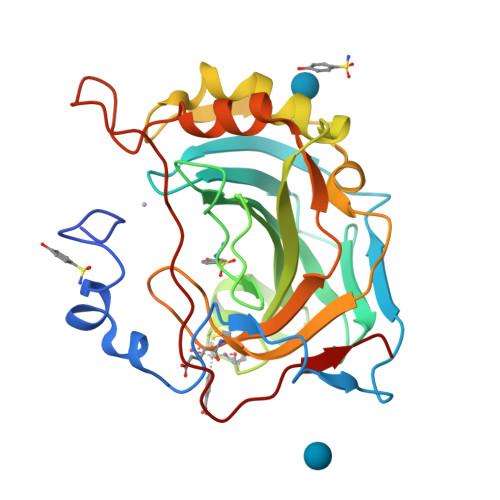

Human Carbonic Anhydrase II in complex with 4-Hydroxybenzenesulfonamide


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.00 Å
  • R-Value Free: 0.136
  • R-Value Work: 0.119
  • R-Value Observed: 0.119

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment


This is version 1.2 of the entry. See complete history


Literature

Human Carbonic Anhydrase II in complex with 4-Hydroxybenzenesulfonamide

Gloeckner, S.Heine, A.Klebe, G.

To be published.

Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Carbonic anhydrase 2265Homo sapiensMutation(s): 0
Gene Names: CA2
EC: 4.2.1.1 (PDB Primary Data), 4.2.1.69 (UniProt)
UniProt & NIH Common Fund Data Resources
Find proteins for P00918 (Homo sapiens)
Explore P00918
Go to UniProtKB:  P00918
PHAROS:  P00918
GTEx:  ENSG00000104267
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP00918
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 6 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
BE7
Query on BE7

Download Ideal Coordinates CCD File
E [auth A](4-CARBOXYPHENYL)(CHLORO)MERCURY
C7 H5 Cl Hg O2
YFZOUMNUDGGHIW-UHFFFAOYSA-M
HG
Query on HG

Download Ideal Coordinates CCD File
C [auth A],
D [auth A]
MERCURY (II) ION
Hg
BQPIGGFYSBELGY-UHFFFAOYSA-N
BGC
Query on BGC

Download Ideal Coordinates CCD File
G [auth A]beta-D-glucopyranose
C6 H12 O6
WQZGKKKJIJFFOK-VFUOTHLCSA-N
GLC
Query on GLC

Download Ideal Coordinates CCD File
F [auth A]alpha-D-glucopyranose
C6 H12 O6
WQZGKKKJIJFFOK-DVKNGEFBSA-N
K4N (Subject of Investigation/LOI)
Query on K4N

Download Ideal Coordinates CCD File
H [auth A],
I [auth A],
J [auth A]
4-oxidanylbenzenesulfonamide
C6 H7 N O3 S
DIRCLGLKRZLKHG-UHFFFAOYSA-N
ZN
Query on ZN

Download Ideal Coordinates CCD File
B [auth A]ZINC ION
Zn
PTFCDOFLOPIGGS-UHFFFAOYSA-N
Binding Affinity Annotations
IDSourceBinding Affinity
K4N BindingDB:  6RIG Ki: min: 2, max: 89 (nM) from 3 assay(s)
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.00 Å
  • R-Value Free: 0.136
  • R-Value Work: 0.119
  • R-Value Observed: 0.119
  • Space Group: P 1 21 1
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 42.418α = 90
b = 41.49β = 104.61
c = 72.141γ = 90
Software Package:
Software NamePurpose
PHENIXrefinement
XDSdata reduction
XDSdata scaling
PHASERphasing
Cootmodel building

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History

Deposition Data

Revision History  (Full details and data files)

  • Version 1.0: 2020-05-13
    Type: Initial release
  • Version 1.1: 2020-07-29
    Type: Remediation
    Reason: Carbohydrate remediation
    Changes: Data collection, Derived calculations, Structure summary
  • Version 1.2: 2024-01-24
    Changes: Data collection, Database references, Refinement description, Structure summary
