6OUF

Carbonic Anhydrase IX mimic complexed with benzene sulfonamide MB11-707A

• PDB DOI: https://doi.org/10.2210/pdb6OUF/pdb

• Classification: LYASE/LYASE INHIBITOR
• Organism(s): Homo sapiens
• Expression System: Escherichia coli
• Mutation(s): Yes


• Deposited: 2019-05-04 Released: 2020-05-06
• Deposition Author(s): Kota, A., McKenna, R.

---

Experimental Data Snapshot

• Method: X-RAY DIFFRACTION
• Resolution: 1.36 Å
• R-Value Free: 0.175
• R-Value Work: 0.163
• R-Value Observed: 0.163

Starting Model: experimental

Literature

Carbonic Anhydrase IX mimic complexed with ureido benzene sulfonamide MB9-561B

Kota, A., McKenna, R.

To be published.

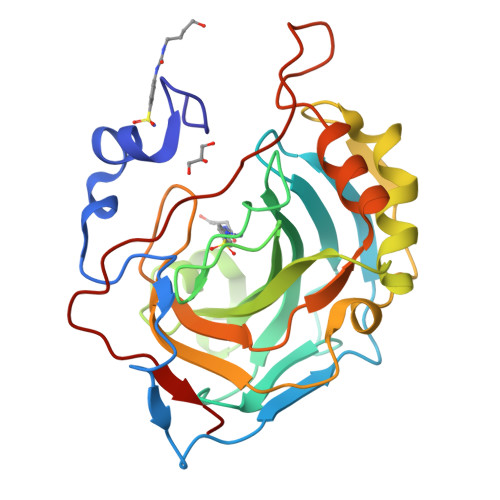

Biological Assembly 1

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Monomer - A1

Biological assembly 1 assigned by authors and generated by PISA (software)

Macromolecule Content

• Total Structure Weight: 29.58 kDa
• Atom Count: 2,391
• Modelled Residue Count: 257
• Deposited Residue Count: 257
• Unique protein chains: 1

Macromolecules

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
Carbonic anhydrase 2	A	257	Homo sapiens	Mutation(s): 7  Gene Names: CA2 EC: 4.2.1.1 (PDB Primary Data), 4.2.1.69 (UniProt)
UniProt & NIH Common Fund Data Resources
Find proteins for P00918 (Homo sapiens) Explore P00918  Go to UniProtKB:  P00918
PHAROS:  P00918 GTEx:  ENSG00000104267

Small Molecules

Ligands 3 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram
N7A (Subject of Investigation/LOI)	C [auth A], D [auth A]	4-{[(4-hydroxybutyl)carbamoyl]amino}benzene-1-sulfonamide C11 H17 N3 O4 S ZYHIIICNASUCRW-UHFFFAOYSA-N
GOL	E [auth A]	GLYCEROL C3 H8 O3 PEDCQBHIVMGVHV-UHFFFAOYSA-N
ZN	B [auth A]	ZINC ION Zn PTFCDOFLOPIGGS-UHFFFAOYSA-N

Experimental Data & Validation

Experimental Data

• Method: X-RAY DIFFRACTION
• Resolution: 1.36 Å
• R-Value Free: 0.175
• R-Value Work: 0.163
• R-Value Observed: 0.163
• Space Group: P 1 2₁ 1

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 42.191	α = 90
b = 41.25	β = 103.99
c = 72.05	γ = 90

Software Package:

Software Name	Purpose
Aimless	data scaling
PHENIX	refinement
PDB_EXTRACT	data extraction
XDS	data reduction
PHENIX	phasing

Structure Validation

Entry History

Deposition Data

• Released Date: 2020-05-06
Deposition Author(s): Kota, A., McKenna, R.

Revision History

• Version 1.0: 2020-05-06
  Type: Initial release

• Version 1.1: 2023-10-11
  Changes: Data collection, Database references, Refinement description
