6J2K

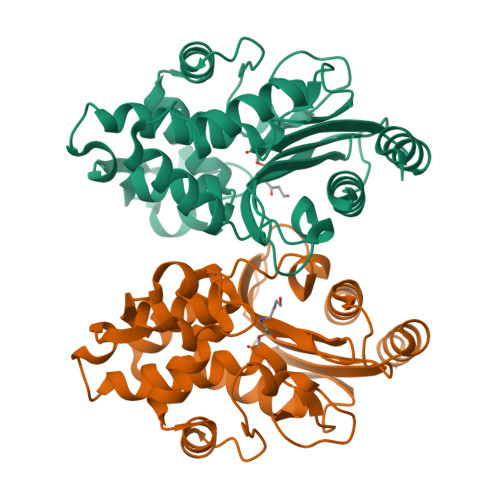

CTX-M-64 beta-lactamase S130T clavulanic acid complex


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.44 Å
  • R-Value Free: 0.178
  • R-Value Work: 0.148
  • R-Value Observed: 0.149

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment


This is version 1.2 of the entry. See complete history


Literature

Structural Insight into the Mechanism of Inhibitor Resistance in CTX-M-199, a CTX-M-64 Variant Carrying the S130T Substitution.

Cheng, Q.Xu, C.Chai, J.Zhang, R.Wai Chi Chan, E.Chen, S.

(2020) ACS Infect Dis 6: 577-587

  • DOI: https://doi.org/10.1021/acsinfecdis.9b00345
  • Primary Citation of Related Structures:
    5ZB7, 6ITY, 6J25, 6J2B, 6J2K, 6J2O

  • PubMed Abstract:

    The smart design of β-lactamase inhibitors allowed us to combat extended-spectrum β-lactamase (ESBL)-producing organisms for many years without developing resistance to these inhibitors. However, novel resistant variants have emerged recently, and notable examples are the CTX-M-190 and CTX-M-199 variants, which carried a S 130 T amino acid substitution and exhibited resistance to inhibitors such as sulbactam and tazobactam. Using mass spectrometric and crystallographic approaches, this study depicted the mechanisms of inhibitor resistance. Our data showed that CTX-M-64 (S 130 T) did not cause any conformational change or exert any effect on its ability to hydrolyze β-lactam substrates. However, binding of sulbactam, but not clavulanic acid, to the active site of CTX-M-64 (S 130 T) led to the conformational changes in such active site, which comprised the key residues involved in substrate catalysis, namely, Thr 130 , Lys 73 , Lys 234 , Asn 104 , and Asn 132 . This conformational change weakened the binding of the sulbactam trans -enamine intermediate (TSL) to the active site and rendered the formation of the inhibitor-enzyme complex, which features a covalent acrylic acid (AKR)-T 130 bond, inefficient, thereby resulting in inhibitor resistance in CTX-M-64 (S 130 T). Understanding the mechanisms of inhibitor resistance provided structural insight for the future development of new inhibitors against inhibitor-resistant β-lactamases.


  • Organizational Affiliation

    State Key Lab of Chemical Biology and Drug Discovery, Department of Applied Biology and Chemical Technology, The Hong Kong Polytechnic University, Hung Hom, Kowloon, Hong Kong.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Beta-lactamase
A, B
287Escherichia coliMutation(s): 1
Gene Names: blaCTX-M-64
EC: 3.5.2.6
UniProt
Find proteins for C8CP57 (Escherichia coli)
Explore C8CP57
Go to UniProtKB:  C8CP57
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupC8CP57
Sequence Annotations
Expand
  • Reference Sequence
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.44 Å
  • R-Value Free: 0.178
  • R-Value Work: 0.148
  • R-Value Observed: 0.149
  • Space Group: P 1 21 1
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 45.16α = 90
b = 105.54β = 101.09
c = 47.59γ = 90
Software Package:
Software NamePurpose
REFMACrefinement
xia2data reduction
Aimlessdata scaling
PHASERphasing

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History

Deposition Data

Revision History  (Full details and data files)

  • Version 1.0: 2019-10-30
    Type: Initial release
  • Version 1.1: 2020-05-13
    Changes: Database references, Structure summary
  • Version 1.2: 2023-11-22
    Changes: Data collection, Database references, Refinement description
