6IXM | pdb_00006ixm

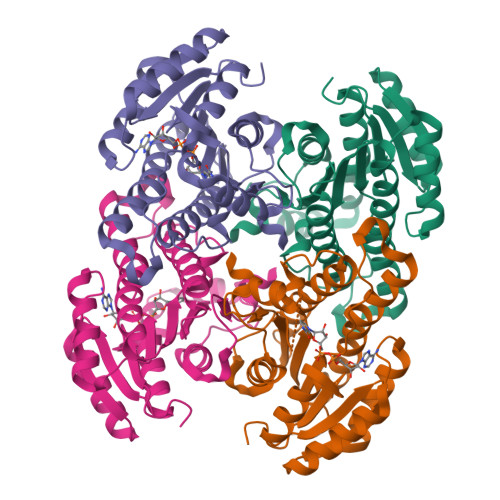

Crystal structure of the ketone reductase ChKRED20 from the genome of Chryseobacterium sp. CA49 complexed with NAD


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.60 Å
  • R-Value Free:
    0.192 (Depositor), 0.190 (DCC)
  • R-Value Work:
    0.164 (Depositor), 0.160 (DCC)
  • R-Value Observed:
    0.165 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment

Created with Raphaël 2.3.0Worse 01 BetterLigand structure goodness of fit to experimental dataBest fitted NADClick on this verticalbar to view details

This is version 1.1 of the entry. See complete history


Literature

Structure-guided engineering of ChKRED20 from Chryseobacterium sp. CA49 for asymmetric reduction of aryl ketoesters.

Li, T.B.Zhao, F.J.Liu, Z.Jin, Y.Liu, Y.Pei, X.Q.Zhang, Z.G.Wang, G.Wu, Z.L.

(2019) Enzyme Microb Technol 125: 29-36

  • DOI: https://doi.org/10.1016/j.enzmictec.2019.03.001
  • Primary Citation of Related Structures:
    6IXM

  • PubMed Abstract:

    ChKRED20 is a robust NADH-dependent ketoreductase identified from the genome of Chryseobacterium sp. CA49 that can use 2-propanol as the ultimate reducing agent. The wild-type can reduce over 100 g/l ketones for some pharmaceutical relevant substrates, exhibiting a remarkable potential for industrial application. In this work, to overcome the limitation of ChKRED20 to aryl ketoesters, we first refined the X-ray crystal structure of ChKRED20/NAD + complex at a resolution of 1.6 Å, and then performed three rounds of iterative saturation mutagenesis at critical amino acid sites to reshape the active cavity of the enzyme. For methyl 2-oxo-2-phenylacetate and ethyl 3-oxo-3-phenylpropanoate, several gain-of-activity mutants were achieved, and for ethyl 2-oxo-4-phenylbutanoate, improved mutants were achieved with k cat /K m increasing to 196-fold of the wild-type. All three substrates were completely reduced at 100 g/l loading catalyzed with selected ChKRED20 mutants, and deliver the corresponding chiral alcohols with >90% isolated yield and 97 - >99%ee.


  • Organizational Affiliation

    Key Laboratory of Environmental and Applied Microbiology, Chengdu Institute of Biology, Chinese Academy of Sciences, Chengdu, 610041, China; Environmental Microbiology Key Laboratory of Sichuan Province, Chengdu, 610041, China; University of Chinese Academy of Sciences, Beijing, 100049, China.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Short-chain dehydrogenase reductase
A, B, C, D
249Chryseobacterium sp. CA49Mutation(s): 0
UniProt
Find proteins for X2D0L0 (Chryseobacterium sp. CA49)
Explore X2D0L0
Go to UniProtKB:  X2D0L0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupX2D0L0
Sequence Annotations
Expand
  • Reference Sequence
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.60 Å
  • R-Value Free:  0.192 (Depositor), 0.190 (DCC)
  • R-Value Work:  0.164 (Depositor), 0.160 (DCC)
  • R-Value Observed: 0.165 (Depositor)
Space Group: P 21 21 21
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 63.891α = 90
b = 113.98β = 90
c = 131.819γ = 90
Software Package:
Software NamePurpose
PHENIXrefinement
HKL-2000data reduction
HKL-2000data scaling
PHASERphasing

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment

Created with Raphaël 2.3.0Worse 01 BetterLigand structure goodness of fit to experimental dataBest fitted NADClick on this verticalbar to view details

Entry History

Deposition Data

Revision History  (Full details and data files)

  • Version 1.0: 2019-04-03
    Type: Initial release
  • Version 1.1: 2023-11-22
    Changes: Data collection, Database references, Refinement description
