6BR1

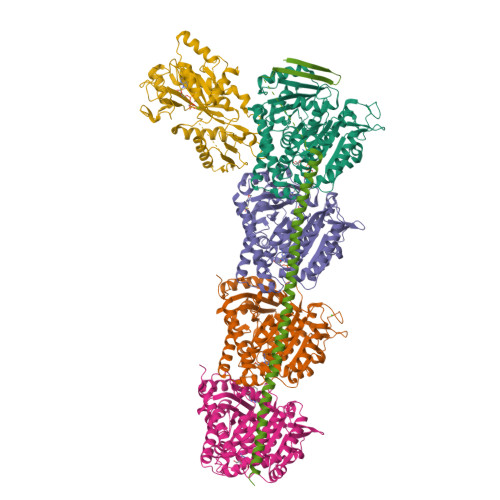

Tubulin-RB3_SLD-TTL in complex with heterocyclic pyrimidine compound 4a


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.30 Å
  • R-Value Free: 0.235
  • R-Value Work: 0.194
  • R-Value Observed: 0.196

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment


This is version 1.3 of the entry. See complete history


Literature

Heterocyclic-Fused Pyrimidines as Novel Tubulin Polymerization Inhibitors Targeting the Colchicine Binding Site: Structural Basis and Antitumor Efficacy.

Banerjee, S.Arnst, K.E.Wang, Y.Kumar, G.Deng, S.Yang, L.Li, G.B.Yang, J.White, S.W.Li, W.Miller, D.D.

(2018) J Med Chem 61: 1704-1718

  • DOI: https://doi.org/10.1021/acs.jmedchem.7b01858
  • Primary Citation of Related Structures:
    6BR1, 6BRF, 6BRY, 6BS2

  • PubMed Abstract:

    We report the design, synthesis, and biological evaluation of heterocyclic-fused pyrimidines as tubulin polymerization inhibitors targeting the colchicine binding site with significantly improved therapeutic index. Additionally, for the first time, we report high-resolution X-ray crystal structures for the best compounds in this scaffold, 4a, 4b, 6a, and 8b. These structures not only confirm their direct binding to the colchicine site in tubulin and reveal their detailed molecular interactions but also contrast the previously published proposed binding mode. Compounds 4a and 6a significantly inhibited tumor growth in an A375 melanoma xenograft model and were accompanied by elevated levels of apoptosis and disruption of tumor vasculature. Finally, we demonstrated that compound 4a significantly overcame clinically relevant multidrug resistance in a paclitaxel resistant PC-3/TxR prostate cancer xenograft model. Collectively, these studies provide preclinical and structural proof of concept to support the continued development of this scaffold as a new generation of tubulin inhibitors.


  • Organizational Affiliation

    Department of Pharmaceutical Sciences, College of Pharmacy, University of Tennessee Health Science Center , Memphis, Tennessee 38163, United States.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Tubulin alpha-1B chain
A, C
450Sus scrofaMutation(s): 0
EC: 3.6.5
UniProt
Find proteins for Q2XVP4 (Sus scrofa)
Explore Q2XVP4
Go to UniProtKB:  Q2XVP4
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ2XVP4
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage
Tubulin beta-2B chain
B, D
445Sus scrofaMutation(s): 0
UniProt
Find proteins for P02554 (Sus scrofa)
Explore P02554
Go to UniProtKB:  P02554
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP02554
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 3
MoleculeChains Sequence LengthOrganismDetailsImage
Stathmin-4143Homo sapiensMutation(s): 0
Gene Names: STMN4
UniProt & NIH Common Fund Data Resources
Find proteins for Q9H169 (Homo sapiens)
Explore Q9H169
Go to UniProtKB:  Q9H169
PHAROS:  Q9H169
GTEx:  ENSG00000015592
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9H169
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 4
MoleculeChains Sequence LengthOrganismDetailsImage
Tubulin tyrosine ligase384Gallus gallusMutation(s): 0
Gene Names: TTL
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 7 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
GTP
Query on GTP

Download Ideal Coordinates CCD File
G [auth A],
O [auth C]
GUANOSINE-5'-TRIPHOSPHATE
C10 H16 N5 O14 P3
XKMLYUALXHKNFT-UUOKFMHZSA-N
ACP
Query on ACP

Download Ideal Coordinates CCD File
U [auth F]PHOSPHOMETHYLPHOSPHONIC ACID ADENYLATE ESTER
C11 H18 N5 O12 P3
UFZTZBNSLXELAL-IOSLPCCCSA-N
GDP
Query on GDP

Download Ideal Coordinates CCD File
J [auth B],
R [auth D]
GUANOSINE-5'-DIPHOSPHATE
C10 H15 N5 O11 P2
QGWNDRXFNXRZMB-UUOKFMHZSA-N
E3Y (Subject of Investigation/LOI)
Query on E3Y

Download Ideal Coordinates CCD File
N [auth B],
S [auth D]
2-chloro-4-(6-methoxy-3,4-dihydroquinolin-1(2H)-yl)pyrido[2,3-d]pyrimidine
C17 H15 Cl N4 O
HAZYKJFAXKILAD-UHFFFAOYSA-N
MES
Query on MES

Download Ideal Coordinates CCD File
K [auth B],
L [auth B]
2-(N-MORPHOLINO)-ETHANESULFONIC ACID
C6 H13 N O4 S
SXGZJKUKBWWHRA-UHFFFAOYSA-N
CA
Query on CA

Download Ideal Coordinates CCD File
H [auth A],
P [auth C]
CALCIUM ION
Ca
BHPQYMZQTOCNFJ-UHFFFAOYSA-N
MG
Query on MG

Download Ideal Coordinates CCD File
I [auth A],
M [auth B],
Q [auth C],
T [auth F]
MAGNESIUM ION
Mg
JLVVSXFLKOJNIY-UHFFFAOYSA-N
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.30 Å
  • R-Value Free: 0.235
  • R-Value Work: 0.194
  • R-Value Observed: 0.196
  • Space Group: P 21 21 21
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 104.927α = 90
b = 157.613β = 90
c = 180.989γ = 90
Software Package:
Software NamePurpose
PHENIXrefinement
HKL-2000data reduction
HKL-2000data scaling
PDB_EXTRACTdata extraction
PHASERphasing

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
National Institutes of Health/National Cancer Institute (NIH/NCI)United StatesR01CA148706

Revision History  (Full details and data files)

  • Version 1.0: 2018-06-27
    Type: Initial release
  • Version 1.1: 2019-02-20
    Changes: Author supporting evidence, Data collection
  • Version 1.2: 2019-12-04
    Changes: Author supporting evidence
  • Version 1.3: 2024-03-13
    Changes: Data collection, Database references, Derived calculations, Refinement description
