5OUS

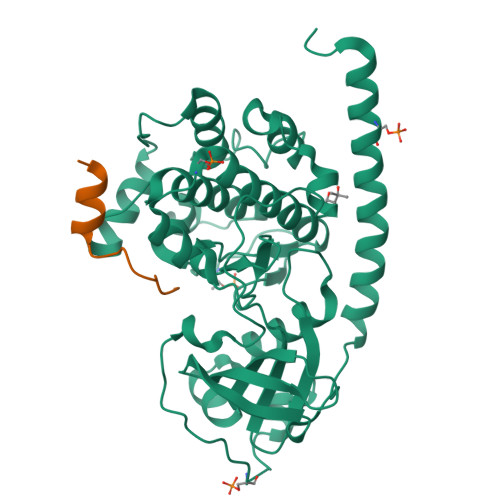

Crystal Structure of the Protein-Kinase A catalytic subunit from Criteculus Griseus in complex with compounds RKp193

• PDB DOI: https://doi.org/10.2210/pdb5OUS/pdb

• Classification: TRANSFERASE
• Organism(s): Cricetulus griseus
• Expression System: Escherichia coli 'BL21-Gold(DE3)pLysS AG
• Mutation(s): No


• Deposited: 2017-08-24 Released: 2018-09-05
• Deposition Author(s): Mueller, J.M., Heine, A., Klebe, G.
• Funding Organization(s): Loewe-Corporation

---

Experimental Data Snapshot

• Method: X-RAY DIFFRACTION
• Resolution: 2.21 Å
• R-Value Free: 0.233
• R-Value Work: 0.194
• R-Value Observed: 0.196

Literature

Conceptional Design of Self-Assembling Bisubstrate-like Inhibitors of Protein Kinase A Resulting in a Boronic Acid Glutamate Linkage

Mueller, J.M., Kirschner, R., Geyer, A., Klebe, G.

(2019) ACS Omega

• DOI: https://doi.org/10.1021/acsomega.8b02364

Biological Assembly 1

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Hetero 2-mer - A1B1

Biological assembly 1 assigned by authors and generated by PISA (software)

Macromolecule Content

• Total Structure Weight: 43.26 kDa
• Atom Count: 2,913
• Modelled Residue Count: 368
• Deposited Residue Count: 371
• Unique protein chains: 2

Macromolecules

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
cAMP-dependent protein kinase catalytic subunit alpha	A	353	Cricetulus griseus	Mutation(s): 0  Gene Names: PRKACA EC: 2.7.11.11
UniProt
Find proteins for P25321 (Cricetulus griseus) Explore P25321  Go to UniProtKB:  P25321

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image
cAMP-dependent protein kinase inhibitor	B	18	Cricetulus griseus	Mutation(s): 0
UniProt
Find proteins for G3HK48 (Cricetulus griseus) Explore G3HK48  Go to UniProtKB:  G3HK48

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram
MPD	C [auth A]	(4S)-2-METHYL-2,4-PENTANEDIOL C6 H14 O2 SVTBMSDMJJWYQN-YFKPBYRVSA-N

Modified Residues  2 Unique
ID	Chains	Type	Formula	2D Diagram	Parent
SEP	A	L-PEPTIDE LINKING	C3 H8 N O6 P		SER
TPO	A	L-PEPTIDE LINKING	C4 H10 N O6 P		THR

Experimental Data & Validation

Experimental Data

• Method: X-RAY DIFFRACTION
• Resolution: 2.21 Å
• R-Value Free: 0.233
• R-Value Work: 0.194
• R-Value Observed: 0.196
• Space Group: P 2₁ 2₁ 2₁

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 59.145	α = 90
b = 72.746	β = 90
c = 110.105	γ = 90

Software Package:

Software Name	Purpose
PHENIX	refinement
XDS	data reduction
XDS	data scaling
PHASER	phasing
Coot	model building

Structure Validation

Entry History & Funding Information

Deposition Data

• Released Date: 2018-09-05
Deposition Author(s): Mueller, J.M., Heine, A., Klebe, G.

---

Funding Organization	Location	Grant Number
Loewe-Corporation	Germany	--

Revision History

• Version 1.0: 2018-09-05
  Type: Initial release

• Version 1.1: 2019-05-15
  Changes: Data collection, Database references
• Version 1.2: 2024-11-20
  Changes: Data collection, Database references, Structure summary
