5NU3 | pdb_00005nu3

Crystal structure of the human bromodomain of CREBBP bound to the inhibitor XDM-CBP

• PDB DOI: https://doi.org/10.2210/pdb5NU3/pdb

• Classification: TRANSFERASE
• Organism(s): Homo sapiens
• Expression System: Escherichia coli BL21(DE3)
• Mutation(s): No


• Deposited: 2017-04-28 Released: 2017-08-16
• Deposition Author(s): Huegle, M., Wohlwend, D.
• Funding Organization(s): German Research Foundation

---

Experimental Data Snapshot

• Method: X-RAY DIFFRACTION
• Resolution: 1.75 Å
• R-Value Free:
  0.200 (Depositor), 0.200 (DCC)
• R-Value Work:
  0.168 (Depositor)
• R-Value Observed:
  0.170 (Depositor)

Starting Model: experimental

Literature

Beyond the BET Family: Targeting CBP/p300 with 4-Acyl Pyrroles.

Hugle, M., Lucas, X., Ostrovskyi, D., Regenass, P., Gerhardt, S., Einsle, O., Hau, M., Jung, M., Breit, B., Gunther, S., Wohlwend, D.

(2017) Angew Chem Int Ed Engl 56: 12476-12480

• PubMed: 28766825
• DOI: https://doi.org/10.1002/anie.201705516
• Primary Citation Related Structures:
  5LPJ, 5LPK, 5LPL, 5LPM, 5NRW, 5NU3, 5NU5


• PubMed Abstract:


  Bromodomain and extra-terminal domain (BET) inhibitors are widely used both as chemical tools to study the biological role of their targets in living organisms and as candidates for drug development against several cancer variants and human disorders. However, non-BET bromodomains such as those in p300 and CBP are less studied. XDM-CBP is a highly potent and selective inhibitor for the bromodomains of CBP and p300 derived from a pan-selective BET BRD-binding fragment. Along with X-ray crystal-structure analysis and thermodynamic profiling, XDM-CBP was used in screenings of several cancer cell lines in vitro to study its inhibitory potential on cancer cell proliferation. XDM-CBP is demonstrated to be a potent and selective CBP/p300 inhibitor that acts on specific cancer cell lines, in particular malignant melanoma, breast cancer, and leukemia.

---

Organizational Affiliation:
• Institut für Biochemie, Albert-Ludwigs-Universität Freiburg, Albertstrasse 21, 79104, Freiburg, Germany.
School of Life Sciences, Division of Biological Chemistry and Drug Discovery, University of Dundee, James Black Centre, Dow Street, Dundee, DD1 5EH, UK.
Institut für Organische Chemie, Albert-Ludwigs-Universität Freiburg, Albertstrasse 21, 79104, Freiburg, Germany.
Freiburg Institute for Advanced Studies (FRIAS), Albert-Ludwigs-Universität Freiburg, Albertstrasse 21, 79104, Freiburg, Germany.
BIOSS Centre for Biological Signalling Studies, Albert-Ludwigs-Universität Freiburg, Albertstr. 21, 79104, Freiburg, Germany.
Institut für Pharmazeutische Wissenschaften, Albert-Ludwigs-Universität Freiburg, Hermann-Herder-Strasse 9, 79104, Freiburg, Germany.

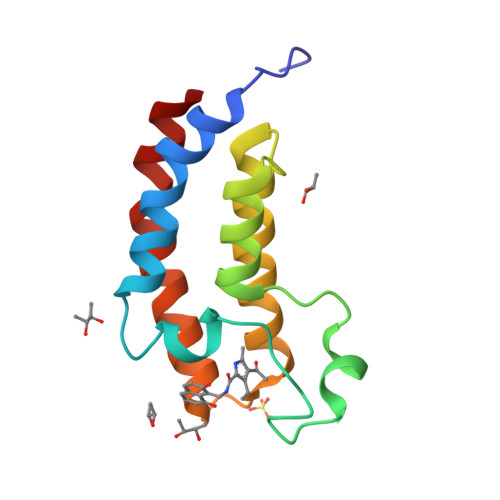

Biological Assembly 1

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Monomer - A1

Biological assembly 1 assigned by authors and generated by PISA (software)

Biological Assembly Evidence: light scattering

Macromolecule Content

• Total Structure Weight: 15.05 kDa
• Atom Count: 1,269
• Modeled Residue Count: 119
• Deposited Residue Count: 119
• Unique protein chains: 1

Macromolecules

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
CREB-binding protein	A	119	Homo sapiens	Mutation(s): 0  Gene Names: CREBBP, CBP EC: 2.3.1.48 (PDB Primary Data), 2.3.1 (UniProt)
UniProt & NIH Common Fund Data Resources
Find proteins for Q92793 (Homo sapiens) Explore Q92793  Go to UniProtKB:  Q92793
PHAROS:  Q92793 GTEx:  ENSG00000005339

Small Molecules

Ligands 3 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram
99E	B [auth A]	~{N}-[[2,8-bis(oxidanyl)naphthalen-1-yl]methyl]-4-ethanoyl-3-ethyl-5-methyl-1~{H}-pyrrole-2-carboxamide C21 H22 N2 O4 KCGVENSOXCWCNF-UHFFFAOYSA-N
SO4	G [auth A]	SULFATE ION O4 S QAOWNCQODCNURD-UHFFFAOYSA-L
BU3	C [auth A], D [auth A], E [auth A], F [auth A]	(R,R)-2,3-BUTANEDIOL C4 H10 O2 OWBTYPJTUOEWEK-QWWZWVQMSA-N

Binding Affinity Annotations
ID	Source	Binding Affinity
99E	BindingDB:  5NU3	Kd: min: 230, max: 470 (nM) from 2 assay(s)

Experimental Data & Validation

Experimental Data

• Method: X-RAY DIFFRACTION
• Resolution: 1.75 Å
• R-Value Free:  0.200 (Depositor), 0.200 (DCC)
• R-Value Work:  0.168 (Depositor)
• R-Value Observed: 0.170 (Depositor)

Space Group: P 2₁ 2₁ 2₁

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 35.86	α = 90
b = 49.24	β = 90
c = 80.51	γ = 90

Software Package:

Software Name	Purpose
PHENIX	refinement
XDS	data reduction
Aimless	data scaling
PHASER	phasing
PDB_EXTRACT	data extraction

Structure Validation

Entry History

& Funding Information

Deposition Data

• Released Date: 2017-08-16
Deposition Author(s): Huegle, M., Wohlwend, D.

---

Funding Organization	Location	Grant Number
German Research Foundation	Germany	WO 2012/1-1

Revision History

• Version 1.0: 2017-08-16
  Type: Initial release

• Version 1.1: 2017-10-11
  Changes: Database references
• Version 1.2: 2024-01-17
  Changes: Data collection, Database references, Refinement description
