5MG8

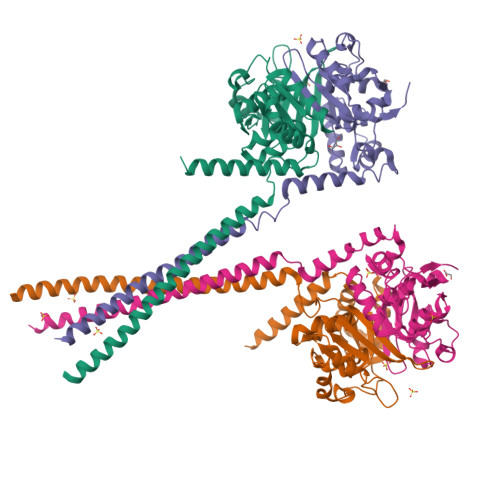

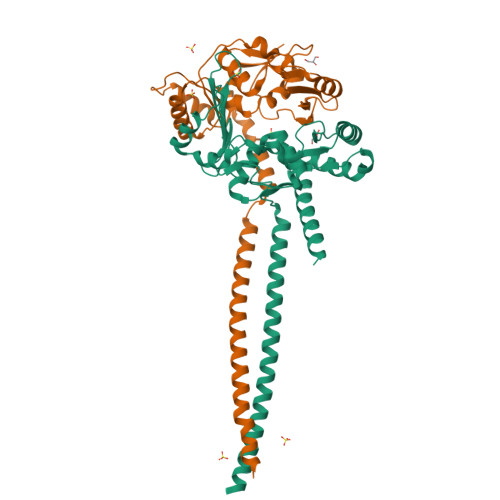

Crystal structure of the S.pombe Smc5/6 hinge domain


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.75 Å
  • R-Value Free: 0.249
  • R-Value Work: 0.209
  • R-Value Observed: 0.211

wwPDB Validation   3D Report Full Report


This is version 1.2 of the entry. See complete history


Literature

Specialized interfaces of Smc5/6 control hinge stability and DNA association.

Alt, A.Dang, H.Q.Wells, O.S.Polo, L.M.Smith, M.A.McGregor, G.A.Welte, T.Lehmann, A.R.Pearl, L.H.Murray, J.M.Oliver, A.W.

(2017) Nat Commun 8: 14011-14011

  • DOI: https://doi.org/10.1038/ncomms14011
  • Primary Citation of Related Structures:
    5MG8

  • PubMed Abstract:

    The Structural Maintenance of Chromosomes (SMC) complexes: cohesin, condensin and Smc5/6 are involved in the organization of higher-order chromosome structure-which is essential for accurate chromosome duplication and segregation. Each complex is scaffolded by a specific SMC protein dimer (heterodimer in eukaryotes) held together via their hinge domains. Here we show that the Smc5/6-hinge, like those of cohesin and condensin, also forms a toroidal structure but with distinctive subunit interfaces absent from the other SMC complexes; an unusual 'molecular latch' and a functional 'hub'. Defined mutations in these interfaces cause severe phenotypic effects with sensitivity to DNA-damaging agents in fission yeast and reduced viability in human cells. We show that the Smc5/6-hinge complex binds preferentially to ssDNA and that this interaction is affected by both 'latch' and 'hub' mutations, suggesting a key role for these unique features in controlling DNA association by the Smc5/6 complex.


  • Organizational Affiliation

    Cancer Research UK DNA Repair Enzymes Group, Genome Damage and Stability Centre, School of Life Sciences, University of Sussex, Falmer, BN1 9RQ, UK.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Structural maintenance of chromosomes protein 5
A, C
347Schizosaccharomyces pombeMutation(s): 0
Gene Names: smc5spr18SPAC14C4.02c
UniProt
Find proteins for O13710 (Schizosaccharomyces pombe (strain 972 / ATCC 24843))
Explore O13710
Go to UniProtKB:  O13710
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupO13710
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage
Structural maintenance of chromosomes protein 6
B, D
294Schizosaccharomyces pombeMutation(s): 0
Gene Names: smc6rad18SPCC5E4.06
UniProt
Find proteins for P53692 (Schizosaccharomyces pombe (strain 972 / ATCC 24843))
Explore P53692
Go to UniProtKB:  P53692
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP53692
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 2 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
SO4
Query on SO4

Download Ideal Coordinates CCD File
E [auth A]
F [auth A]
H [auth B]
J [auth C]
K [auth C]
E [auth A],
F [auth A],
H [auth B],
J [auth C],
K [auth C],
L [auth C],
M [auth C],
N [auth D],
O [auth D]
SULFATE ION
O4 S
QAOWNCQODCNURD-UHFFFAOYSA-L
GOL
Query on GOL

Download Ideal Coordinates CCD File
G [auth A],
I [auth B],
P [auth D],
Q [auth D]
GLYCEROL
C3 H8 O3
PEDCQBHIVMGVHV-UHFFFAOYSA-N
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.75 Å
  • R-Value Free: 0.249
  • R-Value Work: 0.209
  • R-Value Observed: 0.211
  • Space Group: C 2 2 21
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 172.564α = 90
b = 196.455β = 90
c = 122.44γ = 90
Software Package:
Software NamePurpose
PHENIXrefinement
XDSdata reduction
Aimlessdata scaling
SHELXCDphasing

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Medical Research Council (United Kingdom)United KingdomG1001668
Cancer Research UKUnited KingdomC302/A14532

Revision History  (Full details and data files)

  • Version 1.0: 2017-02-08
    Type: Initial release
  • Version 1.1: 2017-09-13
    Changes: Author supporting evidence
  • Version 1.2: 2024-05-08
    Changes: Data collection, Database references
