5JMZ

Carbonic Anhydrase IX-mimic IN Complex WITH U-NO2

• PDB DOI: https://doi.org/10.2210/pdb5JMZ/pdb

• Classification: LYASE/LYASE INHIBITOR
• Organism(s): Homo sapiens
• Expression System: Escherichia coli K-12
• Mutation(s): No


• Deposited: 2016-04-29 Released: 2017-05-03
• Deposition Author(s): McKenna, R., Mboge, M.Y., Mahon, B.P.
• Funding Organization(s): National Institutes of Health/National Cancer Institute (NIH/NCI)

---

Experimental Data Snapshot

• Method: X-RAY DIFFRACTION
• Resolution: 1.90 Å
• R-Value Free: 0.195
• R-Value Work: 0.162
• R-Value Observed: 0.163

Literature

Carbonic Anhydrase IX-mimic IN Complex WITH U-NO2

McKenna, R., Mboge, M.Y., Mahon, B.P.

To be published.

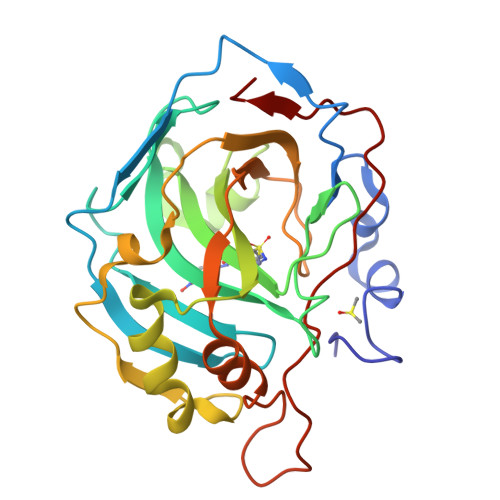

Biological Assembly 1

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Monomer - A1

Biological assembly 1 assigned by authors and generated by PISA (software)

Macromolecule Content

• Total Structure Weight: 29.32 kDa
• Atom Count: 2,244
• Modelled Residue Count: 257
• Deposited Residue Count: 257
• Unique protein chains: 1

Macromolecules

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
Carbonic anhydrase 2	A	257	Homo sapiens	Mutation(s): 0  Gene Names: CA2 EC: 4.2.1.1 (PDB Primary Data), 4.2.1.69 (UniProt)
UniProt & NIH Common Fund Data Resources
Find proteins for P00918 (Homo sapiens) Explore P00918  Go to UniProtKB:  P00918
PHAROS:  P00918 GTEx:  ENSG00000104267

Small Molecules

Ligands 3 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram
AYX	D [auth A]	4-{[(3-nitrophenyl)carbamoyl]amino}benzenesulfonamide C13 H12 N4 O5 S MTGVDZIMBQRGPD-UHFFFAOYSA-N
DMS	C [auth A]	DIMETHYL SULFOXIDE C2 H6 O S IAZDPXIOMUYVGZ-UHFFFAOYSA-N
ZN	B [auth A]	ZINC ION Zn PTFCDOFLOPIGGS-UHFFFAOYSA-N

Experimental Data & Validation

Experimental Data

• Method: X-RAY DIFFRACTION
• Resolution: 1.90 Å
• R-Value Free: 0.195
• R-Value Work: 0.162
• R-Value Observed: 0.163
• Space Group: P 1 2₁ 1

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 42.018	α = 90
b = 41.41	β = 103.72
c = 72.07	γ = 90

Software Package:

Software Name	Purpose
PHENIX	refinement
HKL-2000	data collection
HKL-2000	data scaling
PHASER	phasing
PDB_EXTRACT	data extraction
HKL-2000	data reduction

Structure Validation

Entry History & Funding Information

Deposition Data

• Released Date: 2017-05-03
Deposition Author(s): McKenna, R., Mboge, M.Y., Mahon, B.P.

---

Funding Organization	Location	Grant Number
National Institutes of Health/National Cancer Institute (NIH/NCI)	United States	CA165284-03S

Revision History

• Version 1.0: 2017-05-03
  Type: Initial release

• Version 1.1: 2017-09-27
  Changes: Author supporting evidence
• Version 1.2: 2019-12-04
  Changes: Author supporting evidence
• Version 1.3: 2024-03-06
  Changes: Data collection, Database references
