5JF6

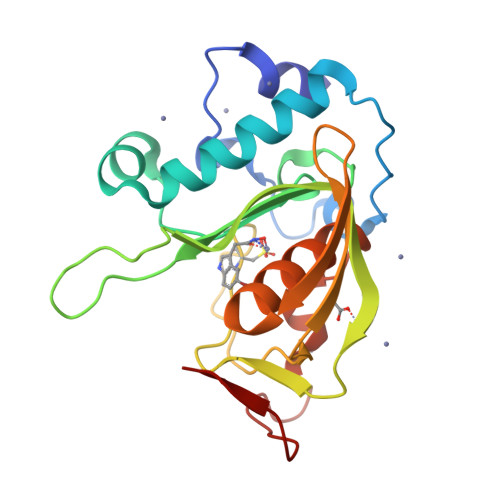

Crystal structure of type 2 PDF from Streptococcus agalactiae in complex with inhibitor 6b (AB47)


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.70 Å
  • R-Value Free: 0.175
  • R-Value Work: 0.144
  • R-Value Observed: 0.145

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment


This is version 1.2 of the entry. See complete history


Literature

A unique peptide deformylase platform to rationally design and challenge novel active compounds.

Fieulaine, S.Alves de Sousa, R.Maigre, L.Hamiche, K.Alimi, M.Bolla, J.M.Taleb, A.Denis, A.Pages, J.M.Artaud, I.Meinnel, T.Giglione, C.

(2016) Sci Rep 6: 35429-35429

  • DOI: https://doi.org/10.1038/srep35429
  • Primary Citation of Related Structures:
    5JEX, 5JEY, 5JEZ, 5JF0, 5JF1, 5JF2, 5JF3, 5JF4, 5JF5, 5JF6, 5JF7, 5JF8

  • PubMed Abstract:

    Peptide deformylase (PDF) is considered an excellent target to develop antibiotics. We have performed an extensive characterization of a new PDF from the pathogen Streptococcus agalactiae, showing properties similar to other known PDFs. S. agalactiae PDF could be used as PDF prototype as it allowed to get complete sets of 3-dimensional, biophysical and kinetic data with virtually any inhibitor compound. Structure-activity relationship analysis with this single reference system allowed us to reveal distinct binding modes for different PDF inhibitors and the key role of a hydrogen bond in potentiating the interaction between ligand and target. We propose this protein as an irreplaceable tool, allowing easy and relevant fine comparisons between series, to design, challenge and validate novel series of inhibitors. As proof-of-concept, we report here the design and synthesis of effective specific bacterial PDF inhibitors of an oxadiazole series with potent antimicrobial activity against a multidrug resistant clinical isolate.


  • Organizational Affiliation

    Institute for Integrative Biology of the Cell (I2BC), CEA, CNRS, Univ. Paris-Sud, Université Paris-Saclay, 91198 Gif-sur-Yvette cedex, France.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Peptide deformylase204Streptococcus agalactiaeMutation(s): 1
Gene Names: defgbs1883
EC: 3.5.1.88
UniProt
Find proteins for Q8E378 (Streptococcus agalactiae serotype III (strain NEM316))
Explore Q8E378
Go to UniProtKB:  Q8E378
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ8E378
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 3 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
BB4
Query on BB4

Download Ideal Coordinates CCD File
B [auth A]2-(5-bromo-1H-indol-3-yl)-N-hydroxyacetamide
C10 H9 Br N2 O2
ZDQORGWUODGWFT-UHFFFAOYSA-N
ZN
Query on ZN

Download Ideal Coordinates CCD File
D [auth A]
E [auth A]
F [auth A]
G [auth A]
H [auth A]
D [auth A],
E [auth A],
F [auth A],
G [auth A],
H [auth A],
I [auth A],
J [auth A],
K [auth A]
ZINC ION
Zn
PTFCDOFLOPIGGS-UHFFFAOYSA-N
ACT
Query on ACT

Download Ideal Coordinates CCD File
C [auth A]ACETATE ION
C2 H3 O2
QTBSBXVTEAMEQO-UHFFFAOYSA-M
Modified Residues  1 Unique
IDChains TypeFormula2D DiagramParent
OCS
Query on OCS
A
L-PEPTIDE LINKINGC3 H7 N O5 SCYS
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.70 Å
  • R-Value Free: 0.175
  • R-Value Work: 0.144
  • R-Value Observed: 0.145
  • Space Group: P 21 21 21
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 40.92α = 90
b = 66.28β = 90
c = 88.29γ = 90
Software Package:
Software NamePurpose
REFMACrefinement
XDSdata reduction
XDSdata scaling
FRODOmodel building
PHASERphasing

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
French National Research AgencyFranceANR-MIME 2006

Revision History  (Full details and data files)

  • Version 1.0: 2016-11-30
    Type: Initial release
  • Version 1.1: 2017-09-06
    Changes: Author supporting evidence
  • Version 1.2: 2024-01-10
    Changes: Data collection, Database references, Derived calculations, Refinement description
