5A9R

Apo form of Imine reductase from Amycolatopsis orientalis

• PDB DOI: https://doi.org/10.2210/pdb5A9R/pdb

• Classification: OXIDOREDUCTASE
• Organism(s): Amycolatopsis orientalis
• Expression System: Escherichia coli BL21(DE3)
• Mutation(s): No


• Deposited: 2015-07-22 Released: 2016-06-01
• Deposition Author(s): Man, H., Aleku, G., Turner, N.J., Grogan, G.

---

Experimental Data Snapshot

• Method: X-RAY DIFFRACTION
• Resolution: 1.55 Å
• R-Value Free: 0.214
• R-Value Work: 0.181
• R-Value Observed: 0.182

Starting Model: experimental

Literature

Stereoselectivity and Structural Characterization of an Imine Reductase (Ired) from Amycolatopsis Orientalis

Aleku, G.A., Man, H., France, S.P., Leipold, F., Hussain, S., Toca-Gonzalez, L., Marchington, R., Hart, S., Turkenburg, J.P., Grogan, G., Turner, N.J.

(2016) ACS Catal 6: 3880

• DOI: https://doi.org/10.1021/ACSCATAL.6B00782

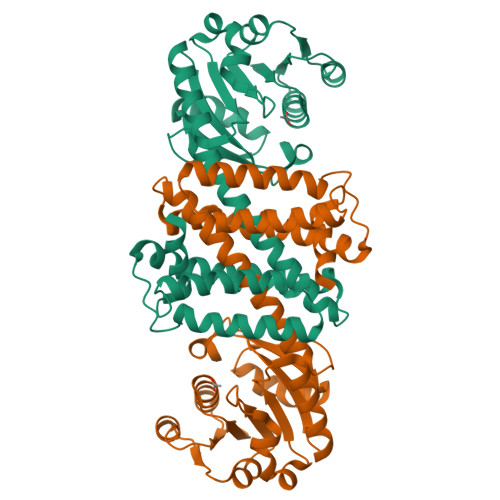

Biological Assembly 1

Global Symmetry: Cyclic - C2  (Explore in 3D)
Global Stoichiometry: Homo 2-mer - A2

Biological assembly 1 assigned by authors and generated by PISA (software)

Macromolecule Content

• Total Structure Weight: 30.55 kDa
• Atom Count: 2,197
• Modelled Residue Count: 286
• Deposited Residue Count: 290
• Unique protein chains: 1

Macromolecules

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
IMINE REDUCTASE	A	290	Amycolatopsis orientalis	Mutation(s): 0  EC: 1.5.1.48
UniProt
Find proteins for R4SNK4 (Amycolatopsis keratiniphila) Explore R4SNK4  Go to UniProtKB:  R4SNK4

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram
ACT	B [auth A]	ACETATE ION C2 H3 O2 QTBSBXVTEAMEQO-UHFFFAOYSA-M

Experimental Data & Validation

Experimental Data

• Method: X-RAY DIFFRACTION
• Resolution: 1.55 Å
• R-Value Free: 0.214
• R-Value Work: 0.181
• R-Value Observed: 0.182
• Space Group: C 2 2 2₁

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 75.58	α = 90
b = 89.62	β = 90
c = 91.48	γ = 90

Software Package:

Software Name	Purpose
REFMAC	refinement
XDS	data reduction
SCALA	data scaling
MOLREP	phasing

Structure Validation

Entry History

Deposition Data

• Released Date: 2016-06-01
Deposition Author(s): Man, H., Aleku, G., Turner, N.J., Grogan, G.

Revision History

• Version 1.0: 2016-06-01
  Type: Initial release

• Version 1.1: 2024-01-10
  Changes: Data collection, Database references, Derived calculations, Other, Refinement description
