5A1W

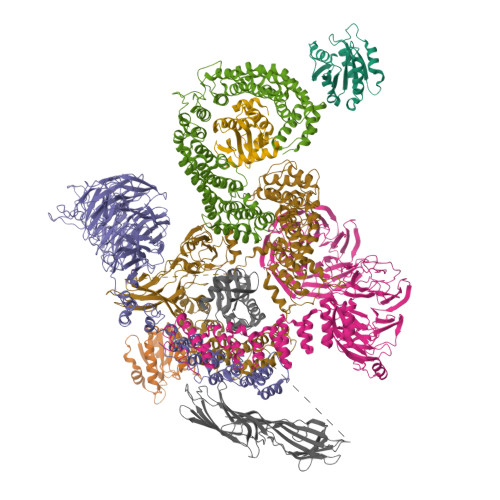

The structure of the COPI coat linkage II


Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 18.0 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: TOMOGRAPHY

wwPDB Validation   3D Report Full Report


This is version 1.3 of the entry. See complete history


Literature

Vesicular Transport. A Structure of the Copi Coat and the Role of Coat Proteins in Membrane Vesicle Assembly.

Dodonova, S.O.Diestelkoetter-Bachert, P.Von Appen, A.Hagen, W.J.H.Beck, R.Beck, M.Wieland, F.Briggs, J.A.G.

(2015) Science 349: 195

  • DOI: https://doi.org/10.1126/science.aab1121
  • Primary Citation of Related Structures:
    5A1U, 5A1V, 5A1W, 5A1X, 5A1Y

  • PubMed Abstract:

    Transport of material within cells is mediated by trafficking vesicles that bud from one cellular compartment and fuse with another. Formation of a trafficking vesicle is driven by membrane coats that localize cargo and polymerize into cages to bend the membrane. Although extensive structural information is available for components of these coats, the heterogeneity of trafficking vesicles has prevented an understanding of how complete membrane coats assemble on the membrane. We combined cryo-electron tomography, subtomogram averaging, and cross-linking mass spectrometry to derive a complete model of the assembled coat protein complex I (COPI) coat involved in traffic between the Golgi and the endoplasmic reticulum. The highly interconnected COPI coat structure contradicted the current "adaptor-and-cage" understanding of coated vesicle formation.


  • Organizational Affiliation

    Structural and Computational Biology Unit, European Molecular Biology Laboratory (EMBL), Meyerhofstrasse 1, 69117 Heidelberg, Germany.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
ADP-RIBOSYLATION FACTOR 1
A, B
181Saccharomyces cerevisiaeMutation(s): 0
EC: 3.6.5.2
UniProt
Find proteins for P11076 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P11076
Go to UniProtKB:  P11076
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP11076
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage
COATOMER SUBUNIT ALPHA1,262Mus musculusMutation(s): 0
UniProt
Find proteins for Q8CIE6 (Mus musculus)
Explore Q8CIE6
Go to UniProtKB:  Q8CIE6
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ8CIE6
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 3
MoleculeChains Sequence LengthOrganismDetailsImage
COATOMER SUBUNIT BETA'905Mus musculusMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for O55029 (Mus musculus)
Explore O55029
Go to UniProtKB:  O55029
IMPC:  MGI:1354962
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupO55029
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 4
MoleculeChains Sequence LengthOrganismDetailsImage
COATOMER SUBUNIT GAMMA-1874Mus musculusMutation(s): 0
UniProt
Find proteins for Q9QZE5 (Mus musculus)
Explore Q9QZE5
Go to UniProtKB:  Q9QZE5
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9QZE5
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 5
MoleculeChains Sequence LengthOrganismDetailsImage
COATOMER SUBUNIT ZETA-1177Mus musculusMutation(s): 0
UniProt
Find proteins for P61924 (Mus musculus)
Explore P61924
Go to UniProtKB:  P61924
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP61924
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 6
MoleculeChains Sequence LengthOrganismDetailsImage
COATOMER SUBUNIT BETA968Mus musculusMutation(s): 0
UniProt
Find proteins for Q9JIF7 (Mus musculus)
Explore Q9JIF7
Go to UniProtKB:  Q9JIF7
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9JIF7
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 7
MoleculeChains Sequence LengthOrganismDetailsImage
COATOMER SUBUNIT DELTA511Mus musculusMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for Q5XJY5 (Mus musculus)
Explore Q5XJY5
Go to UniProtKB:  Q5XJY5
IMPC:  MGI:2387591
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ5XJY5
Sequence Annotations
Expand
  • Reference Sequence
Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 18.0 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: TOMOGRAPHY
EM Software:
TaskSoftware PackageVersion
RECONSTRUCTIONAV3
RECONSTRUCTIONTOM Toolbox

Structure Validation

View Full Validation Report



Entry History

Deposition Data

Revision History  (Full details and data files)

  • Version 1.0: 2015-07-08
    Type: Initial release
  • Version 1.1: 2015-07-22
    Changes: Database references
  • Version 1.2: 2017-08-30
    Changes: Data collection, Refinement description
  • Version 1.3: 2024-05-08
    Changes: Data collection, Database references
