4S0R

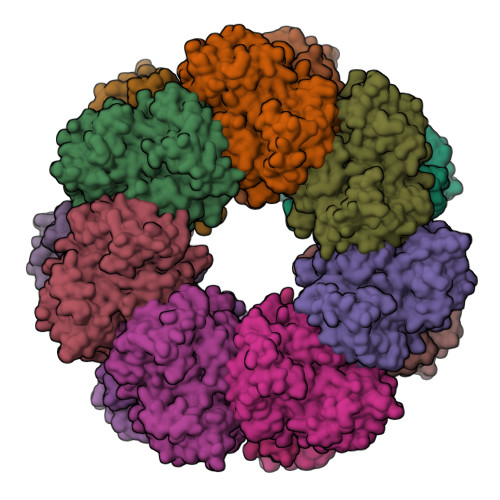

Structure of GS-TnrA complex


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 3.50 Å
  • R-Value Free: 0.284
  • R-Value Work: 0.243
  • R-Value Observed: 0.243

wwPDB Validation   3D Report Full Report


This is version 1.2 of the entry. See complete history


Literature

Structures of regulatory machinery reveal novel molecular mechanisms controlling B. subtilis nitrogen homeostasis.

Schumacher, M.A.Chinnam, N.B.Cuthbert, B.Tonthat, N.K.Whitfill, T.

(2015) Genes Dev 29: 451-464

  • DOI: https://doi.org/10.1101/gad.254714.114
  • Primary Citation of Related Structures:
    4R22, 4R24, 4R25, 4R4E, 4RX6, 4S0R

  • PubMed Abstract:

    All cells must sense and adapt to changing nutrient availability. However, detailed molecular mechanisms coordinating such regulatory pathways remain poorly understood. In Bacillus subtilis, nitrogen homeostasis is controlled by a unique circuitry composed of the regulator TnrA, which is deactivated by feedback-inhibited glutamine synthetase (GS) during nitrogen excess and stabilized by GlnK upon nitrogen depletion, and the repressor GlnR. Here we describe a complete molecular dissection of this network. TnrA and GlnR, the global nitrogen homeostatic transcription regulators, are revealed as founders of a new structural family of dimeric DNA-binding proteins with C-terminal, flexible, effector-binding sensors that modulate their dimerization. Remarkably, the TnrA sensor domains insert into GS intersubunit catalytic pores, destabilizing the TnrA dimer and causing an unprecedented GS dodecamer-to-tetradecamer conversion, which concomitantly deactivates GS. In contrast, each subunit of the GlnK trimer "templates" active TnrA dimers. Unlike TnrA, GlnR sensors mediate an autoinhibitory dimer-destabilizing interaction alleviated by GS, which acts as a GlnR chaperone. Thus, these studies unveil heretofore unseen mechanisms by which inducible sensor domains drive metabolic reprograming in the model Gram-positive bacterium B. subtilis.


  • Organizational Affiliation

    Department of Biochemistry, Duke University Medical Center, Durham, North Carolina 27710, USA maria.schumacher@duke.edu.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Glutamine synthetase
A, B, C, D, E
A, B, C, D, E, F, G, H, I, J, K, L, M, N
447Bacillus subtilis subsp. subtilis str. 168Mutation(s): 0
Gene Names: glnABSU17460
EC: 6.3.1.2
UniProt
Find proteins for P12425 (Bacillus subtilis (strain 168))
Explore P12425
Go to UniProtKB:  P12425
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP12425
Sequence Annotations
Expand
  • Reference Sequence

Find similar proteins by:  Sequence   |   3D Structure

Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage
TnrA peptide15Bacillus subtilis (strain 168)Mutation(s): 0
Gene Names: tnrA
UniProt
Find proteins for Q45666 (Bacillus subtilis (strain 168))
Explore Q45666
Go to UniProtKB:  Q45666
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ45666
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 2 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
GLN
Query on GLN

Download Ideal Coordinates CCD File
AC [auth L]
CA [auth A]
CB [auth E]
FB [auth F]
GC [auth M]
AC [auth L],
CA [auth A],
CB [auth E],
FB [auth F],
GC [auth M],
HA [auth B],
IC [auth N],
JB [auth G],
LB [auth H],
NA [auth C],
PB [auth I],
SB [auth J],
TA [auth D],
WB [auth K]
GLUTAMINE
C5 H10 N2 O3
ZDXPYRJPNDTMRX-VKHMYHEASA-N
MG
Query on MG

Download Ideal Coordinates CCD File
AB [auth D]
BB [auth D]
BC [auth L]
CC [auth L]
DA [auth A]
AB [auth D],
BB [auth D],
BC [auth L],
CC [auth L],
DA [auth A],
DB [auth E],
DC [auth L],
EA [auth A],
EB [auth E],
EC [auth M],
FA [auth A],
FC [auth M],
GA [auth A],
GB [auth F],
HB [auth F],
HC [auth M],
IA [auth B],
IB [auth F],
JA [auth B],
JC [auth N],
KA [auth B],
KB [auth G],
KC [auth N],
LA [auth C],
MA [auth C],
MB [auth H],
NB [auth H],
OA [auth C],
OB [auth H],
PA [auth C],
QA [auth C],
QB [auth I],
RA [auth C],
RB [auth I],
SA [auth C],
TB [auth J],
UA [auth D],
UB [auth J],
VA [auth D],
VB [auth J],
WA [auth D],
XA [auth D],
XB [auth K],
YA [auth D],
YB [auth K],
ZA [auth D],
ZB [auth K]
MAGNESIUM ION
Mg
JLVVSXFLKOJNIY-UHFFFAOYSA-N
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 3.50 Å
  • R-Value Free: 0.284
  • R-Value Work: 0.243
  • R-Value Observed: 0.243
  • Space Group: P 3
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 295.8α = 90
b = 295.8β = 90
c = 103.6γ = 120
Software Package:
Software NamePurpose
ADSCdata collection
PHASERphasing
CNSrefinement
MOSFLMdata reduction
SCALAdata scaling

Structure Validation

View Full Validation Report



Entry History

Deposition Data

Revision History  (Full details and data files)

  • Version 1.0: 2015-03-04
    Type: Initial release
  • Version 1.1: 2017-11-22
    Changes: Refinement description
  • Version 1.2: 2024-02-28
    Changes: Data collection, Database references, Derived calculations
