4DSJ

Crystal structure of fragment DNA polymerase I from Bacillus stearothermophilus with duplex DNA, dGTP and Calcium

• PDB DOI: https://doi.org/10.2210/pdb4DSJ/pdb
• NAKB: 4DSJ

• Classification: TRANSFERASE/DNA
• Organism(s): Geobacillus stearothermophilus
• Expression System: Escherichia coli
• Mutation(s): Yes


• Deposited: 2012-02-19 Released: 2013-03-27
• Deposition Author(s): Gan, J.H., Abdur, R., Liu, H.H., Sheng, J., Caton-Willians, J., Soares, A.S., Huang, Z.

---

Experimental Data Snapshot

• Method: X-RAY DIFFRACTION
• Resolution: 2.86 Å
• R-Value Free: 0.277
• R-Value Work: 0.213
• R-Value Observed: 0.218

Starting Model: experimental

Literature

Biochemical and structural insights into the fidelity of bacillus stearothermophilus DNA polymerase

Gan, J.H., Abdur, R., Liu, H.H., Sheng, J., Caton-Willians, J., Soares, A.S., Huang, Z.

To be published.

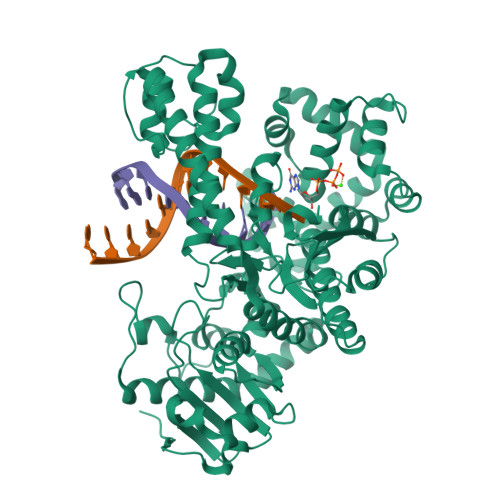

Biological Assembly 1

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Monomer - A1

Biological assembly 1 assigned by authors and generated by PISA (software)

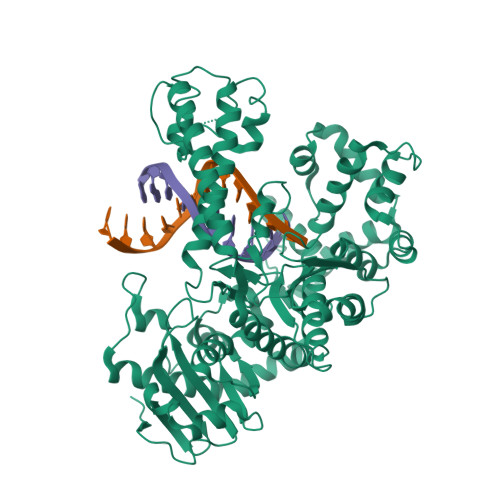

Biological Assembly 2

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Monomer - A1

Biological assembly 2 assigned by authors and generated by PISA (software)

Macromolecule Content

• Total Structure Weight: 146.21 kDa
• Atom Count: 10,210
• Modelled Residue Count: 1,198
• Deposited Residue Count: 1,202
• Unique protein chains: 1
• Unique nucleic acid chains: 2

Macromolecules

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
DNA polymerase	A, B	579	Geobacillus stearothermophilus	Mutation(s): 2  Gene Names: DPO1 EC: 2.7.7.7
UniProt
Find proteins for E1C9K5 (Geobacillus stearothermophilus) Explore E1C9K5  Go to UniProtKB:  E1C9K5

Entity ID: 2
Molecule	Chains	Length	Organism	Image
DNA	C, E	12	N/A

Entity ID: 3
Molecule	Chains	Length	Organism	Image
dGTP	D, F	10	N/A

Small Molecules

Ligands 2 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram
DGT	G [auth A]	2'-DEOXYGUANOSINE-5'-TRIPHOSPHATE C10 H16 N5 O13 P3 HAAZLUGHYHWQIW-KVQBGUIXSA-N
CA	H [auth A], I [auth A]	CALCIUM ION Ca BHPQYMZQTOCNFJ-UHFFFAOYSA-N

Experimental Data & Validation

Experimental Data

• Method: X-RAY DIFFRACTION
• Resolution: 2.86 Å
• R-Value Free: 0.277
• R-Value Work: 0.213
• R-Value Observed: 0.218
• Space Group: P 2₁ 2₁ 2₁

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 60.016	α = 90
b = 112.07	β = 90
c = 229.45	γ = 90

Software Package:

Software Name	Purpose
HKL-2000	data collection
PHASES	phasing
REFMAC	refinement
HKL-2000	data reduction
HKL-2000	data scaling

Structure Validation

Entry History

Deposition Data

• Released Date: 2013-03-27
Deposition Author(s): Gan, J.H., Abdur, R., Liu, H.H., Sheng, J., Caton-Willians, J., Soares, A.S., Huang, Z.

Revision History

• Version 1.0: 2013-03-27
  Type: Initial release

• Version 1.1: 2023-09-13
  Changes: Data collection, Database references, Derived calculations, Refinement description
