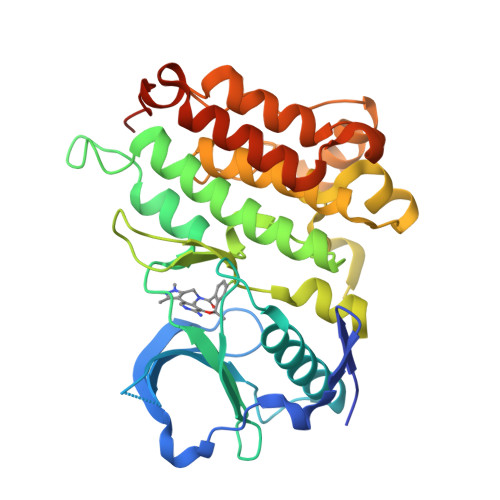

4CMU

Structure of the Human Anaplastic Lymphoma Kinase in Complex with the inhibitor (10R)-7-amino-12-fluoro-1,3,10,16-tetramethyl-16,17-dihydro- 1H-8,4-(metheno)pyrazolo(4,3-h)(2,5,11)benzoxadiazacyclotetradecin-15(10H)-one


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.80 Å
  • R-Value Free: 0.227
  • R-Value Work: 0.206
  • R-Value Observed: 0.206

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment


This is version 1.3 of the entry. See complete history


Literature

Discovery of (10R)-7-Amino-12-Fluoro-2,10,16-Trimethyl-15-Oxo-10,15,16,17-Tetrahydro-2H-8,4-(Metheno)Pyrazolo[4,3-H][2,5,11]Benzoxadiazacyclotetradecine-3-Carbonitrile (Pf-06463922), a Macrocyclic Inhibitor of Alk/Ros1 with Pre-Clinical Brain Exposure and Broad Spectrum Potency Against Alk-Resistant Mutations.

Johnson, T.W.Richardson, P.F.Bailey, S.Brooun, A.Burke, B.J.Collins, M.R.Cui, J.J.Deal, J.G.Deng, Y.L.Dinh, D.M.Engstrom, L.D.He, M.Hoffman, J.E.Hoffman, R.L.Huang, Q.Kath, J.Kania, R.S.Lam, H.Lam, J.L.Le, P.T.Lingardo, L.Liu, W.Mctigue, M.A.Palmer, C.L.Sach, N.W.Smeal, T.Smith, G.L.Stewart, A.E.Timofeevski, S.L.Zhu, H.Zhu, J.Zou, H.Y.Edwards, M.P.

(2014) J Med Chem 57: 4720

  • DOI: https://doi.org/10.1021/jm500261q
  • Primary Citation of Related Structures:
    4CLI, 4CLJ, 4CMO, 4CMT, 4CMU, 4CNH, 4CTB, 4CTC, 5KZ0

  • PubMed Abstract:

    Although crizotinib demonstrates robust efficacy in anaplastic lymphoma kinase (ALK)-positive non-small-cell lung carcinoma patients, progression during treatment eventually develops. Resistant patient samples revealed a variety of point mutations in the kinase domain of ALK, including the L1196M gatekeeper mutation. In addition, some patients progress due to cancer metastasis in the brain. Using structure-based drug design, lipophilic efficiency, and physical-property-based optimization, highly potent macrocyclic ALK inhibitors were prepared with good absorption, distribution, metabolism, and excretion (ADME), low propensity for p-glycoprotein 1-mediated efflux, and good passive permeability. These structurally unusual macrocyclic inhibitors were potent against wild-type ALK and clinically reported ALK kinase domain mutations. Significant synthetic challenges were overcome, utilizing novel transformations to enable the use of these macrocycles in drug discovery paradigms. This work led to the discovery of 8k (PF-06463922), combining broad-spectrum potency, central nervous system ADME, and a high degree of kinase selectivity.


  • Organizational Affiliation

    La Jolla Laboratories, Pfizer Worldwide Research and Development , 10770 Science Center Drive, San Diego, California 92121, United States.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
ALK TYROSINE KINASE RECEPTOR327Homo sapiensMutation(s): 0
EC: 2.7.10.1
UniProt & NIH Common Fund Data Resources
Find proteins for Q9UM73 (Homo sapiens)
Explore Q9UM73
Go to UniProtKB:  Q9UM73
PHAROS:  Q9UM73
GTEx:  ENSG00000171094
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9UM73
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 1 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
IV7
Query on IV7

Download Ideal Coordinates CCD File
B [auth A](10R)-7-amino-12-fluoro-1,3,10,16-tetramethyl-16,17-dihydro-1H-8,4-(metheno)pyrazolo[4,3-h][2,5,11]benzoxadiazacyclotetradecin-15(10H)-one
C21 H22 F N5 O2
ASQDMAQHZGURLM-GFCCVEGCSA-N
Binding Affinity Annotations
IDSourceBinding Affinity
IV7 BindingDB:  4CMU Ki: min: 0.2, max: 0.29 (nM) from 2 assay(s)
IC50: min: 0.7, max: 14 (nM) from 2 assay(s)
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.80 Å
  • R-Value Free: 0.227
  • R-Value Work: 0.206
  • R-Value Observed: 0.206
  • Space Group: P 21 21 21
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 51.83α = 90
b = 57.3β = 90
c = 104.94γ = 90
Software Package:
Software NamePurpose
CNXrefinement
XDSdata reduction
xia2data reduction
SCALAdata scaling
CNXphasing

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History

Deposition Data

Revision History  (Full details and data files)

  • Version 1.0: 2014-05-28
    Type: Initial release
  • Version 1.1: 2014-06-25
    Changes: Database references, Other, Refinement description
  • Version 1.2: 2019-05-08
    Changes: Data collection, Experimental preparation, Other
  • Version 1.3: 2023-12-20
    Changes: Data collection, Database references, Derived calculations, Other, Refinement description
