4BF9

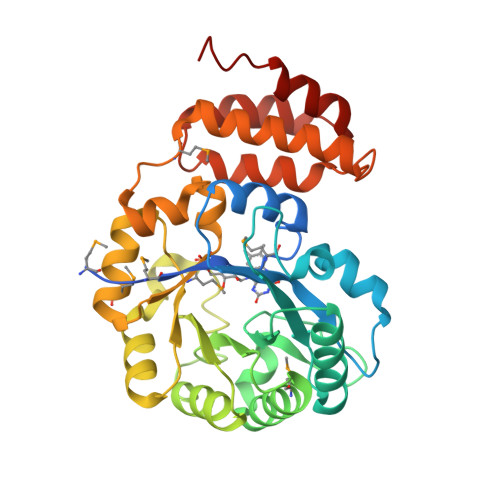

Crystal structure of E. coli dihydrouridine synthase C (DusC) (selenomethionine derivative)


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.60 Å
  • R-Value Free: 0.214
  • R-Value Work: 0.177
  • R-Value Observed: 0.179

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment


This is version 1.4 of the entry. See complete history


Literature

Major Reorientation of tRNA Substrates Defines Specificity of Dihydrouridine Synthases.

Byrne, R.T.Jenkins, H.T.Peters, D.T.Whelan, F.Stowell, J.Aziz, N.Kasatsky, P.Rodnina, M.V.Koonin, E.V.Konevega, A.L.Antson, A.A.

(2015) Proc Natl Acad Sci U S A 112: 6033

  • DOI: https://doi.org/10.1073/pnas.1500161112
  • Primary Citation of Related Structures:
    4BF9, 4BFA, 4YCO, 4YCP

  • PubMed Abstract:

    The reduction of specific uridines to dihydrouridine is one of the most common modifications in tRNA. Increased levels of the dihydrouridine modification are associated with cancer. Dihydrouridine synthases (Dus) from different subfamilies selectively reduce distinct uridines, located at spatially unique positions of folded tRNA, into dihydrouridine. Because the catalytic center of all Dus enzymes is conserved, it is unclear how the same protein fold can be reprogrammed to ensure that nucleotides exposed at spatially distinct faces of tRNA can be accommodated in the same active site. We show that the Escherichia coli DusC is specific toward U16 of tRNA. Unexpectedly, crystal structures of DusC complexes with tRNA(Phe) and tRNA(Trp) show that Dus subfamilies that selectively modify U16 or U20 in tRNA adopt identical folds but bind their respective tRNA substrates in an almost reverse orientation that differs by a 160° rotation. The tRNA docking orientation appears to be guided by subfamily-specific clusters of amino acids ("binding signatures") together with differences in the shape of the positively charged tRNA-binding surfaces. tRNA orientations are further constrained by positional differences between the C-terminal "recognition" domains. The exquisite substrate specificity of Dus enzymes is therefore controlled by a relatively simple mechanism involving major reorientation of the whole tRNA molecule. Such reprogramming of the enzymatic specificity appears to be a unique evolutionary solution for altering tRNA recognition by the same protein fold.


  • Organizational Affiliation

    York Structural Biology Laboratory, Department of Chemistry, and.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
TRNA-DIHYDROURIDINE SYNTHASE C338Escherichia coli K-12Mutation(s): 0
EC: 1.3.1
UniProt
Find proteins for P33371 (Escherichia coli (strain K12))
Explore P33371
Go to UniProtKB:  P33371
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP33371
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 1 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
FMN
Query on FMN

Download Ideal Coordinates CCD File
B [auth A]FLAVIN MONONUCLEOTIDE
C17 H21 N4 O9 P
FVTCRASFADXXNN-SCRDCRAPSA-N
Modified Residues  1 Unique
IDChains TypeFormula2D DiagramParent
MSE
Query on MSE
A
L-PEPTIDE LINKINGC5 H11 N O2 SeMET
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.60 Å
  • R-Value Free: 0.214
  • R-Value Work: 0.177
  • R-Value Observed: 0.179
  • Space Group: P 43 21 2
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 94.14α = 90
b = 94.14β = 90
c = 119.68γ = 90
Software Package:
Software NamePurpose
BUCCANEERmodel building
SCALAdata scaling
SHELXCDphasing
PHASERphasing
PARROTphasing
BUCCANEERphasing
REFMACrefinement

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History

Deposition Data

Revision History  (Full details and data files)

  • Version 1.0: 2013-11-06
    Type: Initial release
  • Version 1.1: 2015-04-22
    Changes: Database references
  • Version 1.2: 2015-05-13
    Changes: Database references
  • Version 1.3: 2015-05-27
    Changes: Database references
  • Version 1.4: 2024-10-16
    Changes: Data collection, Database references, Derived calculations, Other, Structure summary
