3PGD

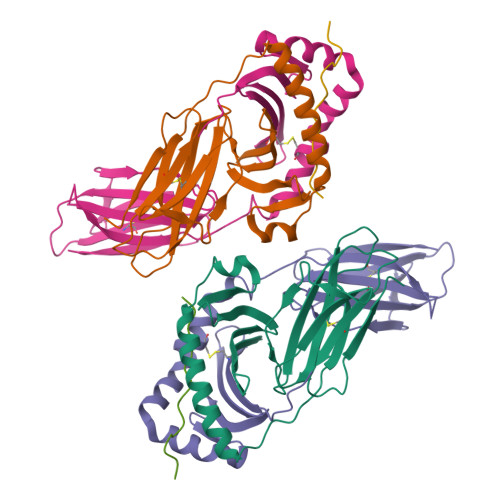

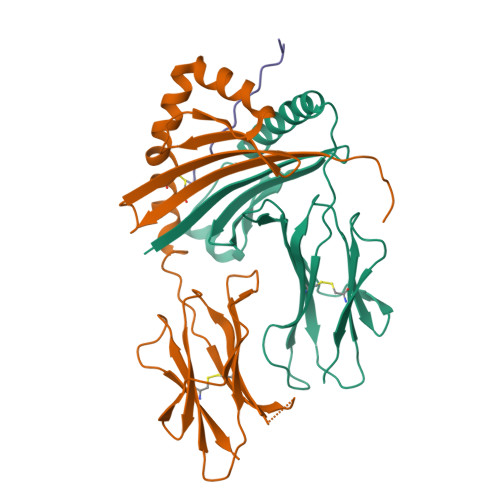

Crystal Structure of HLA-DR1 with CLIP106-120, canonical peptide orientation


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.72 Å
  • R-Value Free: 0.242
  • R-Value Work: 0.196
  • R-Value Observed: 0.198

wwPDB Validation   3D Report Full Report


This is version 1.2 of the entry. See complete history


Literature

Bidirectional binding of invariant chain peptides to an MHC class II molecule.

Gunther, S.Schlundt, A.Sticht, J.Roske, Y.Heinemann, U.Wiesmuller, K.H.Jung, G.Falk, K.Rotzschke, O.Freund, C.

(2010) Proc Natl Acad Sci U S A 107: 22219-22224

  • DOI: https://doi.org/10.1073/pnas.1014708107
  • Primary Citation of Related Structures:
    3PDO, 3PGC, 3PGD

  • PubMed Abstract:

    T-cell recognition of peptides bound to MHC class II (MHCII) molecules is a central event in cell-mediated adaptive immunity. The current paradigm holds that prebound class II-associated invariant chain peptides (CLIP) and all subsequent antigens maintain a canonical orientation in the MHCII binding groove. Here we provide evidence for MHCII-bound CLIP inversion. NMR spectroscopy demonstrates that the interconversion from the canonical to the inverse alignment is a dynamic process, and X-ray crystallography shows that conserved MHC residues form a hydrogen bond network with the peptide backbone in both orientations. The natural catalyst HLA-DM accelerates peptide reorientation and the exchange of either canonically or inversely bound CLIP against antigenic peptide. Thus, noncanonical MHC-CLIP displays the hallmarks of a structurally and functionally intact antigen-presenting complex.


  • Organizational Affiliation

    Leibniz-Institute for Molecular Pharmacology and Freie Universität Berlin, 13125 Berlin, Germany.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
HLA class II histocompatibility antigen, DR alpha chain
A, D
193Homo sapiensMutation(s): 0
Gene Names: HLA-DRAHLA-DRA1
UniProt & NIH Common Fund Data Resources
Find proteins for P01903 (Homo sapiens)
Explore P01903
Go to UniProtKB:  P01903
PHAROS:  P01903
GTEx:  ENSG00000204287
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP01903
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage
HLA class II histocompatibility antigen, DRB1-1 beta chain
B, E
199Homo sapiensMutation(s): 0
Gene Names: HLA-DRB1
UniProt & NIH Common Fund Data Resources
Find proteins for P01911 (Homo sapiens)
Explore P01911
Go to UniProtKB:  P01911
PHAROS:  P01911
GTEx:  ENSG00000196126
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP01911
Sequence Annotations
Expand
  • Reference Sequence

Find similar proteins by:  Sequence   |   3D Structure

Entity ID: 3
MoleculeChains Sequence LengthOrganismDetailsImage
HLA class II histocompatibility antigen gamma chain
C, F
15Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for P04233 (Homo sapiens)
Explore P04233
Go to UniProtKB:  P04233
PHAROS:  P04233
GTEx:  ENSG00000019582
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP04233
Sequence Annotations
Expand
  • Reference Sequence
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.72 Å
  • R-Value Free: 0.242
  • R-Value Work: 0.196
  • R-Value Observed: 0.198
  • Space Group: P 43 21 2
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 94.449α = 90
b = 94.449β = 90
c = 275.535γ = 90
Software Package:
Software NamePurpose
XSCALEdata scaling
PHASERphasing
PHENIXrefinement
PDB_EXTRACTdata extraction
MxCuBEdata collection

Structure Validation

View Full Validation Report



Entry History

Deposition Data

Revision History  (Full details and data files)

  • Version 1.0: 2010-12-08
    Type: Initial release
  • Version 1.1: 2011-07-13
    Changes: Version format compliance
  • Version 1.2: 2024-11-20
    Changes: Data collection, Database references, Structure summary
