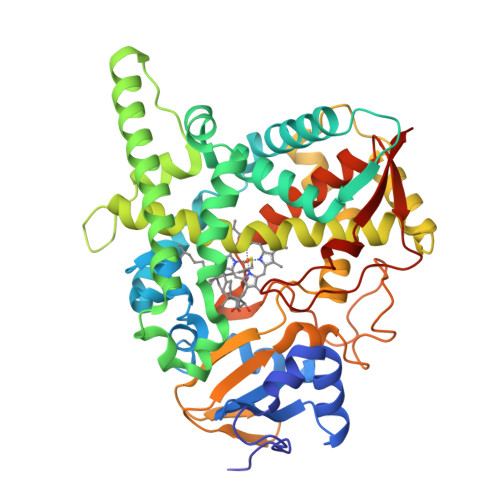

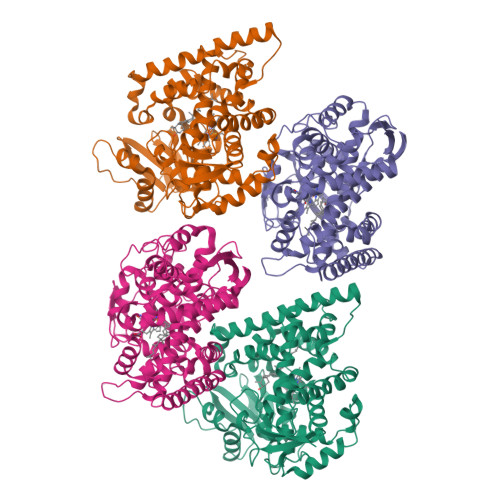

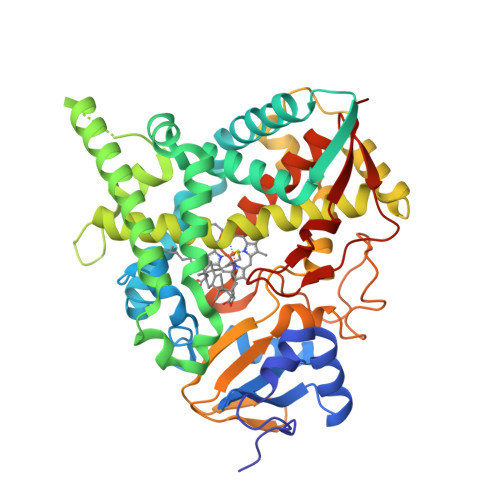

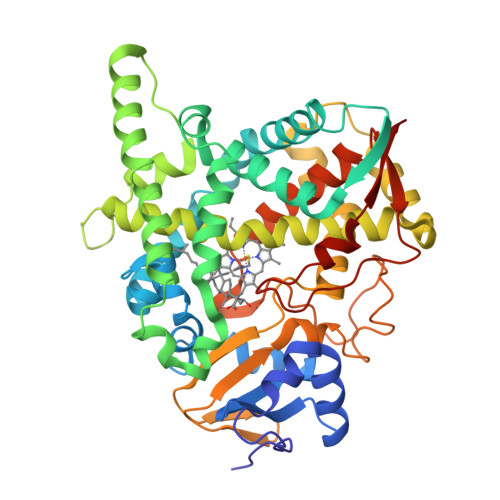

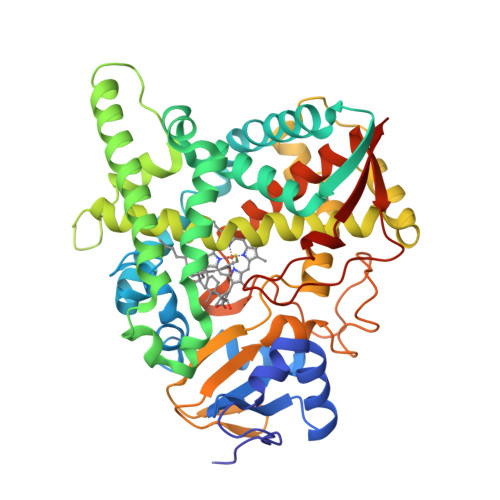

3P99

Sterol 14alpha-demethylase (CYP51) from Trypanosoma brucei in complex with delta7-14alpha-methylene-cyclopropyl-dihydrolanosterol


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 3.00 Å
  • R-Value Free: 0.271
  • R-Value Work: 0.223
  • R-Value Observed: 0.226

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment


This is version 1.3 of the entry. See complete history


Literature

Structural complex of sterol 14alpha-demethylase (CYP51) with 14alpha-methylenecyclopropyl-delta7-24, 25-dihydrolanosterol

Hargrove, T.Y.Wawrzak, Z.Liu, J.Waterman, M.R.Nes, W.D.Lepesheva, G.I.

(2012) J Lipid Res 53: 311-320

  • DOI: https://doi.org/10.1194/jlr.M021865
  • Primary Citation of Related Structures:
    3P99

  • PubMed Abstract:

    Sterol 14α-demethylase (CYP51) that catalyzes the removal of the 14α-methyl group from the sterol nucleus is an essential enzyme in sterol biosynthesis, a primary target for clinical and agricultural antifungal azoles and an emerging target for antitrypanosomal chemotherapy. Here, we present the crystal structure of Trypanosoma (T) brucei CYP51 in complex with the substrate analog 14α-methylenecyclopropyl-Δ7-24,25-dihydrolanosterol (MCP). This sterol binds tightly to all protozoan CYP51s and acts as a competitive inhibitor of F105-containing (plant-like) T. brucei and Leishmania (L) infantum orthologs, but it has a much stronger, mechanism-based inhibitory effect on I105-containing (animal/fungi-like) T. cruzi CYP51. Depicting substrate orientation in the conserved CYP51 binding cavity, the complex specifies the roles of the contact amino acid residues and sheds new light on CYP51 substrate specificity. It also provides an explanation for the effect of MCP on T. cruzi CYP51. Comparison with the ligand-free and azole-bound structures supports the notion of structural rigidity as the characteristic feature of the CYP51 substrate binding cavity, confirming the enzyme as an excellent candidate for structure-directed design of new drugs, including mechanism-based substrate analog inhibitors.


  • Organizational Affiliation

    Department of Biochemistry, School of Medicine, Vanderbilt University, Nashville, TN 37232, USA.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Sterol 14-alpha-demethylase
A, B, C, D
453Trypanosoma bruceiMutation(s): 3
Gene Names: CYP51Tb11.02.4080
EC: 1.14.13.70
UniProt
Find proteins for Q385E8 (Trypanosoma brucei brucei (strain 927/4 GUTat10.1))
Explore Q385E8
Go to UniProtKB:  Q385E8
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ385E8
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 2 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
HEM
Query on HEM

Download Ideal Coordinates CCD File
E [auth A],
G [auth B],
I [auth C],
K [auth D]
PROTOPORPHYRIN IX CONTAINING FE
C34 H32 Fe N4 O4
KABFMIBPWCXCRK-RGGAHWMASA-L
LNP
Query on LNP

Download Ideal Coordinates CCD File
F [auth A],
H [auth B],
J [auth C],
L [auth D]
(3alpha,9beta,10alpha,13alpha)-30-cyclopropylidenelanost-7-en-3-ol
C33 H54 O
JMJLBCGVSMHFQK-SIDBGHOXSA-N
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 3.00 Å
  • R-Value Free: 0.271
  • R-Value Work: 0.223
  • R-Value Observed: 0.226
  • Space Group: P 1
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 59.61α = 107.93
b = 80.57β = 102.43
c = 115.8γ = 99.57
Software Package:
Software NamePurpose
HKL-2000data collection
MOLREPphasing
REFMACrefinement
XDSdata reduction
XSCALEdata scaling

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History

Deposition Data

Revision History  (Full details and data files)

  • Version 1.0: 2011-11-30
    Type: Initial release
  • Version 1.1: 2012-08-15
    Changes: Database references
  • Version 1.2: 2014-10-08
    Changes: Database references
  • Version 1.3: 2023-09-06
    Changes: Data collection, Database references, Derived calculations, Refinement description
