3L0Q | pdb_00003l0q

The crystal structure of xlylulose kinase from Yersinia pseudotuberculosis

• PDB DOI: https://doi.org/10.2210/pdb3L0Q/pdb

• Classification: TRANSFERASE
• Organism(s): Yersinia pseudotuberculosis
• Expression System: Escherichia coli BL21(DE3)
• Mutation(s): No


• Deposited: 2009-12-10 Released: 2010-01-05
• Deposition Author(s): Zhang, Z., Burley, S.K., Swaminathan, S., New York SGX Research Center for Structural Genomics (NYSGXRC)

---

Experimental Data Snapshot

• Method: X-RAY DIFFRACTION
• Resolution: 1.61 Å
• R-Value Free:
  0.222 (Depositor), 0.218 (DCC)
• R-Value Work:
  0.192 (Depositor), 0.190 (DCC)
• R-Value Observed:
  0.193 (Depositor)

Starting Model: experimental

Literature

The crystal structure of xylulose kinase from Yersinia pseudotuberculosis

Zhang, Z., Burley, S.K., Swaminathan, S.

To be published.

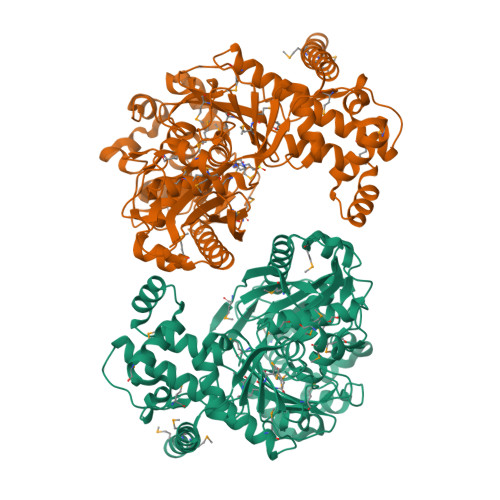

Biological Assembly 1

Global Symmetry: Cyclic - C2  (Explore in 3D)
Global Stoichiometry: Homo 2-mer - A2

Biological assembly 1 assigned by authors.

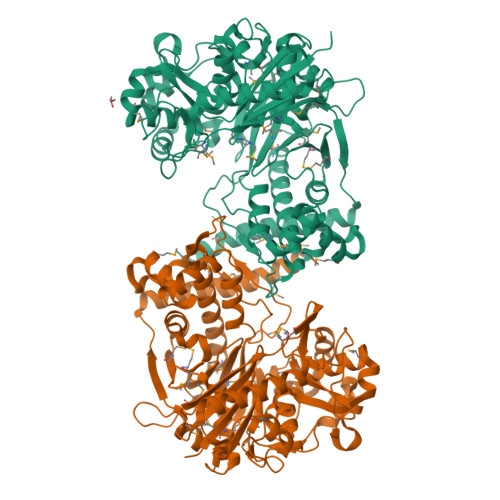

Biological Assembly 2

Global Symmetry: Cyclic - C2  (Explore in 3D)
Global Stoichiometry: Homo 2-mer - A2

Biological assembly 2 generated by PISA (software)

Macromolecule Content

• Total Structure Weight: 124.16 kDa
• Atom Count: 9,257
• Modeled Residue Count: 1,083
• Deposited Residue Count: 1,108
• Unique protein chains: 1

Macromolecules

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
xylulose kinase	A, B	554	Yersinia pseudotuberculosis	Mutation(s): 0  Gene Names: araB2, y0231, YPTB3592, YP_3910
UniProt
Find proteins for Q665C6 (Yersinia pseudotuberculosis serotype I (strain IP32953)) Explore Q665C6  Go to UniProtKB:  Q665C6

Small Molecules

Ligands 3 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram
EPE	D [auth B]	4-(2-HYDROXYETHYL)-1-PIPERAZINE ETHANESULFONIC ACID C8 H18 N2 O4 S JKMHFZQWWAIEOD-UHFFFAOYSA-N
XUL	C [auth A]	D-XYLULOSE C5 H10 O5 ZAQJHHRNXZUBTE-WUJLRWPWSA-N
GOL	E [auth B]	GLYCEROL C3 H8 O3 PEDCQBHIVMGVHV-UHFFFAOYSA-N

Modified Residues  1 Unique
ID	Chains	Type	Formula	2D Diagram	Parent
MSE	A, B	L-PEPTIDE LINKING	C5 H11 N O2 Se		MET

Experimental Data & Validation

Experimental Data

• Method: X-RAY DIFFRACTION
• Resolution: 1.61 Å
• R-Value Free:  0.222 (Depositor), 0.218 (DCC)
• R-Value Work:  0.192 (Depositor), 0.190 (DCC)
• R-Value Observed: 0.193 (Depositor)

Space Group: P 1 2₁ 1

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 61.876	α = 90
b = 110.005	β = 99.71
c = 80.532	γ = 90

Software Package:

Software Name	Purpose
CBASS	data collection
PHASER	phasing
PHENIX	refinement
HKL-2000	data reduction
HKL-2000	data scaling

Structure Validation

Entry History

Deposition Data

• Released Date: 2010-01-05
Deposition Author(s): Zhang, Z., Burley, S.K., Swaminathan, S., New York SGX Research Center for Structural Genomics (NYSGXRC)

Revision History

• Version 1.0: 2010-01-05
  Type: Initial release

• Version 1.1: 2011-07-13
  Changes: Version format compliance
• Version 1.2: 2021-02-10
  Changes: Database references, Derived calculations, Structure summary
• Version 1.3: 2023-09-06
  Changes: Data collection, Database references, Refinement description
• Version 1.4: 2023-11-22
  Changes: Data collection
• Version 1.5: 2024-11-06
  Changes: Structure summary
