38KM | pdb_000038km

Cofilactin filament with two AIP1 bound to middle of the filament

PDB DOI: https://doi.org/10.2210/pdb38KM/pdb
EM Map EMD-78880: EMDB EMDataResource

Classification: STRUCTURAL PROTEIN
Organism(s): Oryctolagus cuniculus, Caenorhabditis elegans
Expression System: Escherichia coli 'BL21-Gold(DE3)pLysS AG
Mutation(s): No

Deposited: 2026-08-31 Released: 2026-09-09
Deposition Author(s): Stukey, G.J., Dominguez, R.
Funding Organization(s): National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 2.30 Å
Aggregation State: FILAMENT
Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

Validation slider image for 38KM

This is version 1.0 of the entry. See complete history.

Literature

AIP1 Promotes Severing of Cofilin-Decorated Actin Filaments by Creating a Stress-Sensitive Rigid-Compliant Boundary

Stukey, G.J., Geng, S., Palmer, N.J., Saks, A., Vavylonis, D., Ono, S., Dominguez, R.

To be published.

Macromolecule Content

Total Structure Weight: 573.6 kDa
Atom Count: 40,460
Modeled Residue Count: 5,092
Deposited Residue Count: 5,150
Unique protein chains: 3

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

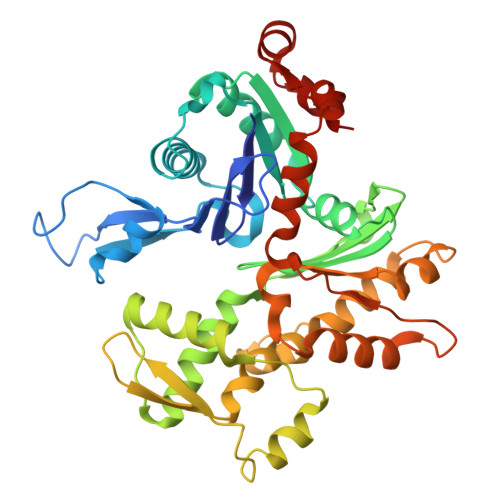

Actin, alpha skeletal muscle	A, B, C, D, E A, B, C, D, E, F, G, H	377	Oryctolagus cuniculus	Mutation(s): 0 EC: 3.6.4
UniProt
Find proteins for P68135 (Oryctolagus cuniculus) Explore P68135 Go to UniProtKB: P68135
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P68135
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

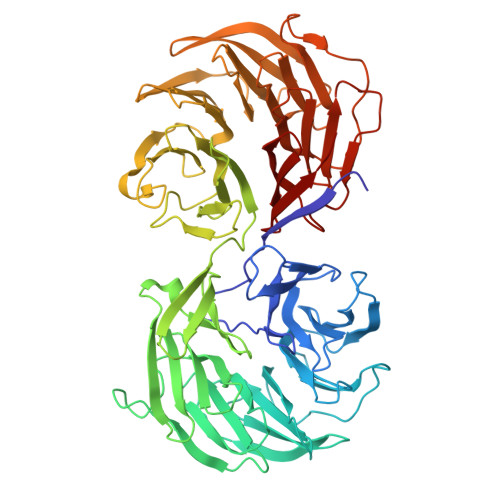

Actin-interacting protein 1	I [auth X], J [auth Y]	611	Caenorhabditis elegans	Mutation(s): 0 Gene Names: unc-78, C04F6.4
UniProt
Find proteins for Q11176 (Caenorhabditis elegans) Explore Q11176 Go to UniProtKB: Q11176
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q11176
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

Entity ID: 3
Molecule	Chains	Sequence Length	Organism	Details	Image

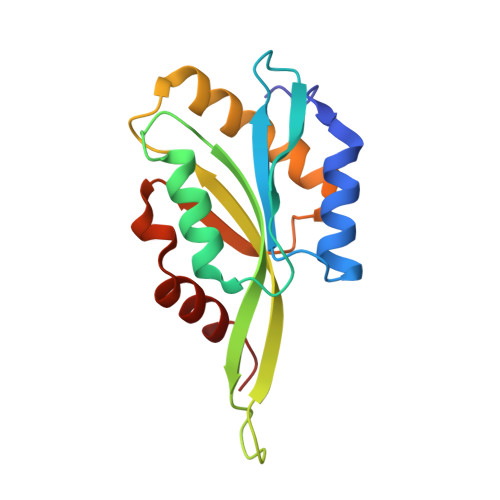

Cofilin	K [auth a] L [auth b] M [auth c] N [auth d] O [auth e] K [auth a], L [auth b], M [auth c], N [auth d], O [auth e], P [auth f]	152	Caenorhabditis elegans	Mutation(s): 0
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 2 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
ADP Query on ADP Download:Ideal Coordinates CCD File SDF format, chain AA [auth F] SDF format, chain CA [auth G] SDF format, chain EA [auth H] SDF format, chain Q [auth A] SDF format, chain S [auth B] SDF format, chain U [auth C] SDF format, chain W [auth D] SDF format, chain Y [auth E] MOL2 format, chain AA [auth F] MOL2 format, chain CA [auth G] MOL2 format, chain EA [auth H] MOL2 format, chain Q [auth A] MOL2 format, chain S [auth B] MOL2 format, chain U [auth C] MOL2 format, chain W [auth D] MOL2 format, chain Y [auth E] mmCIF format, chain AA [auth F] mmCIF format, chain CA [auth G] mmCIF format, chain EA [auth H] mmCIF format, chain Q [auth A] mmCIF format, chain S [auth B] mmCIF format, chain U [auth C] mmCIF format, chain W [auth D] mmCIF format, chain Y [auth E]	AA [auth F] CA [auth G] EA [auth H] Q [auth A] S [auth B] AA [auth F], CA [auth G], EA [auth H], Q [auth A], S [auth B], U [auth C], W [auth D], Y [auth E]	ADENOSINE-5'-DIPHOSPHATE C₁₀ H₁₅ N₅ O₁₀ P₂ XTWYTFMLZFPYCI-KQYNXXCUSA-N		Interactions Focus chain AA [auth F] Focus chain CA [auth G] Focus chain EA [auth H] Focus chain Q [auth A] Focus chain S [auth B] Focus chain U [auth C] Focus chain W [auth D] Focus chain Y [auth E] Interactions & Density Focus chain AA [auth F] Focus chain CA [auth G] Focus chain EA [auth H] Focus chain Q [auth A] Focus chain S [auth B] Focus chain U [auth C] Focus chain W [auth D] Focus chain Y [auth E]
MG Query on MG Download:Ideal Coordinates CCD File SDF format, chain BA [auth F] SDF format, chain DA [auth G] SDF format, chain FA [auth H] SDF format, chain R [auth A] SDF format, chain T [auth B] SDF format, chain V [auth C] SDF format, chain X [auth D] SDF format, chain Z [auth E] MOL2 format, chain BA [auth F] MOL2 format, chain DA [auth G] MOL2 format, chain FA [auth H] MOL2 format, chain R [auth A] MOL2 format, chain T [auth B] MOL2 format, chain V [auth C] MOL2 format, chain X [auth D] MOL2 format, chain Z [auth E] mmCIF format, chain BA [auth F] mmCIF format, chain DA [auth G] mmCIF format, chain FA [auth H] mmCIF format, chain R [auth A] mmCIF format, chain T [auth B] mmCIF format, chain V [auth C] mmCIF format, chain X [auth D] mmCIF format, chain Z [auth E]	BA [auth F] DA [auth G] FA [auth H] R [auth A] T [auth B] BA [auth F], DA [auth G], FA [auth H], R [auth A], T [auth B], V [auth C], X [auth D], Z [auth E]	MAGNESIUM ION Mg JLVVSXFLKOJNIY-UHFFFAOYSA-N		Interactions Focus chain BA [auth F] Focus chain DA [auth G] Focus chain FA [auth H] Focus chain R [auth A] Focus chain T [auth B] Focus chain V [auth C] Focus chain X [auth D] Focus chain Z [auth E] Interactions & Density Focus chain BA [auth F] Focus chain DA [auth G] Focus chain FA [auth H] Focus chain R [auth A] Focus chain T [auth B] Focus chain V [auth C] Focus chain X [auth D] Focus chain Z [auth E]

Experimental Data & Validation

Experimental Data

Method: ELECTRON MICROSCOPY
Resolution: 2.30 Å
Aggregation State: FILAMENT
Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
RECONSTRUCTION	cryoSPARC	4.7
MODEL REFINEMENT	PHENIX	1.21.2_5419

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2026-09-09

Deposition Author(s):

Funding Organization	Location	Grant Number
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)	United States	R35 GM161161

Revision History (Full details and data files)

Version 1.0: 2026-09-09
Type: Initial release
