37TT | pdb_000037tt

Crystal structure of Z4-C3ii

PDB DOI: https://doi.org/10.2210/pdb37TT/pdb
Entry: 37TT supersedes: 9CC4

Classification: DE NOVO PROTEIN
Organism(s): synthetic construct
Expression System: Escherichia coli
Mutation(s): No

Deposited: 2026-08-05 Released: 2026-08-19
Deposition Author(s): Bera, A.K., Pyles, H., Saragovi, A., Kang, A., Baker, D.
Funding Organization(s): National Science Foundation (NSF, United States), Howard Hughes Medical Institute (HHMI)

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 2.99 Å
R-Value Free:
0.290 (Depositor), 0.291 (DCC)
R-Value Work:
0.231 (Depositor), 0.232 (DCC)
R-Value Observed:
0.237 (Depositor)

Starting Model: in silico
View more details

wwPDB Validation 3D Report Full Report

Validation slider image for 37TT

This is version 1.0 of the entry. See complete history.

Literature

Programmed mineralization of metal-oxides by de novo designed protein templates

Saragovi, A., Pyles, H., Bera, A.K., Baker, D.

To be published.

Macromolecule Content

Total Structure Weight: 147.71 kDa
Atom Count: 9,243
Modeled Residue Count: 1,236
Deposited Residue Count: 1,392
Unique protein chains: 1

Macromolecules

Find similar proteins by:

Entity ID: 1

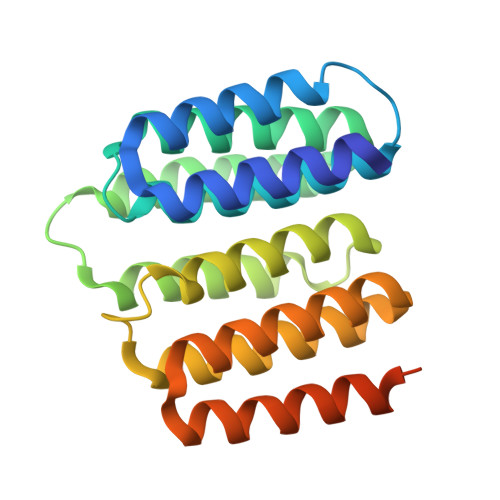

Molecule	Chains	Sequence Length	Organism	Details	Image
Z4 c3ii	A B C D E [auth F] A, B, C, D, E [auth F], F [auth E]	232	synthetic construct	Mutation(s): 0
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
Sequence Annotations Expand
Reference Sequence

Experimental Data & Validation

Experimental Data

Method: X-RAY DIFFRACTION
Resolution: 2.99 Å
R-Value Free: 0.290 (Depositor), 0.291 (DCC)
R-Value Work: 0.231 (Depositor), 0.232 (DCC)
R-Value Observed: 0.237 (Depositor)

Space Group: P 1 2₁ 1

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 67.593	α = 90
b = 68.52	β = 90.884
c = 111.752	γ = 90

Software Package:

Software Name	Purpose
PHENIX	refinement
XDS	data reduction
Aimless	data scaling
PHASER	phasing

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2026-08-19

Deposition Author(s):

This entry supersedes: 9CC4

Funding Organization	Location	Grant Number
National Science Foundation (NSF, United States)	United States	--
Howard Hughes Medical Institute (HHMI)	United States	--

Revision History (Full details and data files)

Version 1.0: 2026-08-19
Type: Initial release
