36QV | pdb_000036qv

Arabidopsis thaliana V-type ATPase, State 2, Backbone model

PDB DOI: https://doi.org/10.2210/pdb36QV/pdb
EM Map EMD-77787: EMDB EMDataResource

Classification: HYDROLASE
Organism(s): Arabidopsis thaliana
Mutation(s): No

Deposited: 2026-06-26 Released: 2026-09-09
Deposition Author(s): Khamina, M., Rubinstein, J.L.
Funding Organization(s): Canadian Institutes of Health Research (CIHR), German Research Foundation (DFG)

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 3.00 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

This is version 1.0 of the entry. See complete history.

Literature

Cryo-EM structure of the Arabidopsis thaliana V-type ATPase

Khamina, M., Wunsch, N., Lupanga, U., Fink, F., Wang, H., Schulze, W.X., Schumacher, K., Rubinstein, J.L.

To be published.

Macromolecule Content

Total Structure Weight: 1,004.8 kDa
Atom Count: 32,258
Modeled Residue Count: 8,056
Deposited Residue Count: 9,135
Unique protein chains: 15

Macromolecules

Find similar proteins by:

| 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

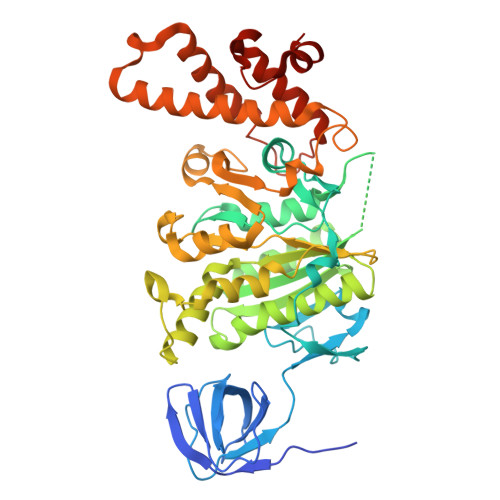

V-type proton ATPase subunit B1	A [auth F], AA [auth D], BA [auth B]	486	Arabidopsis thaliana	Mutation(s): 0
UniProt
Find proteins for P11574 (Arabidopsis thaliana) Explore P11574 Go to UniProtKB: P11574
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P11574
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image
V-type proton ATPase subunit E1	B [auth G], D [auth I], F [auth K]	230	Arabidopsis thaliana	Mutation(s): 0
UniProt
Find proteins for Q39258 (Arabidopsis thaliana) Explore Q39258 Go to UniProtKB: Q39258
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q39258
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 3
Molecule	Chains	Sequence Length	Organism	Details	Image

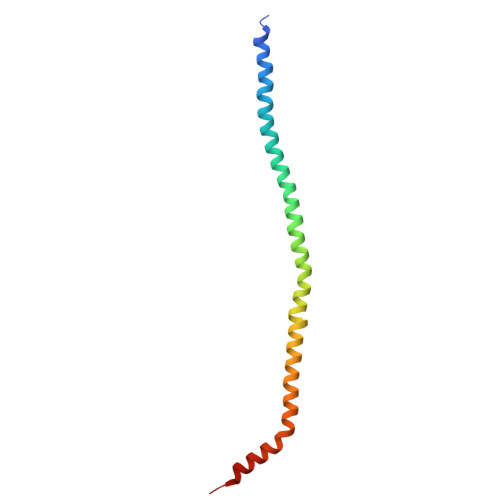

V-type proton ATPase subunit G1	C [auth H], E [auth J], G [auth L]	110	Arabidopsis thaliana	Mutation(s): 0
UniProt
Find proteins for O82628 (Arabidopsis thaliana) Explore O82628 Go to UniProtKB: O82628
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	O82628
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 4
Molecule	Chains	Sequence Length	Organism	Details	Image
V-type proton ATPase subunit D	H [auth M]	261	Arabidopsis thaliana	Mutation(s): 0
UniProt
Find proteins for Q9XGM1 (Arabidopsis thaliana) Explore Q9XGM1 Go to UniProtKB: Q9XGM1
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q9XGM1
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 5
Molecule	Chains	Sequence Length	Organism	Details	Image

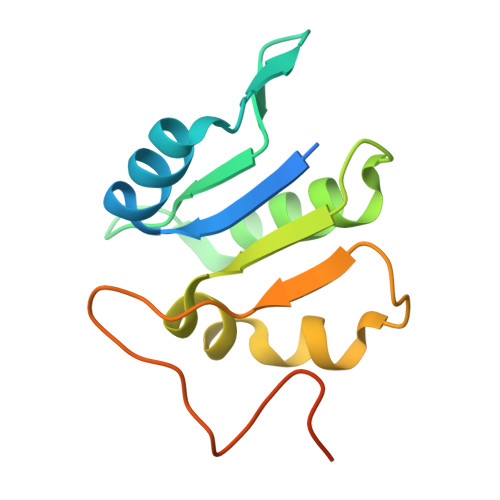

V-type proton ATPase subunit F	I [auth N]	128	Arabidopsis thaliana	Mutation(s): 0
UniProt
Find proteins for Q9ZQX4 (Arabidopsis thaliana) Explore Q9ZQX4 Go to UniProtKB: Q9ZQX4
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q9ZQX4
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 6
Molecule	Chains	Sequence Length	Organism	Details	Image

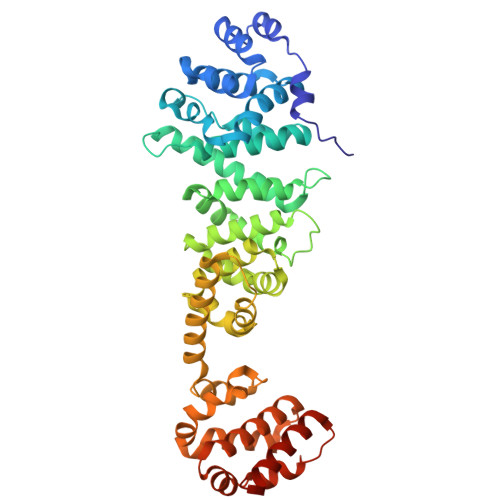

V-type proton ATPase subunit H	J [auth P]	441	Arabidopsis thaliana	Mutation(s): 0
UniProt
Find proteins for Q9LX65 (Arabidopsis thaliana) Explore Q9LX65 Go to UniProtKB: Q9LX65
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q9LX65
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 7
Molecule	Chains	Sequence Length	Organism	Details	Image
V-type proton ATPase subunit AP1 fragment	K [auth b]	321	Arabidopsis thaliana	Mutation(s): 0
UniProt
Find proteins for Q93WB8 (Arabidopsis thaliana) Explore Q93WB8 Go to UniProtKB: Q93WB8
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q93WB8
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 8
Molecule	Chains	Sequence Length	Organism	Details	Image

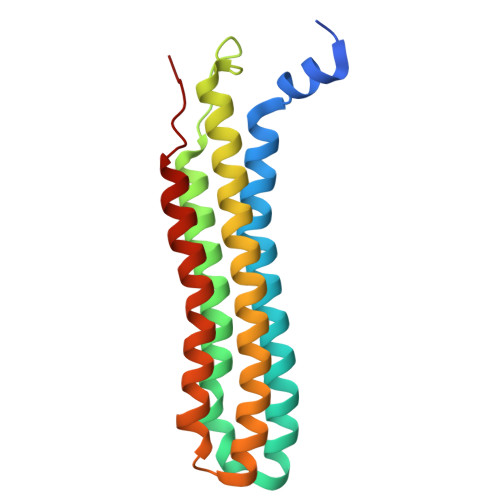

V-type proton ATPase subunit c''1	L [auth c]	180	Arabidopsis thaliana	Mutation(s): 0
UniProt
Find proteins for Q9SZY7 (Arabidopsis thaliana) Explore Q9SZY7 Go to UniProtKB: Q9SZY7
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q9SZY7
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 9
Molecule	Chains	Sequence Length	Organism	Details	Image

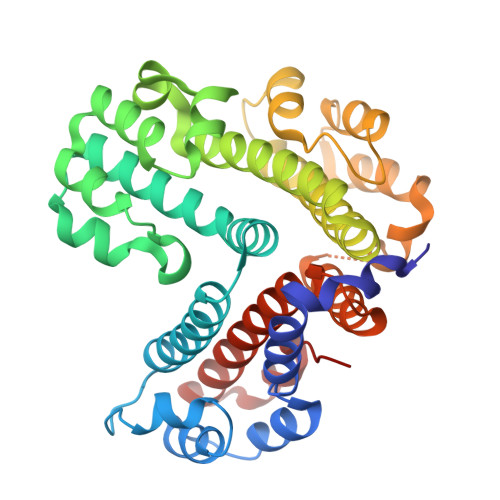

V-type proton ATPase subunit d1	M [auth d]	351	Arabidopsis thaliana	Mutation(s): 0
UniProt
Find proteins for Q9LJI5 (Arabidopsis thaliana) Explore Q9LJI5 Go to UniProtKB: Q9LJI5
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q9LJI5
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 10
Molecule	Chains	Sequence Length	Organism	Details	Image
V-type proton ATPase subunit e2	N [auth e]	70	Arabidopsis thaliana	Mutation(s): 0
UniProt
Find proteins for Q9SZ13 (Arabidopsis thaliana) Explore Q9SZ13 Go to UniProtKB: Q9SZ13
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q9SZ13
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 11
Molecule	Chains	Sequence Length	Organism	Details	Image

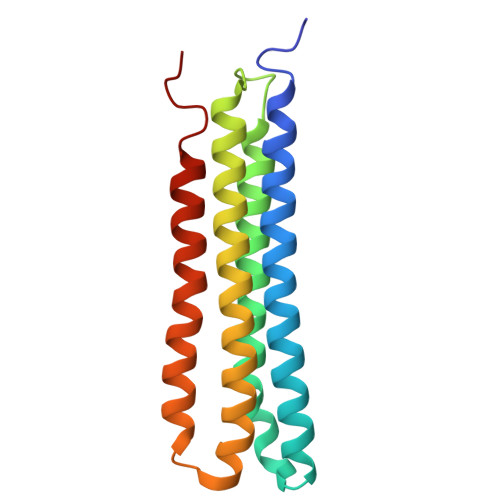

V-type proton ATPase subunit c1	O [auth g] P [auth h] Q [auth i] R [auth j] S [auth k] O [auth g], P [auth h], Q [auth i], R [auth j], S [auth k], T [auth l], U [auth m], V [auth n], W [auth o]	164	Arabidopsis thaliana	Mutation(s): 0
UniProt
Find proteins for P0DH92 (Arabidopsis thaliana) Explore P0DH92 Go to UniProtKB: P0DH92
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P0DH92
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 12
Molecule	Chains	Sequence Length	Organism	Details	Image
V-type proton ATPase subunit AP2 fragment	X [auth r]	364	Arabidopsis thaliana	Mutation(s): 0
UniProt
Find proteins for Q9ZSJ7 (Arabidopsis thaliana) Explore Q9ZSJ7 Go to UniProtKB: Q9ZSJ7
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q9ZSJ7
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 13
Molecule	Chains	Sequence Length	Organism	Details	Image
V-type proton ATPase catalytic subunit A	CA [auth A], Y [auth C], Z [auth E]	623	Arabidopsis thaliana	Mutation(s): 0 EC: 7.1.2.2
UniProt
Find proteins for O23654 (Arabidopsis thaliana) Explore O23654 Go to UniProtKB: O23654
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	O23654
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 14
Molecule	Chains	Sequence Length	Organism	Details	Image
V-type proton ATPase subunit C	DA [auth O]	375	Arabidopsis thaliana	Mutation(s): 0
UniProt
Find proteins for Q9SDS7 (Arabidopsis thaliana) Explore Q9SDS7 Go to UniProtKB: Q9SDS7
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q9SDS7
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 15
Molecule	Chains	Sequence Length	Organism	Details	Image

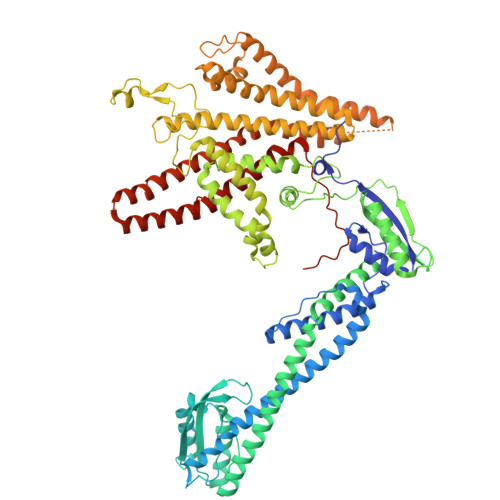

V-type proton ATPase subunit a3	EA [auth a]	821	Arabidopsis thaliana	Mutation(s): 0
UniProt
Find proteins for Q8W4S4 (Arabidopsis thaliana) Explore Q8W4S4 Go to UniProtKB: Q8W4S4
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q8W4S4
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 2 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
ADP (Subject of Investigation/LOI) Query on ADP Download:Ideal Coordinates CCD File SDF format, chain FA [auth E] MOL2 format, chain FA [auth E] mmCIF format, chain FA [auth E]	FA [auth E]	ADENOSINE-5'-DIPHOSPHATE C₁₀ H₁₅ N₅ O₁₀ P₂ XTWYTFMLZFPYCI-KQYNXXCUSA-N		Interactions Focus chain FA [auth E] Interactions & Density Focus chain FA [auth E]
MG (Subject of Investigation/LOI) Query on MG Download:Ideal Coordinates CCD File SDF format, chain GA [auth E] MOL2 format, chain GA [auth E] mmCIF format, chain GA [auth E]	GA [auth E]	MAGNESIUM ION Mg JLVVSXFLKOJNIY-UHFFFAOYSA-N		Interactions Focus chain GA [auth E] Interactions & Density Focus chain GA [auth E]

Experimental Data & Validation

Experimental Data

Method: ELECTRON MICROSCOPY
Resolution: 3.00 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
MODEL REFINEMENT	PHENIX	1.21.1_5286
RECONSTRUCTION	cryoSPARC

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2026-09-09

Deposition Author(s):

Khamina, M.

Rubinstein, J.L.

Funding Organization	Location	Grant Number
Canadian Institutes of Health Research (CIHR)	Canada	PJT195707
German Research Foundation (DFG)	Germany	CRC1101

Revision History (Full details and data files)

Version 1.0: 2026-09-09
Type: Initial release
