36LL | pdb_000036ll

16mer self-complementary RNA duplex with L-U

PDB DOI: https://doi.org/10.2210/pdb36LL/pdb

Classification: RNA
Organism(s): synthetic construct
Mutation(s): No

Deposited: 2026-06-16 Released: 2026-07-01
Deposition Author(s): Essex, J., Szostak, J.W.
Funding Organization(s): Howard Hughes Medical Institute (HHMI), National Science Foundation (NSF, United States)

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 1.35 Å
R-Value Free:
0.253 (Depositor), 0.253 (DCC)
R-Value Work:
0.239 (Depositor), 0.240 (DCC)
R-Value Observed:
0.241 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

This is version 1.0 of the entry. See complete history.

Literature

Effects of Chemically Activated L-Nucleotides on Nonenzymatic RNA Copying

Essex, J., Jia, X., Zhang, J., Szostak, J.W.

To be published.

Macromolecule Content

Total Structure Weight: 5.1 kDa
Atom Count: 383
Modeled Residue Count: 16
Deposited Residue Count: 16
Unique nucleic acid chains: 1

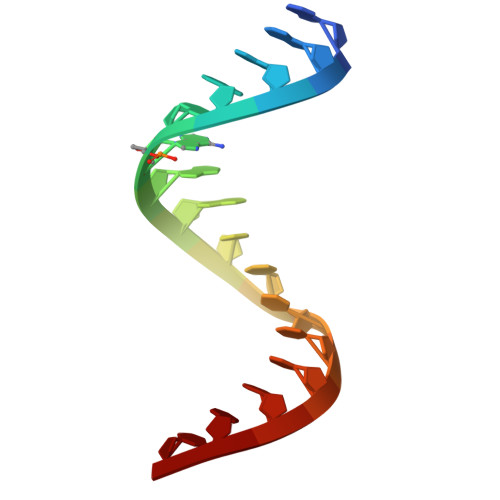

Macromolecules

Find similar nucleic acids by: Sequence

Molecule	Chains	Length	Organism
Entity ID: 1
RNA (16-mer)	A	16	synthetic construct
Sequence Annotations Expand
Reference Sequence

Experimental Data & Validation

Experimental Data

Method: X-RAY DIFFRACTION
Resolution: 1.35 Å
R-Value Free: 0.253 (Depositor), 0.253 (DCC)
R-Value Work: 0.239 (Depositor), 0.240 (DCC)
R-Value Observed: 0.241 (Depositor)

Space Group: H 3 2

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 42.091	α = 90
b = 42.091	β = 90
c = 130.113	γ = 120

Software Package:

Software Name	Purpose
PHENIX	refinement
autoPROC	data reduction
autoPROC	data scaling
PHASER	phasing

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2026-07-01

Deposition Author(s):

Essex, J.

Szostak, J.W.

Funding Organization	Location	Grant Number
Howard Hughes Medical Institute (HHMI)	United States	--
National Science Foundation (NSF, United States)	United States	2325198

Revision History (Full details and data files)

Version 1.0: 2026-07-01
Type: Initial release
