36AZ | pdb_000036az

Structure of BA.1-S-RBD/2130WT/2196-S93Y


Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 3.90 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

Validation slider image for 36AZ

This is version 1.0 of the entry. See complete history

Literature

Structure-Guided Design of Therapeutic Antibodies Targeting SARS-CoV-2 Omicron Variants.

Pallesen, J.Du, J.Wu, Y.Ghosh, S.Bayruns, K.Sadeesh, R.Weiner, D.

(2026) Res Sq

  • DOI: https://doi.org/10.21203/rs.3.rs-9917568/v1
  • Primary Citation Related Structures:
    36AZ, 36BB

  • PubMed Abstract:

    The ongoing evolution of SARS-CoV-2, particularly the emergence of Omicron subvariants, compromised the effectiveness of many therapeutic antibodies. In this study, we employed a structure-guided computational design strategy to systematically optimize the COV2-2196 antibody for improved neutralization of Omicron variants. Through iterative rounds of computational design and experimental validation, we identified key paratope mutations that restored and enhanced antibody binding and neutralization potency against resistant viral strains. Cryo-EM structural analysis revealed the molecular basis for these improvements, highlighting how targeted modifications can accommodate epitope changes introduced by viral evolution. Our approach demonstrates that effective antibody optimization can be achieved using accessible computational resources, providing a practical framework for rapid therapeutic development. These findings underscore the potential of structure-based design to address challenges posed by viral antigenic drift and support the development of broadly effective antibody therapeutics for emerging infectious diseases.

Macromolecule Content

  • Total Structure Weight: 181.95 kDa
  • Atom Count: 5,230
  • Modeled Residue Count: 669
  • Deposited Residue Count: 1,650
  • Unique protein chains: 5

Macromolecules

Find similar proteins by:|  3D Structure
Entity ID: 1
MoleculeChains  Sequence LengthOrganismDetailsImage

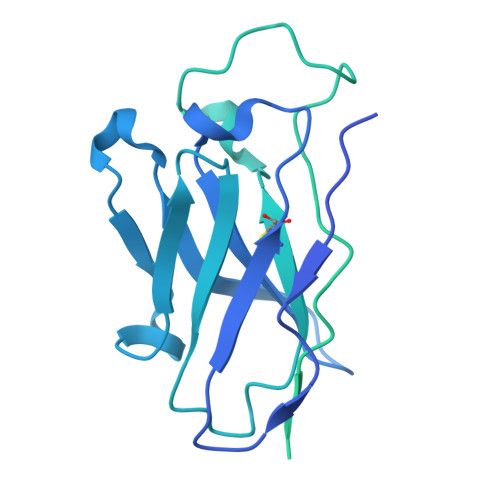

2130WT heavy chainA [auth H]480Homo sapiensMutation(s): 0
Find similar proteins by:|  3D Structure
Entity ID: 2
MoleculeChains  Sequence LengthOrganismDetailsImage

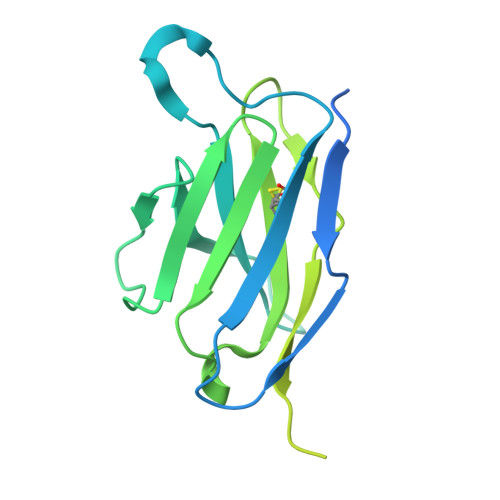

2130WT light chainB [auth L]239Homo sapiensMutation(s): 0
Find similar proteins by:|  3D Structure
Entity ID: 3
MoleculeChains  Sequence LengthOrganismDetailsImage

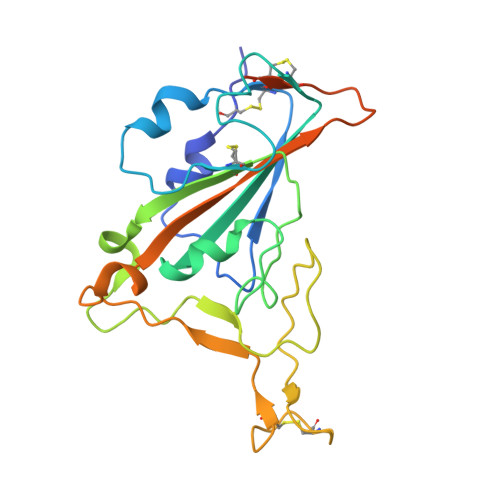

Spike proteinC [auth A]223Severe acute respiratory syndrome coronavirus 2Mutation(s): 0
Gene Names: S2
UniProt
Find proteins for P0DTC2 (Severe acute respiratory syndrome coronavirus 2)
Explore P0DTC2
Go to UniProtKB:  P0DTC2
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0DTC2
Glycosylation
Glycosylation Sites: 1Go to GlyGen: P0DTC2-1
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 4
MoleculeChains  Sequence LengthOrganismDetailsImage

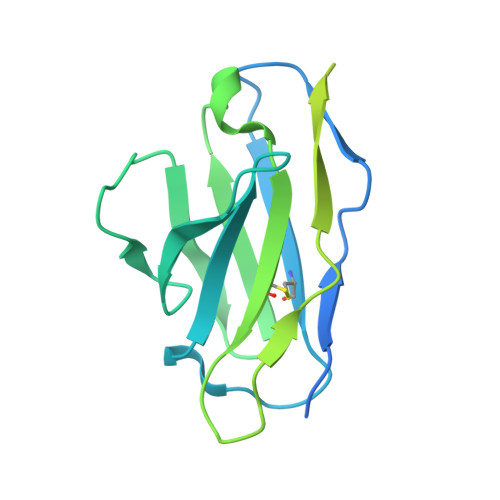

2196-S93Y light chainD [auth B]236Homo sapiensMutation(s): 0
Find similar proteins by:|  3D Structure
Entity ID: 5
MoleculeChains  Sequence LengthOrganismDetailsImage

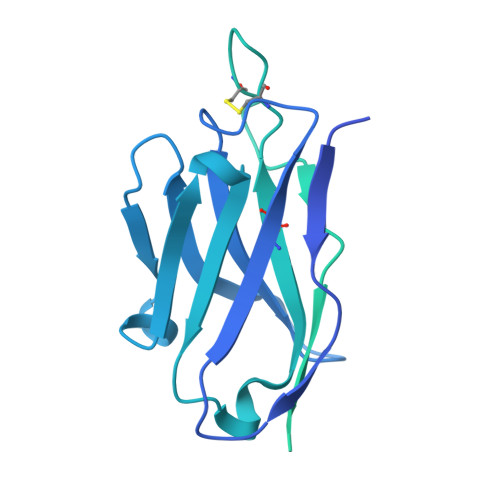

2196-S93Y heavy chainE [auth C]472Homo sapiensMutation(s): 0

Small Molecules

Ligands 1 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
NAG

Query on NAG



Download:Ideal Coordinates CCD File
F [auth A]2-acetamido-2-deoxy-beta-D-glucopyranose
C8 H15 N O6
OVRNDRQMDRJTHS-FMDGEEDCSA-N

Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 3.90 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE
EM Software:
TaskSoftware PackageVersion
RECONSTRUCTIONcryoSPARC

Structure Validation

View Full Validation Report



Entry History

& Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Defense Advanced Research Projects Agency (DARPA)United States--
National Institutes of Health/National Institute Of Allergy and Infectious Diseases (NIH/NIAID)United States--

Revision History  (Full details and data files)

  • Version 1.0: 2026-07-15
    Type: Initial release
