32CR | pdb_000032cr

SHANK3 PDZ (570-664) in complex with an internal PDZ binding motif (843-864) in Densin-180

PDB DOI: https://doi.org/10.2210/pdb32CR/pdb

Classification: PROTEIN BINDING
Organism(s): Mus musculus, Rattus norvegicus
Expression System: Escherichia coli
Mutation(s): No

Deposited: 2026-07-05 Released: 2026-07-22
Deposition Author(s): Kallem, T., Goult, B.T.
Funding Organization(s): British Heart Foundation

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 1.98 Å
R-Value Free:
0.257 (Depositor), 0.207 (DCC)
R-Value Work:
0.201 (Depositor), 0.204 (DCC)

Starting Model: in silico
View more details

wwPDB Validation 3D Report Full Report

Validation slider image for 32CR

This is version 1.0 of the entry. See complete history.

Literature

An internal PDZ-binding motif in Densin-180 promotes activity-dependent SHANK scaffold remodelling

Otani, Y., Srinivasan, V., Toller, J., Kallem, T., Ball, N., Barsukov, I., Saarikangas, J., Kreienkamp, H.J., Goult, B.T.

(2026) bioRxiv

DOI: https://doi.org/10.64898/2026.07.07.736929

Macromolecule Content

Total Structure Weight: 54.75 kDa
Atom Count: 3,955
Modeled Residue Count: 457
Deposited Residue Count: 496
Unique protein chains: 2

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
SH3 and multiple ankyrin repeat domains protein 3	A, C, E, G	101	Mus musculus	Mutation(s): 0 Gene Names: Shank3, Kiaa1650, Prosap2
UniProt & NIH Common Fund Data Resources
Find proteins for Q4ACU6 (Mus musculus) Explore Q4ACU6 Go to UniProtKB: Q4ACU6
IMPC: MGI:1930016
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q4ACU6
Sequence Annotations Expand
Reference Sequence

Find similar proteins by: Sequence | 3D Structure

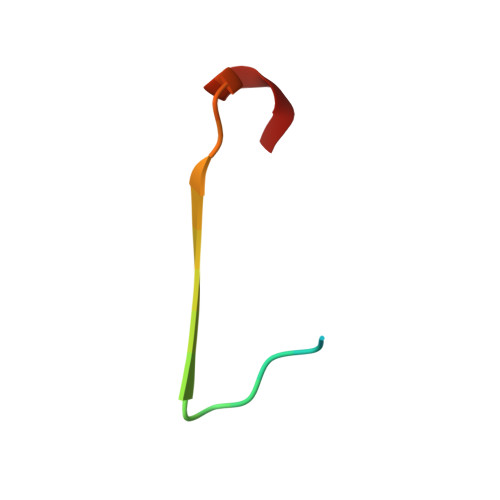

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image
Leucine-rich repeat-containing protein 7	B, D, F, H	23	Rattus norvegicus	Mutation(s): 0
UniProt
Find proteins for P70587 (Rattus norvegicus) Explore P70587 Go to UniProtKB: P70587
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P70587
Sequence Annotations Expand
Reference Sequence

Experimental Data & Validation

Experimental Data

Method: X-RAY DIFFRACTION
Resolution: 1.98 Å
R-Value Free: 0.257 (Depositor), 0.207 (DCC)
R-Value Work: 0.201 (Depositor), 0.204 (DCC)

Space Group: P 2₁ 2₁ 2₁

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 63.89	α = 90
b = 71.34	β = 90
c = 114.92	γ = 90

Software Package:

Software Name	Purpose
REFMAC	refinement
xia2	data reduction
xia2	data scaling
MOLREP	phasing

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2026-07-22

Deposition Author(s):

Funding Organization	Location	Grant Number
British Heart Foundation	United Kingdom	SP/F/23/150045

Revision History (Full details and data files)

Version 1.0: 2026-07-22
Type: Initial release
