2XX4

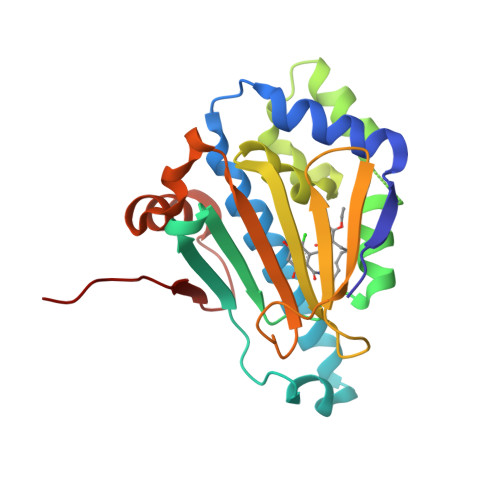

Macrolactone Inhibitor bound to HSP90 N-term


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.20 Å
  • R-Value Free: 0.277
  • R-Value Work: 0.211
  • R-Value Observed: 0.215

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment


This is version 1.3 of the entry. See complete history


Literature

Targeting the Hsp90 Molecular Chaperone with Novel Macrolactams. Synthesis, Structural, Binding, and Cellular Studies.

Day, J.E.Sharp, S.Y.Rowlands, M.G.Aherne, W.Hayes, A.Raynaud, F.I.Lewis, W.Roe, S.M.Prodromou, C.Pearl, L.H.Workman, P.Moody, C.J.

(2011) ACS Chem Biol 6: 1339

  • DOI: https://doi.org/10.1021/cb200196e
  • Primary Citation of Related Structures:
    2XX2, 2XX4, 2XX5

  • PubMed Abstract:

    A series of resorcylic acid macrolactams, nitrogen analogues of the naturally occurring macrolactone radicicol, have been prepared by chemical synthesis and evaluated as inhibitors of heat shock protein 90 (Hsp90), an emerging attractive target for novel cancer therapeutic agents. The synthesis involves, as key steps, ring opening of an isocoumarin intermediate, followed by a ring-closing metathesis reaction to form the macrocycle. Subsequent manipulation of the ester group into a range of amides allows access to a range of new macrolactams following deprotection of the two phenolic groups. These new resorcylic acid lactams exhibit metabolic stability greater than that of related lactone counterparts, while co-crystallization of three macrolactams with the N-terminal domain ATP site of Hsp90 confirms that they bind in a similar way to the natural product radicicol and to our previous synthetic lactone analogues. Interestingly, however, in the case of the N-benzylamide, additional binding to a hydrophobic pocket of the protein was observed. In biological assays, the new macrocyclic lactams exhibit a biological profile equivalent or superior to that of the related lactones and show the established molecular signature of Hsp90 inhibitors in human colon cancer cells.


  • Organizational Affiliation

    School of Chemistry, University of Nottingham, University Park, U.K.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
ATP-DEPENDENT MOLECULAR CHAPERONE HSP82214Saccharomyces cerevisiaeMutation(s): 0
UniProt
Find proteins for P02829 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P02829
Go to UniProtKB:  P02829
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP02829
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 1 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
13I
Query on 13I

Download Ideal Coordinates CCD File
B [auth A](E)-ETHYL 13-CHLORO-14,16-DIHYDROXY-1,11-DIOXO-1,2,3,4,7,8,9,10,11,12-DECAHYDROBENZO[C][1]AZACYCLOTETRADECINE-10-CARBOXYLATE
C20 H26 Cl N O6
YLRTXPICDJPGMD-CVRKFZKPSA-N
Binding Affinity Annotations
IDSourceBinding Affinity
13I PDBBind:  2XX4 IC50: 80 (nM) from 1 assay(s)
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.20 Å
  • R-Value Free: 0.277
  • R-Value Work: 0.211
  • R-Value Observed: 0.215
  • Space Group: P 43 2 2
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 73.736α = 90
b = 73.736β = 90
c = 110γ = 90
Software Package:
Software NamePurpose
PHENIXrefinement
PROTEUM2data reduction
PROTEUM2data scaling
PHASERphasing

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History

Deposition Data

Revision History  (Full details and data files)

  • Version 1.0: 2011-11-16
    Type: Initial release
  • Version 1.1: 2011-12-28
    Changes: Other
  • Version 1.2: 2017-07-05
    Changes: Data collection
  • Version 1.3: 2023-12-20
    Changes: Data collection, Database references, Derived calculations, Other, Refinement description
