2WZ6

G93A SOD1 mutant complexed with Quinazoline.

• PDB DOI: https://doi.org/10.2210/pdb2WZ6/pdb

• Classification: OXIDOREDUCTASE
• Organism(s): Homo sapiens
• Expression System: Saccharomyces cerevisiae
• Mutation(s): Yes


• Deposited: 2009-11-23 Released: 2010-12-08
• Deposition Author(s): Antonyuk, S.V., Strange, R.W., Hasnain, S.S.

---

Experimental Data Snapshot

• Method: X-RAY DIFFRACTION
• Resolution: 1.55 Å
• R-Value Free: 0.248
• R-Value Work: 0.195
• R-Value Observed: 0.198

Starting Model: experimental

Literature

Structural Discovery of Small Molecule Binding Sites in Cu-Zn Human Superoxide Dismutase Familial Amyotrophic Lateral Sclerosis Mutants Provides Insights for Lead Optimization.

Antonyuk, S., Strange, R.W., Hasnain, S.S.

(2010) J Med Chem 53: 1402

• PubMed: 20067275
• DOI: https://doi.org/10.1021/jm9017948
• Primary Citation of Related Structures:
  2WYT, 2WYZ, 2WZ0, 2WZ5, 2WZ6


• PubMed Abstract:


  Dominant inheritance of point mutations in CuZn superoxide dismutase (SOD1) is the best characterized subset of familial amyotrophic lateral sclerosis (FALS) and accounts for some 20% of the known familial cases. We report the discovery and visualization via cocrystallography of two ligand-binding pockets in human SOD1 and its pathogenic mutants that have opened up the real possibility of undertaking lead compound discovery using a fragment-based approach for therapeutic purposes for SOD1 associated motor neuron disease.

---

Organizational Affiliation:

Molecular Biophysics Group, School of Biological Sciences, University of Liverpool, Liverpool L69 7ZB, UK.

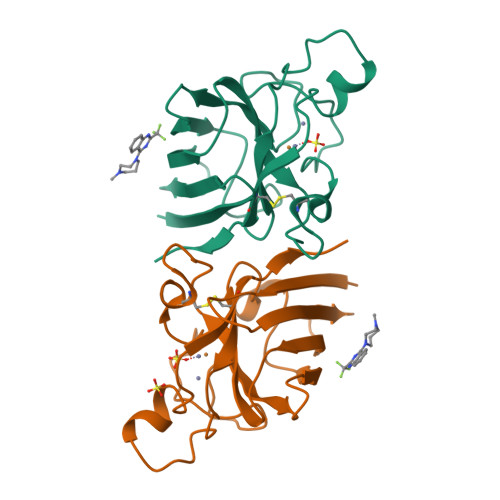

Biological Assembly 1

Global Symmetry: Cyclic - C2  (Explore in 3D)
Global Stoichiometry: Homo 2-mer - A2

Biological assembly 1 assigned by authors and generated by PISA (software)

Macromolecule Content

• Total Structure Weight: 32.98 kDa
• Atom Count: 2,775
• Modelled Residue Count: 306
• Deposited Residue Count: 306
• Unique protein chains: 1

Macromolecules

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
SUPEROXIDE DISMUTASE [CU-ZN]	A, B [auth F]	153	Homo sapiens	Mutation(s): 1  EC: 1.15.1.1
UniProt & NIH Common Fund Data Resources
Find proteins for P00441 (Homo sapiens) Explore P00441  Go to UniProtKB:  P00441
PHAROS:  P00441 GTEx:  ENSG00000142168

Small Molecules

Ligands 4 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram
ZO0	F [auth A], M [auth F]	4-(4-METHYL-1,4-DIAZEPAN-1-YL)-2-(TRIFLUOROMETHYL)QUINAZOLINE C15 H17 F3 N4 VCBLSOZPKMFKJI-UHFFFAOYSA-N
SO4	G [auth A], H [auth F], L [auth F]	SULFATE ION O4 S QAOWNCQODCNURD-UHFFFAOYSA-L
ZN	C [auth A], E [auth A], J [auth F], K [auth F]	ZINC ION Zn PTFCDOFLOPIGGS-UHFFFAOYSA-N
CU	D [auth A], I [auth F]	COPPER (II) ION Cu JPVYNHNXODAKFH-UHFFFAOYSA-N

Experimental Data & Validation

Experimental Data

• Method: X-RAY DIFFRACTION
• Resolution: 1.55 Å
• R-Value Free: 0.248
• R-Value Work: 0.195
• R-Value Observed: 0.198
• Space Group: P 1 2₁ 1

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 38.996	α = 90
b = 68.025	β = 105.88
c = 50.633	γ = 90

Software Package:

Software Name	Purpose
REFMAC	refinement
HKL-2000	data reduction
HKL-2000	data scaling
MOLREP	phasing

Structure Validation

Entry History

Deposition Data

• Released Date: 2010-12-08
Deposition Author(s): Antonyuk, S.V., Strange, R.W., Hasnain, S.S.

Revision History

• Version 1.0: 2010-12-08
  Type: Initial release

• Version 1.1: 2011-08-17
  Changes: Atomic model, Derived calculations, Non-polymer description, Version format compliance
• Version 2.0: 2017-07-12
  Changes: Advisory, Atomic model, Derived calculations, Structure summary
• Version 2.1: 2023-12-20
  Changes: Data collection, Database references, Derived calculations, Other, Refinement description
• Version 2.2: 2024-11-20
  Changes: Structure summary
