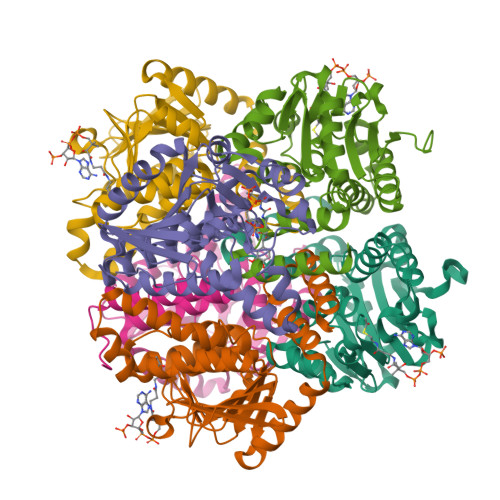

2VSU | pdb_00002vsu

A ternary complex of Hydroxycinnamoyl-CoA Hydratase-Lyase (HCHL) with acetyl-Coenzyme A and vanillin gives insights into substrate specificity and mechanism.


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.90 Å
  • R-Value Free:
    0.230 (Depositor), 0.230 (DCC)
  • R-Value Work:
    0.188 (Depositor), 0.190 (DCC)
  • R-Value Observed:
    0.191 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment

Created with Raphaël 2.3.0Worse 01 BetterLigand structure goodness of fit to experimental dataBest fitted ACOClick on this verticalbar to view detailsBest fitted V55Click on this verticalbar to view details

This is version 1.4 of the entry. See complete history


Literature

A Ternary Complex of Hydroxycinnamoyl-Coa Hydratase-Lyase (Hchl) with Acetyl-Coa and Vanillin Gives Insights Into Substrate Specificity and Mechanism.

Bennett, J.P.Bertin, L.Moulton, B.Fairlamb, I.J.S.Brzozowski, A.M.Walton, N.J.Grogan, G.

(2008) Biochem J 414: 281

  • DOI: https://doi.org/10.1042/BJ20080714
  • Primary Citation of Related Structures:
    2VSS, 2VSU

  • PubMed Abstract:

    HCHL (hydroxycinnamoyl-CoA hydratase-lyase) catalyses the biotransformation of feruloyl-CoA to acetyl-CoA and the important flavour-fragrance compound vanillin (4-hydroxy-3-methoxybenzaldehyde) and is exploited in whole-cell systems for the bioconversion of ferulic acid into natural equivalent vanillin. The reaction catalysed by HCHL has been thought to proceed by a two-step process involving first the hydration of the double bond of feruloyl-CoA and then the cleavage of the resultant beta-hydroxy thioester by retro-aldol reaction to yield the products. Kinetic analysis of active-site residues identified using the crystal structure of HCHL revealed that while Glu-143 was essential for activity, Ser-123 played no major role in catalysis. However, mutation of Tyr-239 to Phe greatly increased the K(M) for the substrate ferulic acid, fulfilling its anticipated role as a factor in substrate binding. Structures of WT (wild-type) HCHL and of the S123A mutant, each of which had been co-crystallized with feruloyl-CoA, reveal a subtle helix movement upon ligand binding, the consequence of which is to bring the phenolic hydroxyl of Tyr-239 into close proximity to Tyr-75 from a neighbouring subunit in order to bind the phenolic hydroxyl of the product vanillin, for which electron density was observed. The active-site residues of ligand-bound HCHL display a remarkable three-dimensional overlap with those of a structurally unrelated enzyme, vanillyl alcohol oxidase, that also recognizes p-hydroxylated aromatic substrates related to vanillin. The data both explain the observed substrate specificity of HCHL for p-hydroxylated cinnamate derivatives and illustrate a remarkable convergence of the molecular determinants of ligand recognition between the two otherwise unrelated enzymes.


  • Organizational Affiliation

    York Structural Biology Laboratory, Department of Chemistry, University of York, Heslington, York YO10 5YW, UK.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
P-HYDROXYCINNAMOYL COA HYDRATASE/LYASE
A, B, D
276Pseudomonas fluorescensMutation(s): 1
EC: 4.2.1.101 (PDB Primary Data), 4.1.2.61 (UniProt)
UniProt
Find proteins for O69762 (Pseudomonas fluorescens)
Explore O69762
Go to UniProtKB:  O69762
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupO69762
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage
P-HYDROXYCINNAMOYL COA HYDRATASE/LYASE275Pseudomonas fluorescensMutation(s): 1
EC: 4.2.1.101 (PDB Primary Data), 4.1.2.61 (UniProt)
UniProt
Find proteins for O69762 (Pseudomonas fluorescens)
Explore O69762
Go to UniProtKB:  O69762
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupO69762
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 3
MoleculeChains Sequence LengthOrganismDetailsImage
P-HYDROXYCINNAMOYL COA HYDRATASE/LYASE276Pseudomonas fluorescensMutation(s): 1
EC: 4.2.1.101 (PDB Primary Data), 4.1.2.61 (UniProt)
UniProt
Find proteins for O69762 (Pseudomonas fluorescens)
Explore O69762
Go to UniProtKB:  O69762
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupO69762
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 4
MoleculeChains Sequence LengthOrganismDetailsImage
P-HYDROXYCINNAMOYL COA HYDRATASE/LYASE276Pseudomonas fluorescensMutation(s): 1
EC: 4.2.1.101 (PDB Primary Data), 4.1.2.61 (UniProt)
UniProt
Find proteins for O69762 (Pseudomonas fluorescens)
Explore O69762
Go to UniProtKB:  O69762
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupO69762
Sequence Annotations
Expand
  • Reference Sequence
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.90 Å
  • R-Value Free:  0.230 (Depositor), 0.230 (DCC)
  • R-Value Work:  0.188 (Depositor), 0.190 (DCC)
  • R-Value Observed: 0.191 (Depositor)
Space Group: P 21 21 21
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 90.081α = 90
b = 130.122β = 90
c = 144.743γ = 90
Software Package:
Software NamePurpose
REFMACrefinement
HKL-2000data reduction
SCALEPACKdata scaling
MOLREPphasing

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment

Created with Raphaël 2.3.0Worse 01 BetterLigand structure goodness of fit to experimental dataBest fitted ACOClick on this verticalbar to view detailsBest fitted V55Click on this verticalbar to view details

Entry History

Deposition Data

Revision History  (Full details and data files)

  • Version 1.0: 2008-05-27
    Type: Initial release
  • Version 1.1: 2011-07-13
    Changes: Advisory, Version format compliance
  • Version 1.2: 2011-08-03
    Changes: Database references, Derived calculations, Non-polymer description
  • Version 1.3: 2022-05-04
    Changes: Advisory, Database references, Derived calculations, Other, Structure summary
  • Version 1.4: 2023-12-13
    Changes: Data collection, Refinement description
