2VKM | pdb_00002vkm

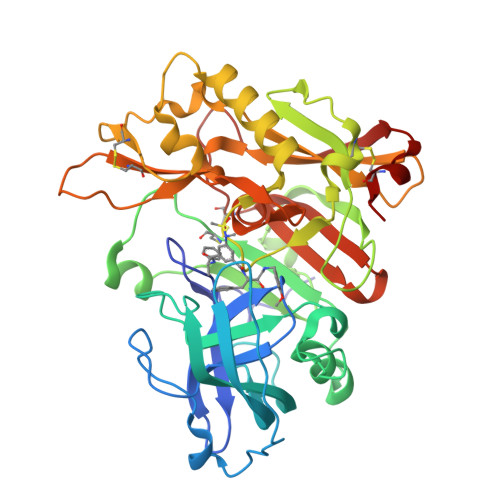

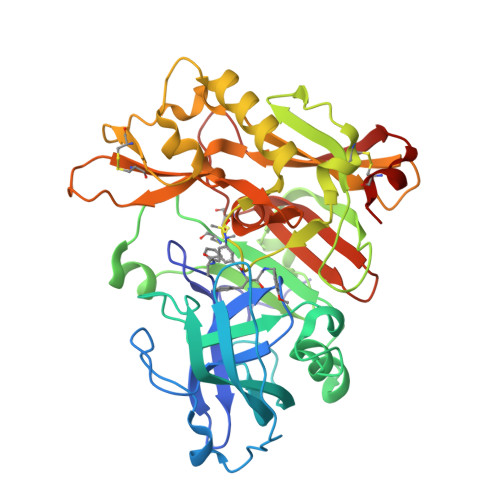

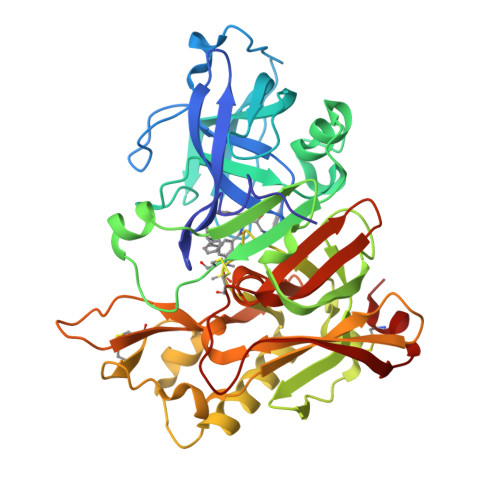

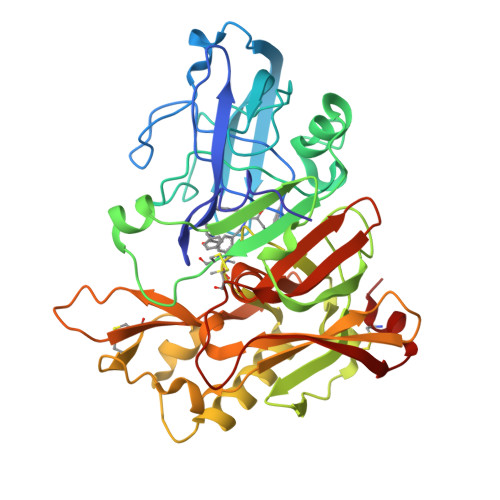

Crystal structure of GRL-8234 bound to BACE (Beta-secretase)


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.05 Å
  • R-Value Free:
    0.242 (Depositor), 0.242 (DCC)
  • R-Value Work:
    0.202 (Depositor), 0.201 (DCC)
  • R-Value Observed:
    0.202 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Validation slider image for 2VKM

Ligand Structure Quality Assessment


This is version 1.4 of the entry. See complete history

Literature

Potent Memapsin 2 (Beta-Secretase) Inhibitors: Design, Synthesis, Protein-Ligand X-Ray Structure, and in Vivo Evaluation.

Ghosh, A.K.Kumaragurubaran, N.Hong, L.Kulkarni, S.Xu, X.Miller, H.B.Reddy, D.S.Weerasena, V.Turner, R.Chang, W.Koelsch, G.Tang, J.

(2008) Bioorg Med Chem Lett 18: 1031

  • DOI: https://doi.org/10.1016/j.bmcl.2007.12.028
  • Primary Citation Related Structures:
    2VKM

  • PubMed Abstract:

    Structure-based design, synthesis, and biological evaluation of a series of peptidomimetic beta-secretase inhibitors incorporating hydroxyethylamine isosteres are described. We have identified inhibitor 24 which has shown exceedingly potent activity in memapsin 2 enzyme inhibitory (K(i) 1.8 nM) and cellular (IC(50)=1 nM in Chinese hamster ovary cells) assays. Inhibitor 24 has also shown very impressive in vivo properties (up to 65% reduction of plasma A beta) in transgenic mice. The X-ray structure of protein-ligand complex of memapsin 2 revealed critical interactions in the memapsin 2 active site.


  • Organizational Affiliation
    • Department of Chemistry, Purdue University, West Lafayette, IN 47907, USA. akghosh@purdue.edu

Macromolecule Content

  • Total Structure Weight: 175.89 kDa
  • Atom Count: 13,184
  • Modeled Residue Count: 1,556
  • Deposited Residue Count: 1,556
  • Unique protein chains: 1

Macromolecules

Find similar proteins by:|  3D Structure
Entity ID: 1
MoleculeChains  Sequence LengthOrganismDetailsImage
BETA-SECRETASE 1
A, B, C, D
389Homo sapiensMutation(s): 0
EC: 3.4.23.46
UniProt & NIH Common Fund Data Resources
Find proteins for P56817 (Homo sapiens)
Explore P56817
Go to UniProtKB:  P56817
PHAROS:  P56817
GTEx:  ENSG00000186318
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP56817
Sequence Annotations
Expand
Reference Sequence

Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.05 Å
  • R-Value Free:  0.242 (Depositor), 0.242 (DCC)
  • R-Value Work:  0.202 (Depositor), 0.201 (DCC)
  • R-Value Observed: 0.202 (Depositor)
Space Group: P 1 21 1
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 86.704α = 90
b = 130.308β = 97.41
c = 87.711γ = 90
Software Package:
Software NamePurpose
CNSrefinement
DENZOdata reduction
SCALEPACKdata scaling
AMoREphasing

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History

Deposition Data

Revision History  (Full details and data files)

  • Version 1.0: 2008-12-16
    Type: Initial release
  • Version 1.1: 2011-05-08
    Changes: Version format compliance
  • Version 1.2: 2011-07-13
    Changes: Version format compliance
  • Version 1.3: 2023-12-13
    Changes: Data collection, Database references, Other, Refinement description
  • Version 1.4: 2024-10-09
    Changes: Structure summary
