28JC | pdb_000028jc

RNA polymerase II bound to RPAP2 and Gdown1


Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 2.94 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

Validation slider image for 28JC

This is version 1.0 of the entry. See complete history

Literature

Structure of human cytoplasmic Pol II complex explains global transcription repression by GDOWN1.

Schmitzova, J.Zhan, Y.Rengachari, S.Grabbe, F.Dybkov, O.Urlaub, H.Lidschreiber, M.Dienemann, C.Cramer, P.

(2026) Nat Commun 17

  • DOI: https://doi.org/10.1038/s41467-026-76334-5
  • Primary Citation Related Structures:
    28JC

  • PubMed Abstract:

    RNA polymerase II (Pol II) is a 12-subunit enzyme crucial for gene transcription in the nucleus. However, its assembly in the cytoplasm, nuclear import, and nuclear function of assembly factors remain poorly understood. Here, we isolated Pol II from the cytoplasmic fraction of human cells (cfPol II) and find it associated with the assembly and transport factors GDOWN1, RPAP2, GPN1, and GPN3. Cryo-EM analysis of cfPol II resolves RPAP2 and GDOWN1 bound to Pol II at 2.9 Å resolution and shows that Pol II is fully assembled in the cytoplasm before nuclear import. Our structure of GDOWN1 bound to the Pol II surface reveals three distinct regions of GDOWN1 that interact with the RPB2 protrusion domain, RPB3, and RPB10. Biochemical analyses show that GDOWN1 facilitates soluble expression of a subcomplex comprising RPB3, RPB10, RPB11 and RPB12, suggesting a role for GDOWN1 in Pol II assembly. Further, GDOWN1 binding to Pol II overlaps with binding sites of the essential transcription factors IIB and IIF, rendering cfPol II inactive in promoter-dependent transcription initiation in vitro. Our results provide a basis for GDOWN1-dependent global transcription repression and suggest a model for a role of GDOWN1 in Pol II assembly, import, and transcription regulation.


  • Organizational Affiliation
    • Department of Molecular Biology, Max Planck Institute for Multidisciplinary Sciences, Göttingen, Germany.

Macromolecule Content

  • Total Structure Weight: 629.19 kDa
  • Atom Count: 29,492
  • Modeled Residue Count: 3,668
  • Deposited Residue Count: 5,567
  • Unique protein chains: 14

Macromolecules

Find similar proteins by:|  3D Structure
Entity ID: 1
MoleculeChains  Sequence LengthOrganismDetailsImage

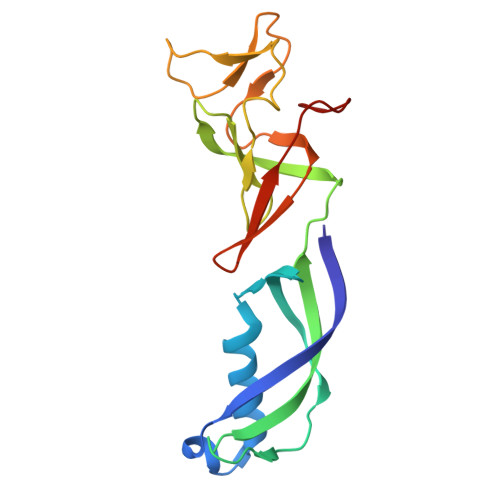

DNA-directed RNA polymerase II subunit RPB4A [auth D]142Homo sapiensMutation(s): 0
Gene Names: POLR2D
UniProt & NIH Common Fund Data Resources
Find proteins for O15514 (Homo sapiens)
Explore O15514
Go to UniProtKB:  O15514
GTEx:  ENSG00000144231
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupO15514
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 2
MoleculeChains  Sequence LengthOrganismDetailsImage

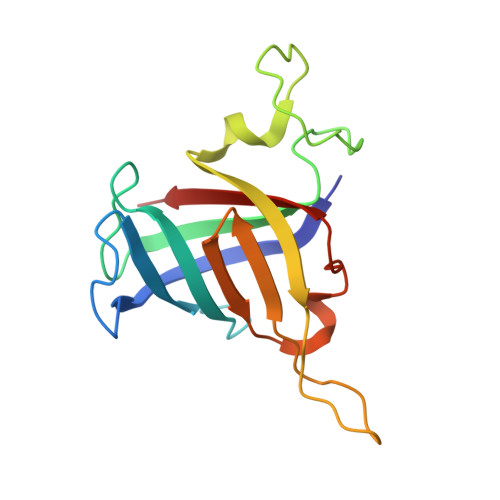

DNA-directed RNA polymerases I, II, and III subunit RPABC1B [auth E]210Homo sapiensMutation(s): 0
Gene Names: POLR2E
UniProt & NIH Common Fund Data Resources
Find proteins for P19388 (Homo sapiens)
Explore P19388
Go to UniProtKB:  P19388
GTEx:  ENSG00000099817
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP19388
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 3
MoleculeChains  Sequence LengthOrganismDetailsImage

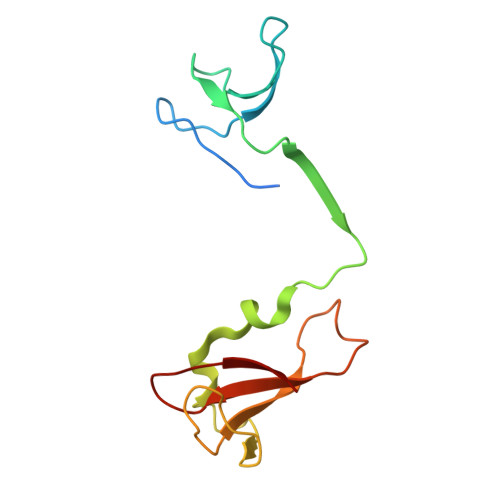

DNA-directed RNA polymerases I, II, and III subunit RPABC2C [auth F]127Homo sapiensMutation(s): 0
Gene Names: POLR2FPOLRF
UniProt & NIH Common Fund Data Resources
Find proteins for P61218 (Homo sapiens)
Explore P61218
Go to UniProtKB:  P61218
GTEx:  ENSG00000100142
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP61218
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 4
MoleculeChains  Sequence LengthOrganismDetailsImage
DNA-directed RNA polymerase II subunit RPB7D [auth G]172Homo sapiensMutation(s): 0
Gene Names: POLR2GRPB7
UniProt & NIH Common Fund Data Resources
Find proteins for P62487 (Homo sapiens)
Explore P62487
Go to UniProtKB:  P62487
GTEx:  ENSG00000168002
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP62487
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 5
MoleculeChains  Sequence LengthOrganismDetailsImage

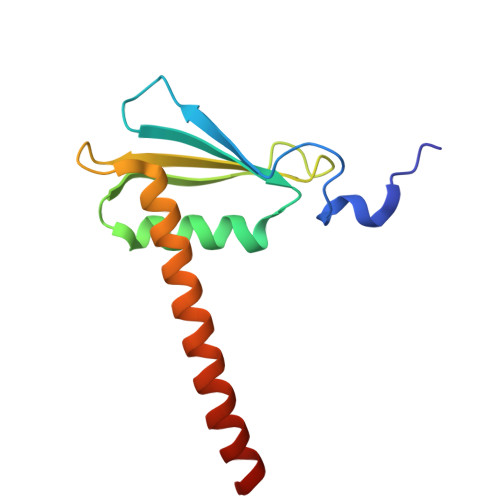

DNA-directed RNA polymerases I, II, and III subunit RPABC3E [auth H]150Homo sapiensMutation(s): 0
Gene Names: POLR2H
UniProt & NIH Common Fund Data Resources
Find proteins for P52434 (Homo sapiens)
Explore P52434
Go to UniProtKB:  P52434
GTEx:  ENSG00000163882
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP52434
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 6
MoleculeChains  Sequence LengthOrganismDetailsImage
DNA-directed RNA polymerase II subunit RPB9F [auth I]125Homo sapiensMutation(s): 0
Gene Names: POLR2I
UniProt & NIH Common Fund Data Resources
Find proteins for P36954 (Homo sapiens)
Explore P36954
Go to UniProtKB:  P36954
GTEx:  ENSG00000105258
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP36954
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 7
MoleculeChains  Sequence LengthOrganismDetailsImage
DNA-directed RNA polymerases I, II, and III subunit RPABC5G [auth J]67Homo sapiensMutation(s): 0
Gene Names: POLR2L
UniProt & NIH Common Fund Data Resources
Find proteins for P62875 (Homo sapiens)
Explore P62875
Go to UniProtKB:  P62875
GTEx:  ENSG00000177700
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP62875
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 8
MoleculeChains  Sequence LengthOrganismDetailsImage
DNA-directed RNA polymerase II subunit RPB11-aH [auth K]117Homo sapiensMutation(s): 0
Gene Names: POLR2JPOLR2J1
UniProt & NIH Common Fund Data Resources
Find proteins for P52435 (Homo sapiens)
Explore P52435
Go to UniProtKB:  P52435
GTEx:  ENSG00000005075
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP52435
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 9
MoleculeChains  Sequence LengthOrganismDetailsImage
DNA-directed RNA polymerases I, II, and III subunit RPABC4I [auth L]58Homo sapiensMutation(s): 0
Gene Names: POLR2K
UniProt & NIH Common Fund Data Resources
Find proteins for P53803 (Homo sapiens)
Explore P53803
Go to UniProtKB:  P53803
GTEx:  ENSG00000147669
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP53803
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 10
MoleculeChains  Sequence LengthOrganismDetailsImage
DNA-directed RNA polymerase II subunit GRINL1AJ [auth M]368Homo sapiensMutation(s): 0
Gene Names: POLR2MGRINL1A
UniProt & NIH Common Fund Data Resources
Find proteins for P0CAP2 (Homo sapiens)
Explore P0CAP2
Go to UniProtKB:  P0CAP2
GTEx:  ENSG00000255529
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0CAP2
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 11
MoleculeChains  Sequence LengthOrganismDetailsImage
DNA-directed RNA polymerase II subunit RPB1K [auth A]1,970Homo sapiensMutation(s): 0
Gene Names: POLR2APOLR2
EC: 2.7.7.6 (PDB Primary Data), 3.1.13 (PDB Primary Data), 2.7.7.48 (PDB Primary Data)
UniProt
Find proteins for P24928 (Homo sapiens)
Explore P24928
Go to UniProtKB:  P24928
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP24928
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 12
MoleculeChains  Sequence LengthOrganismDetailsImage
DNA-directed RNA polymerase II subunit RPB2L [auth B]1,174Homo sapiensMutation(s): 0
Gene Names: POLR2B
EC: 2.7.7.6 (PDB Primary Data), 3.1.13 (PDB Primary Data), 2.7.7.48 (PDB Primary Data)
UniProt & NIH Common Fund Data Resources
Find proteins for P30876 (Homo sapiens)
Explore P30876
Go to UniProtKB:  P30876
GTEx:  ENSG00000047315
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP30876
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 13
MoleculeChains  Sequence LengthOrganismDetailsImage
DNA-directed RNA polymerase II subunit RPB3M [auth C]275Homo sapiensMutation(s): 0
Gene Names: POLR2CA-152E5.7
UniProt & NIH Common Fund Data Resources
Find proteins for P19387 (Homo sapiens)
Explore P19387
Go to UniProtKB:  P19387
GTEx:  ENSG00000102978
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP19387
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 14
MoleculeChains  Sequence LengthOrganismDetailsImage
Putative RNA polymerase II subunit B1 CTD phosphatase RPAP2612Homo sapiensMutation(s): 0
Gene Names: RPAP2C1orf82
EC: 3.1.3.16
UniProt & NIH Common Fund Data Resources
Find proteins for Q8IXW5 (Homo sapiens)
Explore Q8IXW5
Go to UniProtKB:  Q8IXW5
GTEx:  ENSG00000122484
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ8IXW5
Sequence Annotations
Expand
Reference Sequence

Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 2.94 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE
EM Software:
TaskSoftware PackageVersion
MODEL REFINEMENTPHENIX1.20.1_4487
RECONSTRUCTIONRELION

Structure Validation

View Full Validation Report



Entry History

& Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Max Planck SocietyGermany--

Revision History  (Full details and data files)

  • Version 1.0: 2026-08-19
    Type: Initial release
