28IZ | pdb_000028iz

Structure of the human two pore domain potassium ion channel TASK-3 L122V mutant (K2P9.1)


Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 2.83 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Validation slider image for 28IZ

This is version 1.0 of the entry. See complete history

Literature

Equivalent gain-of-function variants in KCNK3 and KCNK9 and their contribution to distinct TASK K2P channelopathies.

Crowther, K.M.Jouen-Tachoire, T.R.H.Proks, P.Hall, P.R.Veale, E.L.Sormann, J.Rodstrom, K.E.J.Muller, T.Wortmann, S.B.Barisic, N.Hauser, N.Salpietro, V.Forsyth, R.Williams, L.Derrabi, N.Bacino, C.A.Rosenfeld, J.A.Houlden, H.Newstead, S.Wright, C.F.Fasham, J.Mathie, A.A.Maroofian, R.Tucker, S.J.

(2026) J Gen Physiol 158

  • DOI: https://doi.org/10.1085/jgp.202613989
  • Primary Citation Related Structures:
    28IZ

  • PubMed Abstract:

    Gain-of-function (GoF) missense variants in the two-pore domain (K2P) K+ channel TASK-1 (KCNK3) result in developmental delay with sleep apnea (DDSA), a neurodevelopmental channelopathy, while loss-of-function (LoF) variants cause pulmonary arterial hypertension. However, for the related TASK-3 channel (KCNK9), both LoF and GoF variants underlie a distinct neurodevelopmental disorder, KCNK9 imprinting syndrome (KIS). The relationship between genotype and phenotype in these disorders is further complicated because TASK-1 and TASK-3 can co-assemble into heteromeric channels with distinct functional properties. Here, we report additional patients with missense variants in KCNK3 and KCNK9 and investigate the effect of four novel genetic variants on the functional properties of homomeric and heteromeric TASK channels. Interestingly, two of these new pathogenic GoF variants (R131H and L122V) are found in both TASK-1 and TASK-3 and have equivalent functional effects on heteromeric TASK-1/TASK-3 channel activity, yet result in different clinical phenotypes. We have also determined a cryo-EM structure for the pathogenic L122V mutant TASK-3 channel, which suggests that subtle changes in gating and permeation within the inner cavity are responsible for its activatory effect. Overall, these results highlight the dominant role that homomeric TASK channels likely play in defining their associated channelopathies as well as the complexity of interpreting K+ channel dysfunction in pathophysiology.


  • Organizational Affiliation
    • Clarendon Laboratory, Department of Physics, University of Oxford, Oxford, UK.

Macromolecule Content

  • Total Structure Weight: 63.67 kDa
  • Atom Count: 4,150
  • Modeled Residue Count: 520
  • Deposited Residue Count: 534
  • Unique protein chains: 1

Macromolecules

Find similar proteins by:|  3D Structure
Entity ID: 1
MoleculeChains  Sequence LengthOrganismDetailsImage

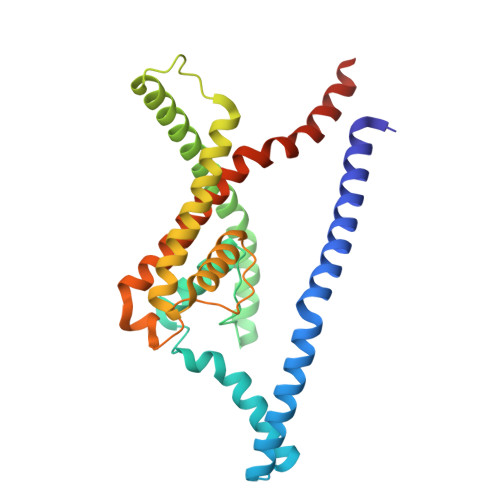

Potassium channel subfamily K member 9
A, B
267Homo sapiensMutation(s): 1
Gene Names: KCNK9TASK3
UniProt & NIH Common Fund Data Resources
Find proteins for Q9NPC2 (Homo sapiens)
Explore Q9NPC2
Go to UniProtKB:  Q9NPC2
GTEx:  ENSG00000169427
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9NPC2
Sequence Annotations
Expand
Reference Sequence

Small Molecules

Ligands 2 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
Y01

Query on Y01



Download:Ideal Coordinates CCD File
G [auth A]
H [auth A]
I [auth A]
J [auth B]
K [auth B]
G [auth A],
H [auth A],
I [auth A],
J [auth B],
K [auth B],
L [auth B]
CHOLESTEROL HEMISUCCINATE
C31 H50 O4
WLNARFZDISHUGS-MIXBDBMTSA-N
K

Query on K



Download:Ideal Coordinates CCD File
C [auth A],
D [auth A],
E [auth A],
F [auth A]
POTASSIUM ION
K
NPYPAHLBTDXSSS-UHFFFAOYSA-N

Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 2.83 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE
EM Software:
TaskSoftware PackageVersion
MODEL REFINEMENTPHENIX1.21.2_5419
RECONSTRUCTIONcryoSPARC4.6.2

Structure Validation

View Full Validation Report



Entry History

& Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Biotechnology and Biological Sciences Research Council (BBSRC)United KingdomBB/T002018/1
Biotechnology and Biological Sciences Research Council (BBSRC)United KingdomBB/S008608/1
Medical Research Council (MRC, United Kingdom)United KingdomMR/W017741/1

Revision History  (Full details and data files)

  • Version 1.0: 2026-08-19
    Type: Initial release
