25GN | pdb_000025gn

receptor-arrestin

PDB DOI: https://doi.org/10.2210/pdb25GN/pdb
EM Map EMD-80088: EMDB EMDataResource

Classification: MEMBRANE PROTEIN
Organism(s): Homo sapiens
Expression System: Trichoplusia ni
Mutation(s): No

Deposited: 2026-04-02 Released: 2026-08-26
Deposition Author(s): Fei, X., Zhibin, Z.
Funding Organization(s): Not funded

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 3.20 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

Validation slider image for 25GN

This is version 1.0 of the entry. See complete history.

Literature

Direct beta-arrestin engagement by the non-canonical WNT receptor FZD6 via a shallow binding pocket

Zhang, Z.B., Lin, X., Li, M.R., Pan, Y.R., Kang, Q., Xu, F., Zhu, X.J.

(2026) Acta Pharmacol Sin

DOI: https://doi.org/10.1038/s41401-026-01902-w

Macromolecule Content

Total Structure Weight: 131.83 kDa
Atom Count: 6,853
Modeled Residue Count: 902
Deposited Residue Count: 1,163
Unique protein chains: 4

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

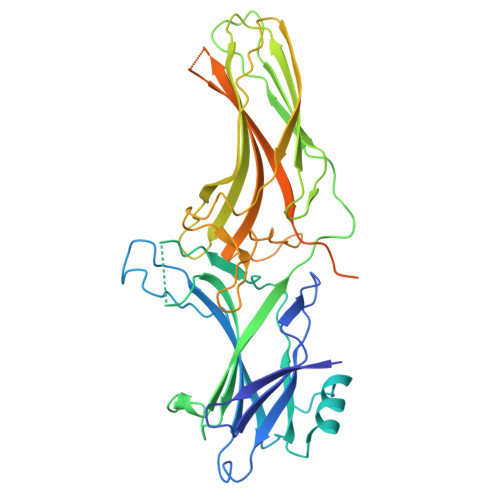

Isoform 1B of Beta-arrestin-1	A [auth C]	410	Homo sapiens	Mutation(s): 0 Gene Names: ARRB1, ARR1
UniProt & NIH Common Fund Data Resources
Find proteins for P49407 (Homo sapiens) Go to UniProtKB: P49407
GTEx: ENSG00000137486
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P49407-2
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

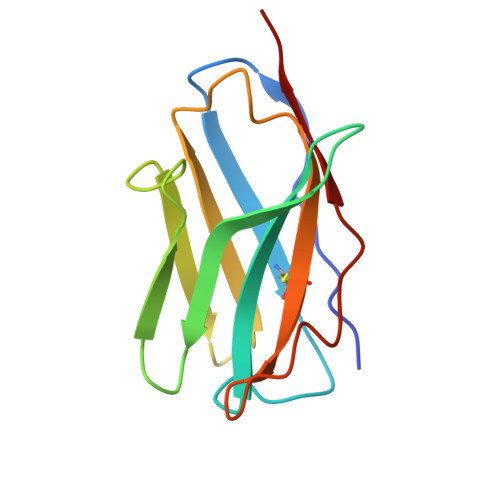

heavy chain of scFv30	B [auth H]	121	Homo sapiens	Mutation(s): 0
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

Entity ID: 3
Molecule	Chains	Sequence Length	Organism	Details	Image

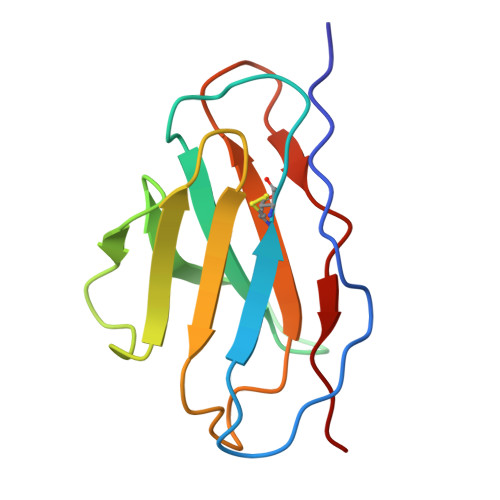

light chain of scFv30	C [auth L]	108	Homo sapiens	Mutation(s): 0
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

Entity ID: 4
Molecule	Chains	Sequence Length	Organism	Details	Image

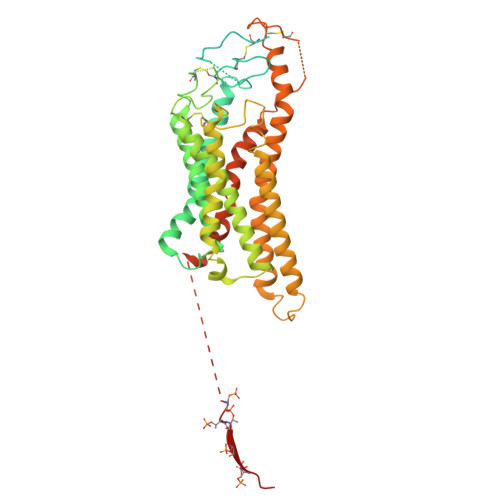

Frizzled-6	D [auth R]	524	Homo sapiens	Mutation(s): 0 Gene Names: FZD6
UniProt & NIH Common Fund Data Resources
Find proteins for O60353 (Homo sapiens) Explore O60353 Go to UniProtKB: O60353
GTEx: ENSG00000164930
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	O60353
Sequence Annotations Expand
Reference Sequence

Small Molecules

Modified Residues 2 Unique
ID	Chains	Type	Formula	2D Diagram	Parent
SEP Query on SEP	D [auth R]	L-PEPTIDE LINKING	C₃ H₈ N O₆ P		SER
TPO Query on TPO	D [auth R]	L-PEPTIDE LINKING	C₄ H₁₀ N O₆ P		THR

Experimental Data & Validation

Experimental Data

Method: ELECTRON MICROSCOPY
Resolution: 3.20 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
MODEL REFINEMENT	PHENIX	1.21.2_5419
RECONSTRUCTION	cryoSPARC

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2026-08-26

Deposition Author(s):

Funding Organization	Location	Grant Number
Not funded		--

Revision History (Full details and data files)

Version 1.0: 2026-08-26
Type: Initial release
