24OS | pdb_000024os

Crystal Structure of BRD3 BD1 domain in complex with small molecule inhibitor IBET-762

PDB DOI: https://doi.org/10.2210/pdb24OS/pdb

Classification: TRANSCRIPTION
Organism(s): Homo sapiens
Expression System: Escherichia coli BL21(DE3)
Mutation(s): No

Deposited: 2026-03-13 Released: 2026-03-25
Deposition Author(s): Jwala, N., Chandrasekhar, A., NarasimhaRao, K.
Funding Organization(s): Other private

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 1.83 Å
R-Value Free:
0.314 (Depositor), 0.303 (DCC)
R-Value Work:
0.249 (Depositor), 0.255 (DCC)
R-Value Observed:
0.252 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Validation slider image for 24OS

Ligand Structure Quality Assessment

This is version 1.0 of the entry. See complete history.

Literature

Crystal Structure of BRD3 BD1 domain in complex with small molecule inhibitor IBET-762

Jwala, N., Chandrasekhar, A., NarasimhaRao, K.

To be published.

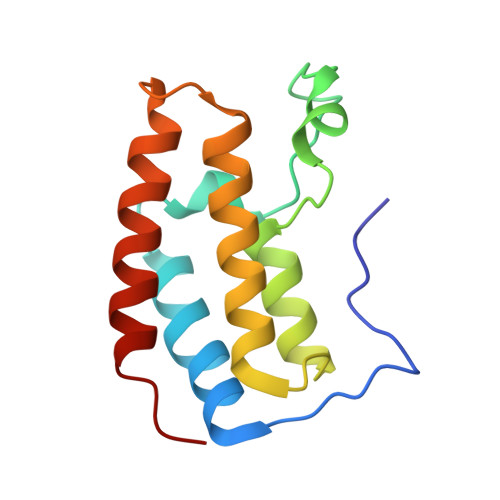

Macromolecule Content

Total Structure Weight: 29.76 kDa
Atom Count: 2,179
Modeled Residue Count: 242
Deposited Residue Count: 244
Unique protein chains: 1

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
Bromodomain-containing protein 3	A, B	122	Homo sapiens	Mutation(s): 0 Gene Names: BRD3, KIAA0043, RING3L
UniProt & NIH Common Fund Data Resources
Find proteins for Q15059 (Homo sapiens) Explore Q15059 Go to UniProtKB: Q15059
PHAROS: Q15059 GTEx: ENSG00000169925
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q15059
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
EAM (Subject of Investigation/LOI) Query on EAM Download:Ideal Coordinates CCD File SDF format, chain C [auth A] SDF format, chain D [auth B] MOL2 format, chain C [auth A] MOL2 format, chain D [auth B] mmCIF format, chain C [auth A] mmCIF format, chain D [auth B]	C [auth A], D [auth B]	2-[(4S)-6-(4-chlorophenyl)-8-methoxy-1-methyl-4H-[1,2,4]triazolo[4,3-a][1,4]benzodiazepin-4-yl]-N-ethylacetamide C₂₂ H₂₂ Cl N₅ O₂ AAAQFGUYHFJNHI-SFHVURJKSA-N		Interactions Focus chain C [auth A] Focus chain D [auth B] Interactions & Density Focus chain C [auth A] Focus chain D [auth B]

Experimental Data & Validation

Experimental Data

Method: X-RAY DIFFRACTION
Resolution: 1.83 Å
R-Value Free: 0.314 (Depositor), 0.303 (DCC)
R-Value Work: 0.249 (Depositor), 0.255 (DCC)
R-Value Observed: 0.252 (Depositor)

Space Group: P 2₁ 2₁ 2₁

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 43.171	α = 90
b = 55.355	β = 90
c = 122.334	γ = 90

Software Package:

Software Name	Purpose
REFMAC	refinement
HKL-3000	data reduction
HKL-3000	data scaling
MOLREP	phasing

Structure Validation

View Full Validation Report

Ligand Structure Quality Assessment

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2026-03-25

Deposition Author(s):

Chandrasekhar, A.

NarasimhaRao, K.

Funding Organization	Location	Grant Number
Other private	India	--

Revision History (Full details and data files)

Version 1.0: 2026-03-25
Type: Initial release
