23ES | pdb_000023es

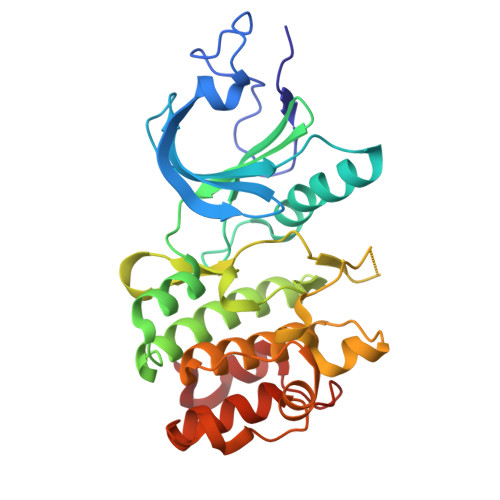

Crystal structure of human PKMYT1 protein kinase domain with Naphthyridinone Inhibitor compound 11

PDB DOI: https://doi.org/10.2210/pdb23ES/pdb

Classification: TRANSFERASE
Organism(s): Homo sapiens
Expression System: Escherichia coli BL21(DE3)
Mutation(s): No

Deposited: 2026-02-04 Released: 2026-03-25
Deposition Author(s): Xu, Z., Chen, S.
Funding Organization(s): Not funded

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 1.74 Å
R-Value Free:
0.240 (Depositor), 0.240 (DCC)
R-Value Work:
0.200 (Depositor), 0.201 (DCC)
R-Value Observed:
0.202 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Ligand Structure Quality Assessment

This is version 1.0 of the entry. See complete history.

Literature

Discovery of Naphthyridinone Derivatives as Selective PKMYT1/WEE1 Dual Inhibitors

Xu, Z.H., Chen, S.

To be published.

Macromolecule Content

Total Structure Weight: 64.6 kDa
Atom Count: 4,906
Modeled Residue Count: 563
Deposited Residue Count: 572
Unique protein chains: 1

Macromolecules

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
Membrane-associated tyrosine- and threonine-specific cdc2-inhibitory kinase	A, B	286	Homo sapiens	Mutation(s): 0 Gene Names: PKMYT1, MYT1 EC: 2.7.11.1
UniProt & NIH Common Fund Data Resources
Find proteins for Q99640 (Homo sapiens) Explore Q99640 Go to UniProtKB: Q99640
PHAROS: Q99640 GTEx: ENSG00000127564
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	Q99640
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 2 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
A1E5A (Subject of Investigation/LOI) Query on A1E5A Download Ideal Coordinates CCD File SDF format, chain C [auth A] SDF format, chain F [auth B] MOL2 format, chain C [auth A] MOL2 format, chain F [auth B] mmCIF format, chain C [auth A] mmCIF format, chain F [auth B]	C [auth A], F [auth B]	3-azanyl-5-chloranyl-4-(7-fluoranyl-2H-indazol-4-yl)-7-methyl-1H-1,6-naphthyridin-2-one C₁₆ H₁₁ Cl F N₅ O CUNCXCTTWGBCLJ-UHFFFAOYSA-N		Interactions Focus chain C [auth A] Focus chain F [auth B] Interactions & Density Focus chain C [auth A] Focus chain F [auth B]
SO4 Query on SO4 Download Ideal Coordinates CCD File SDF format, chain D [auth A] SDF format, chain E [auth A] SDF format, chain G [auth B] SDF format, chain H [auth B] SDF format, chain I [auth B] SDF format, chain J [auth B] SDF format, chain K [auth B] SDF format, chain L [auth B] MOL2 format, chain D [auth A] MOL2 format, chain E [auth A] MOL2 format, chain G [auth B] MOL2 format, chain H [auth B] MOL2 format, chain I [auth B] MOL2 format, chain J [auth B] MOL2 format, chain K [auth B] MOL2 format, chain L [auth B] mmCIF format, chain D [auth A] mmCIF format, chain E [auth A] mmCIF format, chain G [auth B] mmCIF format, chain H [auth B] mmCIF format, chain I [auth B] mmCIF format, chain J [auth B] mmCIF format, chain K [auth B] mmCIF format, chain L [auth B]	D [auth A] E [auth A] G [auth B] H [auth B] I [auth B] D [auth A], E [auth A], G [auth B], H [auth B], I [auth B], J [auth B], K [auth B], L [auth B]	SULFATE ION O₄ S QAOWNCQODCNURD-UHFFFAOYSA-L		Interactions Focus chain D [auth A] Focus chain E [auth A] Focus chain G [auth B] Focus chain H [auth B] Focus chain I [auth B] Focus chain J [auth B] Focus chain K [auth B] Focus chain L [auth B] Interactions & Density Focus chain D [auth A] Focus chain E [auth A] Focus chain G [auth B] Focus chain H [auth B] Focus chain I [auth B] Focus chain J [auth B] Focus chain K [auth B] Focus chain L [auth B]
