23EQ | pdb_000023eq

Artificial Copper-binding trimeric protein 1 (Cu(I)TP1)

PDB DOI: https://doi.org/10.2210/pdb23EQ/pdb

Classification: METAL BINDING PROTEIN
Organism(s): Thermus thermophilus
Expression System: Escherichia coli
Mutation(s): Yes

Deposited: 2026-02-04 Released: 2026-07-15
Deposition Author(s): Choi, I., Song, W.J.
Funding Organization(s): National Research Foundation (NRF, Korea)

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 1.81 Å
R-Value Free:
0.259 (Depositor), 0.259 (DCC)
R-Value Work:
0.230 (Depositor), 0.230 (DCC)
R-Value Observed:
0.232 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Validation slider image for 23EQ

This is version 1.0 of the entry. See complete history.

Literature

Artificial Copper-binding trimeric protein 1 (Cu(I)TP1)

Choi, I., Song, W.J.

To be published.

Macromolecule Content

Total Structure Weight: 40.58 kDa
Atom Count: 2,335
Modeled Residue Count: 284
Deposited Residue Count: 360
Unique protein chains: 1

Macromolecules

Find similar proteins by:

Entity ID: 1

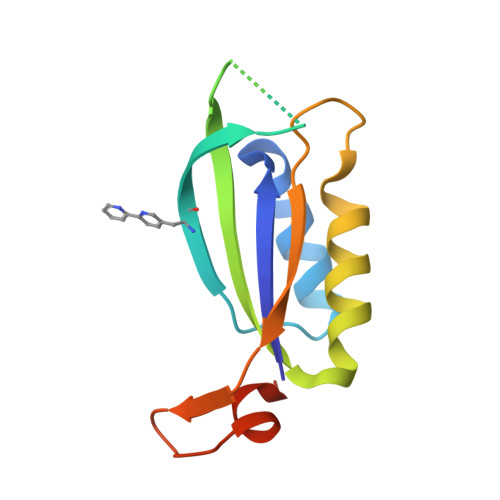

Molecule	Chains	Sequence Length	Organism	Details	Image
Signaling protein	A, B, C	120	Thermus thermophilus	Mutation(s): 1
UniProt
Find proteins for P83820 (Thermus thermophilus) Explore P83820 Go to UniProtKB: P83820
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P83820
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
CU1 Query on CU1 Download:Ideal Coordinates CCD File SDF format, chain D [auth A] MOL2 format, chain D [auth A] mmCIF format, chain D [auth A]	D [auth A]	COPPER (I) ION Cu VMQMZMRVKUZKQL-UHFFFAOYSA-N		Interactions Focus chain D [auth A] Interactions & Density Focus chain D [auth A]

Modified Residues 1 Unique
ID	Chains	Type	Formula	2D Diagram	Parent
BP5 Query on BP5	A, B, C	L-PEPTIDE LINKING	C₁₃ H₁₃ N₃ O₂		ALA

Experimental Data & Validation

Experimental Data

Method: X-RAY DIFFRACTION
Resolution: 1.81 Å
R-Value Free: 0.259 (Depositor), 0.259 (DCC)
R-Value Work: 0.230 (Depositor), 0.230 (DCC)
R-Value Observed: 0.232 (Depositor)

Space Group: P 2₁ 2₁ 2₁

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 45.86	α = 90
b = 78.48	β = 90
c = 85.81	γ = 90

Software Package:

Software Name	Purpose
PHENIX	refinement
XDS	data reduction
XDS	data scaling
MOLREP	phasing

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2026-07-15

Deposition Author(s):

Funding Organization	Location	Grant Number
National Research Foundation (NRF, Korea)	Korea, Republic Of	--

Revision History (Full details and data files)

Version 1.0: 2026-07-15
Type: Initial release
