23CP | pdb_000023cp

Cryo-EM structure of RSC complex from Chaetomium thermophilum

Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 3.12 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

Validation slider image for 23CP

This is version 1.0 of the entry. See complete history.

Literature

Structural principles underlying the evolution of SWI/SNF chromatin remodelers

Ma, S.S., Liu, M.D., Xu, W.C., Wang, Q.M., Wang, X.M., Huang, Y.G., Li, M.C., Li, C.H., Shen, Q.T., Chen, Y.

(2026) Sci Adv

Macromolecule Content

  • Total Structure Weight: 908.64 kDa
  • Atom Count: 25,978
  • Modeled Residue Count: 3,265
  • Deposited Residue Count: 8,184
  • Unique protein chains: 9

Macromolecules

Find similar proteins by:
|  3D Structure
Entity ID: 1
MoleculeChains  Sequence LengthOrganismDetailsImage

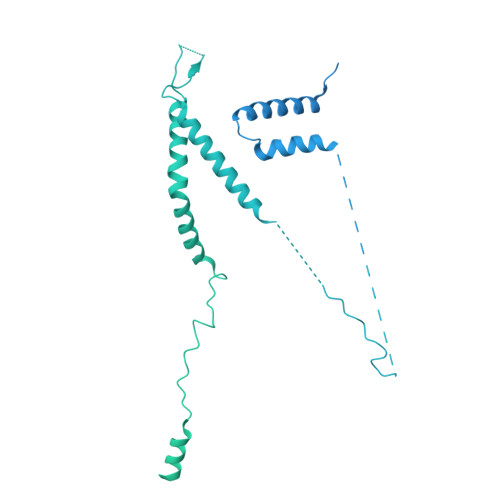

WD40 repeat-containing proteinA [auth K]1,595Thermochaetoides thermophila DSM 1495Mutation(s): 0
Gene Names: CTHT_0069670
UniProt
Find proteins for G0SHD8 (Thermochaetoides thermophila (strain DSM 1495 / CBS 144.50 / DAOM 24625 / IMI 039719))
Explore G0SHD8
Go to UniProtKB:  G0SHD8
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupG0SHD8
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure
Entity ID: 2
MoleculeChains  Sequence LengthOrganismDetailsImage

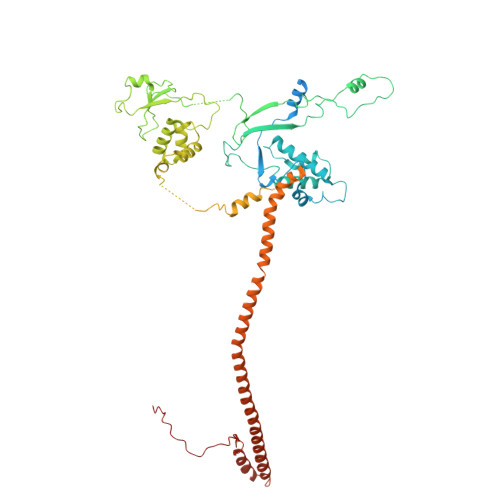

Ssr1B [auth N],
C [auth O]		694Thermochaetoides thermophila DSM 1495Mutation(s): 0
Gene Names: CTHT_0034160
UniProt
Find proteins for G0S647 (Thermochaetoides thermophila (strain DSM 1495 / CBS 144.50 / DAOM 24625 / IMI 039719))
Explore G0S647
Go to UniProtKB:  G0S647
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupG0S647
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure
Entity ID: 3
MoleculeChains  Sequence LengthOrganismDetailsImage

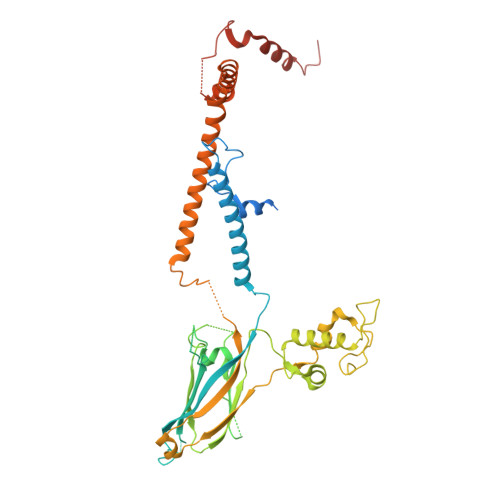

DM2 domain-containing proteinD [auth P]547Thermochaetoides thermophila DSM 1495Mutation(s): 0
Gene Names: CTHT_0007300
UniProt
Find proteins for G0RYN3 (Thermochaetoides thermophila (strain DSM 1495 / CBS 144.50 / DAOM 24625 / IMI 039719))
Explore G0RYN3
Go to UniProtKB:  G0RYN3
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupG0RYN3
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure
Entity ID: 4
MoleculeChains  Sequence LengthOrganismDetailsImage

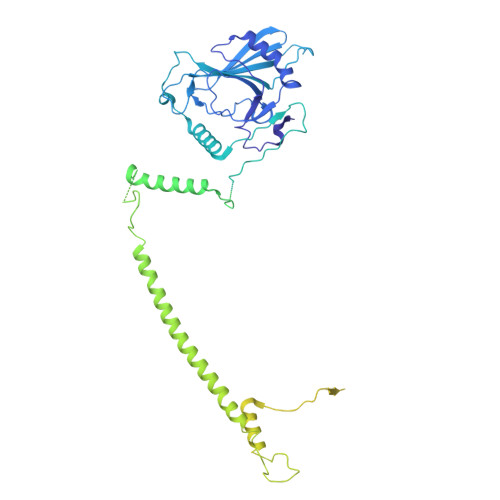

DUF1750-domain-containing proteinE [auth Q]769Thermochaetoides thermophila DSM 1495Mutation(s): 0
Gene Names: CTHT_0060280
UniProt
Find proteins for G0SEZ9 (Thermochaetoides thermophila (strain DSM 1495 / CBS 144.50 / DAOM 24625 / IMI 039719))
Explore G0SEZ9
Go to UniProtKB:  G0SEZ9
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupG0SEZ9
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure
Entity ID: 5
MoleculeChains  Sequence LengthOrganismDetailsImage

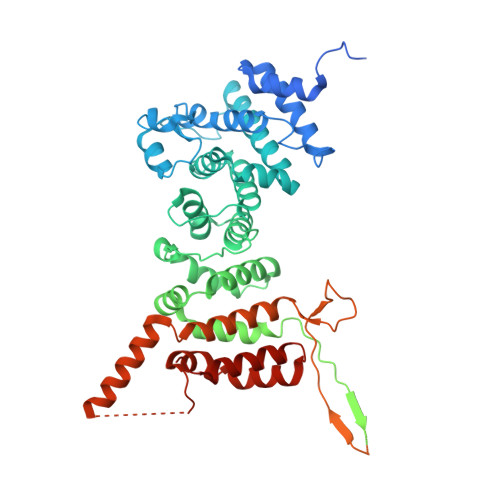

Putative chromatin structure-remodeling complex proteinF [auth R]763Thermochaetoides thermophila DSM 1495Mutation(s): 0
Gene Names: CTHT_0044130
UniProt
Find proteins for G0S909 (Thermochaetoides thermophila (strain DSM 1495 / CBS 144.50 / DAOM 24625 / IMI 039719))
Explore G0S909
Go to UniProtKB:  G0S909
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupG0S909
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure
Entity ID: 6
MoleculeChains  Sequence LengthOrganismDetailsImage

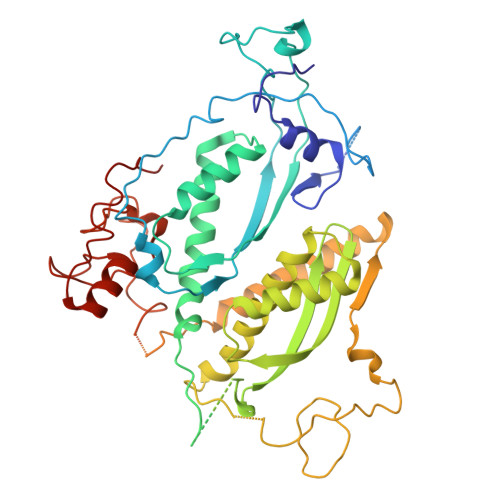

Putative chromatin structure-remodeling complex proteinG [auth S]607Thermochaetoides thermophila DSM 1495Mutation(s): 0
Gene Names: CTHT_0030980
UniProt
Find proteins for G0S475 (Thermochaetoides thermophila (strain DSM 1495 / CBS 144.50 / DAOM 24625 / IMI 039719))
Explore G0S475
Go to UniProtKB:  G0S475
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupG0S475
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure
Entity ID: 7
MoleculeChains  Sequence LengthOrganismDetailsImage

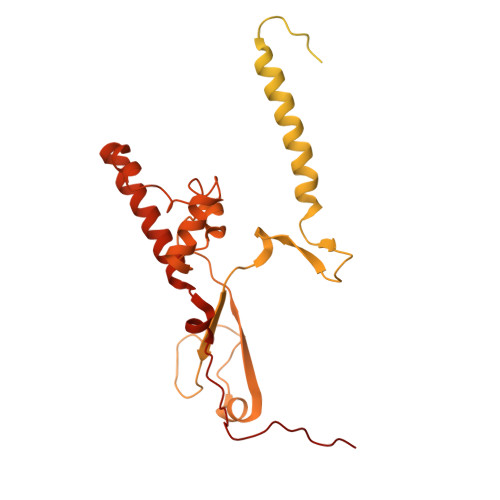

Rsc7H [auth T]534Thermochaetoides thermophila DSM 1495Mutation(s): 0
Gene Names: CTHT_0035010
UniProt
Find proteins for G0S6N5 (Thermochaetoides thermophila (strain DSM 1495 / CBS 144.50 / DAOM 24625 / IMI 039719))
Explore G0S6N5
Go to UniProtKB:  G0S6N5
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupG0S6N5
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure
Entity ID: 8
MoleculeChains  Sequence LengthOrganismDetailsImage

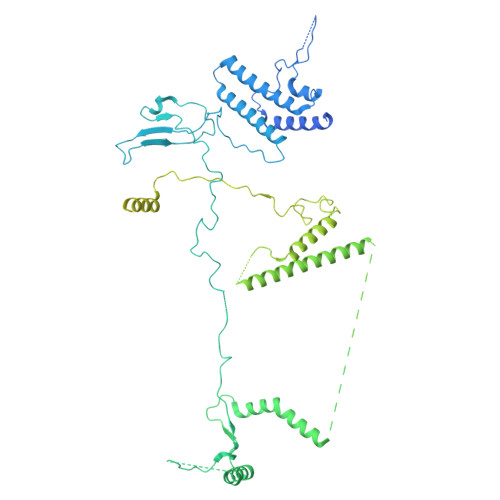

Rsc58I [auth V]990Thermochaetoides thermophila DSM 1495Mutation(s): 0
Gene Names: CTHT_0016300
UniProt
Find proteins for G0S281 (Thermochaetoides thermophila (strain DSM 1495 / CBS 144.50 / DAOM 24625 / IMI 039719))
Explore G0S281
Go to UniProtKB:  G0S281
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupG0S281
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure
Entity ID: 9
MoleculeChains  Sequence LengthOrganismDetailsImage

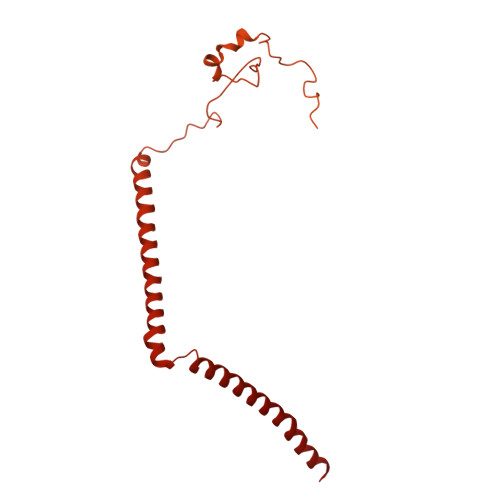

Rsc1J [auth U]991Thermochaetoides thermophila DSM 1495Mutation(s): 0
Gene Names: CTHT_0048940
UniProt
Find proteins for G0SB54 (Thermochaetoides thermophila (strain DSM 1495 / CBS 144.50 / DAOM 24625 / IMI 039719))
Explore G0SB54
Go to UniProtKB:  G0SB54
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupG0SB54
Sequence Annotations
Expand
Reference Sequence

Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 3.12 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE
EM Software:
TaskSoftware PackageVersion
RECONSTRUCTIONcryoSPARC
MODEL REFINEMENTPHENIX

Structure Validation

View Full Validation Report



View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Funding OrganizationLocationGrant Number
Ministry of Science and Technology (MoST, China)China2023YFA1800403

Revision History  (Full details and data files)

  • Version 1.0: 2026-08-12
    Type: Initial release
