22IX | pdb_000022ix

cryo-ET subtomogram-averaged structure of mouse heavy-chain apoferritin resolved at 2.71 Angstroms

PDB DOI: https://doi.org/10.2210/pdb22IX/pdb
EM Map EMD-68355: EMDB EMDataResource

Classification: OXIDOREDUCTASE
Organism(s): Mus musculus
Expression System: Escherichia coli
Mutation(s): No

Deposited: 2026-01-13 Released: 2026-01-28
Deposition Author(s): Mazmanian, K., Wang, C.H., Hsu, S.T., Wu, K.P., Chang, Y.C.
Funding Organization(s): Academia Sinica (Taiwan)

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 2.71 Å
Aggregation State: PARTICLE
Reconstruction Method: SUBTOMOGRAM AVERAGING

wwPDB Validation 3D Report Full Report

Validation slider image for 22IX

This is version 1.0 of the entry. See complete history.

Literature

cryo-ET subtomogram-averaged structure of mouse heavy-chain apoferritin resolved at 2.71 Angstroms

Mazmanian, K., Wang, C.H., Hsu, S.T., Wu, K.P., Chang, Y.C.

To be published.

Macromolecule Content

Total Structure Weight: 507.27 kDa
Atom Count: 34,238
Modeled Residue Count: 4,176
Deposited Residue Count: 4,368
Unique protein chains: 1

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

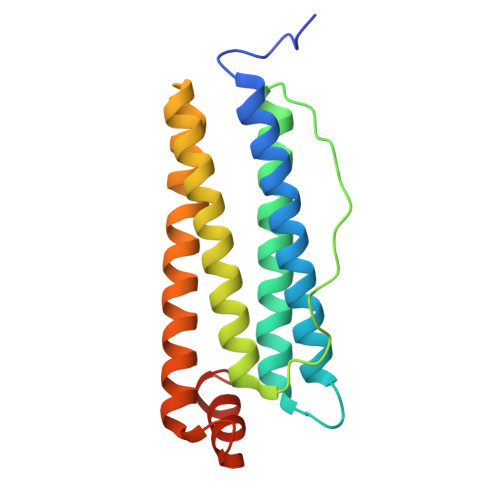

Ferritin heavy chain	A, B, C, D, E A, B, C, D, E, F, G, H, I, J, K, L, M, N, O, P, Q, R, S, T, U, V, W, X	182	Mus musculus	Mutation(s): 0 Gene Names: Fth1, Fth EC: 1.16.3.1
UniProt & NIH Common Fund Data Resources
Find proteins for P09528 (Mus musculus) Explore P09528 Go to UniProtKB: P09528
IMPC: MGI:95588
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P09528
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
MG (Subject of Investigation/LOI) Query on MG Download:Ideal Coordinates CCD File SDF format, chain ZA [auth O] SDF format, chain Z [auth A] SDF format, chain YA [auth N] SDF format, chain Y [auth A] SDF format, chain XA [auth M] SDF format, chain WA [auth L] SDF format, chain VA [auth L] SDF format, chain UA [auth K] SDF format, chain TA [auth J] SDF format, chain SA [auth J] SDF format, chain RA [auth I] SDF format, chain QA [auth I] SDF format, chain PA [auth H] SDF format, chain OA [auth H] SDF format, chain NA [auth G] SDF format, chain MA [auth F] SDF format, chain LA [auth E] SDF format, chain KA [auth E] SDF format, chain JB [auth X] SDF format, chain JA [auth E] SDF format, chain IB [auth W] SDF format, chain IA [auth D] SDF format, chain HB [auth V] SDF format, chain HA [auth D] SDF format, chain GB [auth U] SDF format, chain GA [auth C] SDF format, chain FB [auth T] SDF format, chain FA [auth C] SDF format, chain EB [auth S] SDF format, chain EA [auth C] SDF format, chain DB [auth R] SDF format, chain DA [auth B] SDF format, chain CB [auth Q] SDF format, chain CA [auth B] SDF format, chain BB [auth P] SDF format, chain BA [auth B] SDF format, chain AB [auth P] SDF format, chain AA [auth A] MOL2 format, chain ZA [auth O] MOL2 format, chain Z [auth A] MOL2 format, chain YA [auth N] MOL2 format, chain Y [auth A] MOL2 format, chain XA [auth M] MOL2 format, chain WA [auth L] MOL2 format, chain VA [auth L] MOL2 format, chain UA [auth K] MOL2 format, chain TA [auth J] MOL2 format, chain SA [auth J] MOL2 format, chain RA [auth I] MOL2 format, chain QA [auth I] MOL2 format, chain PA [auth H] MOL2 format, chain OA [auth H] MOL2 format, chain NA [auth G] MOL2 format, chain MA [auth F] MOL2 format, chain LA [auth E] MOL2 format, chain KA [auth E] MOL2 format, chain JB [auth X] MOL2 format, chain JA [auth E] MOL2 format, chain IB [auth W] MOL2 format, chain IA [auth D] MOL2 format, chain HB [auth V] MOL2 format, chain HA [auth D] MOL2 format, chain GB [auth U] MOL2 format, chain GA [auth C] MOL2 format, chain FB [auth T] MOL2 format, chain FA [auth C] MOL2 format, chain EB [auth S] MOL2 format, chain EA [auth C] MOL2 format, chain DB [auth R] MOL2 format, chain DA [auth B] MOL2 format, chain CB [auth Q] MOL2 format, chain CA [auth B] MOL2 format, chain BB [auth P] MOL2 format, chain BA [auth B] MOL2 format, chain AB [auth P] MOL2 format, chain AA [auth A] mmCIF format, chain ZA [auth O] mmCIF format, chain Z [auth A] mmCIF format, chain YA [auth N] mmCIF format, chain Y [auth A] mmCIF format, chain XA [auth M] mmCIF format, chain WA [auth L] mmCIF format, chain VA [auth L] mmCIF format, chain UA [auth K] mmCIF format, chain TA [auth J] mmCIF format, chain SA [auth J] mmCIF format, chain RA [auth I] mmCIF format, chain QA [auth I] mmCIF format, chain PA [auth H] mmCIF format, chain OA [auth H] mmCIF format, chain NA [auth G] mmCIF format, chain MA [auth F] mmCIF format, chain LA [auth E] mmCIF format, chain KA [auth E] mmCIF format, chain JB [auth X] mmCIF format, chain JA [auth E] mmCIF format, chain IB [auth W] mmCIF format, chain IA [auth D] mmCIF format, chain HB [auth V] mmCIF format, chain HA [auth D] mmCIF format, chain GB [auth U] mmCIF format, chain GA [auth C] mmCIF format, chain FB [auth T] mmCIF format, chain FA [auth C] mmCIF format, chain EB [auth S] mmCIF format, chain EA [auth C] mmCIF format, chain DB [auth R] mmCIF format, chain DA [auth B] mmCIF format, chain CB [auth Q] mmCIF format, chain CA [auth B] mmCIF format, chain BB [auth P] mmCIF format, chain BA [auth B] mmCIF format, chain AB [auth P] mmCIF format, chain AA [auth A]	AA [auth A] AB [auth P] BA [auth B] BB [auth P] CA [auth B] AA [auth A], AB [auth P], BA [auth B], BB [auth P], CA [auth B], CB [auth Q], DA [auth B], DB [auth R], EA [auth C], EB [auth S], FA [auth C], FB [auth T], GA [auth C], GB [auth U], HA [auth D], HB [auth V], IA [auth D], IB [auth W], JA [auth E], JB [auth X], KA [auth E], LA [auth E], MA [auth F], NA [auth G], OA [auth H], PA [auth H], QA [auth I], RA [auth I], SA [auth J], TA [auth J], UA [auth K], VA [auth L], WA [auth L], XA [auth M], Y [auth A], YA [auth N], Z [auth A], ZA [auth O]	MAGNESIUM ION Mg JLVVSXFLKOJNIY-UHFFFAOYSA-N		Interactions Focus chain AA [auth A] Focus chain AB [auth P] Focus chain BA [auth B] Focus chain BB [auth P] Focus chain CA [auth B] Focus chain CB [auth Q] Focus chain DA [auth B] Focus chain DB [auth R] Focus chain EA [auth C] Focus chain EB [auth S] Focus chain FA [auth C] Focus chain FB [auth T] Focus chain GA [auth C] Focus chain GB [auth U] Focus chain HA [auth D] Focus chain HB [auth V] Focus chain IA [auth D] Focus chain IB [auth W] Focus chain JA [auth E] Focus chain JB [auth X] Focus chain KA [auth E] Focus chain LA [auth E] Focus chain MA [auth F] Focus chain NA [auth G] Focus chain OA [auth H] Focus chain PA [auth H] Focus chain QA [auth I] Focus chain RA [auth I] Focus chain SA [auth J] Focus chain TA [auth J] Focus chain UA [auth K] Focus chain VA [auth L] Focus chain WA [auth L] Focus chain XA [auth M] Focus chain Y [auth A] Focus chain YA [auth N] Focus chain Z [auth A] Focus chain ZA [auth O] Interactions & Density Focus chain AA [auth A] Focus chain AB [auth P] Focus chain BA [auth B] Focus chain BB [auth P] Focus chain CA [auth B] Focus chain CB [auth Q] Focus chain DA [auth B] Focus chain DB [auth R] Focus chain EA [auth C] Focus chain EB [auth S] Focus chain FA [auth C] Focus chain FB [auth T] Focus chain GA [auth C] Focus chain GB [auth U] Focus chain HA [auth D] Focus chain HB [auth V] Focus chain IA [auth D] Focus chain IB [auth W] Focus chain JA [auth E] Focus chain JB [auth X] Focus chain KA [auth E] Focus chain LA [auth E] Focus chain MA [auth F] Focus chain NA [auth G] Focus chain OA [auth H] Focus chain PA [auth H] Focus chain QA [auth I] Focus chain RA [auth I] Focus chain SA [auth J] Focus chain TA [auth J] Focus chain UA [auth K] Focus chain VA [auth L] Focus chain WA [auth L] Focus chain XA [auth M] Focus chain Y [auth A] Focus chain YA [auth N] Focus chain Z [auth A] Focus chain ZA [auth O]

Experimental Data & Validation

Experimental Data

Method: ELECTRON MICROSCOPY
Resolution: 2.71 Å
Aggregation State: PARTICLE
Reconstruction Method: SUBTOMOGRAM AVERAGING

EM Software:

Task	Software Package	Version
RECONSTRUCTION	Warp	2.0

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2026-01-28

Deposition Author(s):

Funding Organization	Location	Grant Number
Academia Sinica (Taiwan)	Taiwan	--

Revision History (Full details and data files)

Version 1.0: 2026-01-28
Type: Initial release
