22HG | pdb_000022hg

SARS-CoV-2 BA.3.2.2(RE.2.2) RBD in complex with human ACE2 and monoclonal antibody S2H97

PDB DOI: https://doi.org/10.2210/pdb22HG/pdb
EM Map EMD-68270: EMDB EMDataResource

Classification: VIRAL PROTEIN
Organism(s): Severe acute respiratory syndrome coronavirus 2, Homo sapiens
Expression System: Homo sapiens
Mutation(s): Yes

Deposited: 2026-01-10 Released: 2026-08-12
Deposition Author(s): Li, L.J., Qu, H., Wu, Q.L., Gao, G.F.
Funding Organization(s): National Natural Science Foundation of China (NSFC)

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 2.61 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

This is version 1.0 of the entry. See complete history.

Literature

Receptor Binding, Immune Escape, and Cross-Species Transmission of SARS-CoV-2 Serum-Defined Lineage 7, BA.3.2.2(RE.2.2)

Li, L.J., Qu, H., Wu, Q.L., Gao, G.F.

To be published.

Macromolecule Content

Total Structure Weight: 116.96 kDa
Atom Count: 8,224
Modeled Residue Count: 1,005
Deposited Residue Count: 1,005
Unique protein chains: 4

Macromolecules

Find similar proteins by:

| 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

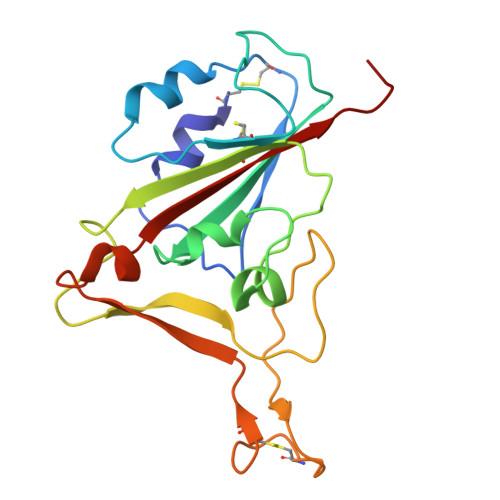

Spike protein S1	A	186	Severe acute respiratory syndrome coronavirus 2	Mutation(s): 12 Gene Names: S, 2
UniProt
Find proteins for P0DTC2 (Severe acute respiratory syndrome coronavirus 2) Explore P0DTC2 Go to UniProtKB: P0DTC2
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P0DTC2
Glycosylation
Glycosylation Sites: 2	Glycosylation Focus chain A	Go to GlyGen: P0DTC2-1
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

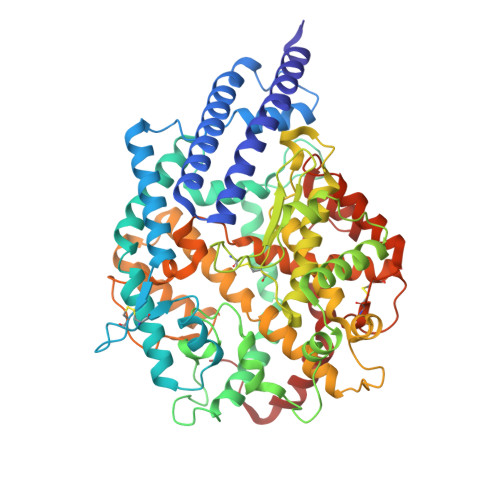

Processed angiotensin-converting enzyme 2	B	588	Homo sapiens	Mutation(s): 0 Gene Names: ACE2, UNQ868/PRO1885 EC: 3.4.17 (UniProt), 3.4.17.23 (UniProt)
UniProt & NIH Common Fund Data Resources
Find proteins for Q9BYF1 (Homo sapiens) Explore Q9BYF1 Go to UniProtKB: Q9BYF1
PHAROS: Q9BYF1 GTEx: ENSG00000130234
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q9BYF1
Glycosylation
Glycosylation Sites: 6	Glycosylation Focus chain B	Go to GlyGen: Q9BYF1-1
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 3
Molecule	Chains	Sequence Length	Organism	Details	Image

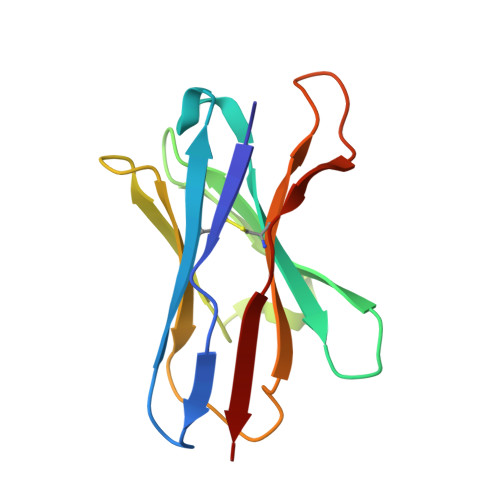

Heavy chain of monoclonal antibody S2H97	C [auth I]	119	Homo sapiens	Mutation(s): 0
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 4
Molecule	Chains	Sequence Length	Organism	Details	Image

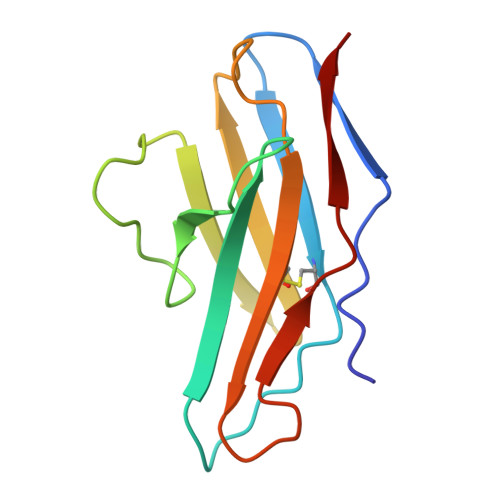

Light chain of monoclonal antibody S2H97	D [auth M]	112	Homo sapiens	Mutation(s): 0
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
Sequence Annotations Expand
Reference Sequence

Oligosaccharides

Help

Entity ID: 5
Molecule	Chains	Length	2D Diagram	Glycosylation	D Interactions
beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose	E [auth C]	3		N-Glycosylation	Interactions Focus chain E [auth C] Interactions & Density Focus chain E [auth C]

Small Molecules

Ligands 2 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
NAG Query on NAG Download:Ideal Coordinates CCD File SDF format, chain F [auth A] SDF format, chain H [auth B] SDF format, chain I [auth B] SDF format, chain J [auth B] SDF format, chain K [auth B] SDF format, chain L [auth B] SDF format, chain G [auth A] MOL2 format, chain F [auth A] MOL2 format, chain H [auth B] MOL2 format, chain I [auth B] MOL2 format, chain J [auth B] MOL2 format, chain K [auth B] MOL2 format, chain L [auth B] MOL2 format, chain G [auth A] mmCIF format, chain F [auth A] mmCIF format, chain H [auth B] mmCIF format, chain I [auth B] mmCIF format, chain J [auth B] mmCIF format, chain K [auth B] mmCIF format, chain L [auth B] mmCIF format, chain G [auth A]	F [auth A] G [auth A] H [auth B] I [auth B] J [auth B] F [auth A], G [auth A], H [auth B], I [auth B], J [auth B], K [auth B], L [auth B]	2-acetamido-2-deoxy-beta-D-glucopyranose C₈ H₁₅ N O₆ OVRNDRQMDRJTHS-FMDGEEDCSA-N		Interactions Focus chain F [auth A] Focus chain G [auth A] Focus chain H [auth B] Focus chain I [auth B] Focus chain J [auth B] Focus chain K [auth B] Focus chain L [auth B] Interactions & Density Focus chain F [auth A] Focus chain G [auth A] Focus chain H [auth B] Focus chain I [auth B] Focus chain J [auth B] Focus chain K [auth B] Focus chain L [auth B]
ZN (Subject of Investigation/LOI) Query on ZN Download:Ideal Coordinates CCD File SDF format, chain M [auth B] MOL2 format, chain M [auth B] mmCIF format, chain M [auth B]	M [auth B]	ZINC ION Zn PTFCDOFLOPIGGS-UHFFFAOYSA-N		Interactions Focus chain M [auth B] Interactions & Density Focus chain M [auth B]
