22EA | pdb_000022ea

Cryo-EM structure of MERS-CoV S protein bound with receptor DPP4 in the conformation 3 (3 up RBD and 3 DPP4 bound).

PDB DOI: https://doi.org/10.2210/pdb22EA/pdb
EM Map EMD-68191: EMDB EMDataResource

Classification: VIRAL PROTEIN
Organism(s): Homo sapiens, Betacoronavirus England 1
Expression System: Homo sapiens
Mutation(s): No

Deposited: 2026-01-07 Released: 2026-09-02
Deposition Author(s): Wang, Y.J., Sun, L.
Funding Organization(s): National Natural Science Foundation of China (NSFC)

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 3.44 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

Validation slider image for 22EA

This is version 1.0 of the entry. See complete history.

Literature

Cryo-EM structure of MERS-CoV S protein bound with receptor DPP4 in the conformation 3 (3 up RBD and 3 DPP4 bound).

Wang, Y.J., Sun, L.

To be published.

Macromolecule Content

Total Structure Weight: 991.03 kDa
Atom Count: 63,774
Modeled Residue Count: 7,989
Deposited Residue Count: 8,766
Unique protein chains: 2

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

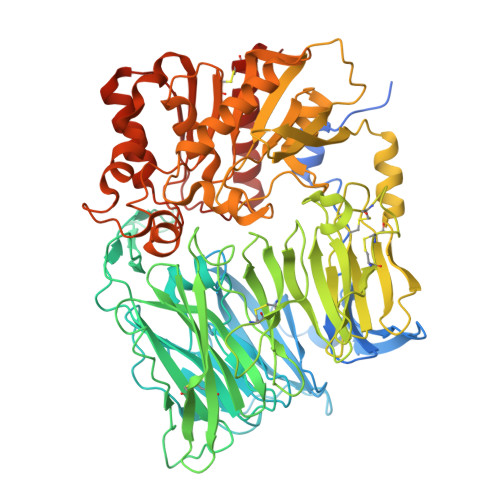

Dipeptidyl peptidase 4 membrane form	A [auth D] B [auth E] D [auth F] E [auth G] G [auth A] A [auth D], B [auth E], D [auth F], E [auth G], G [auth A], H [auth B]	791	Homo sapiens	Mutation(s): 0 Gene Names: DPP4, ADCP2, CD26 EC: 3.4.14.5
UniProt & NIH Common Fund Data Resources
Find proteins for P27487 (Homo sapiens) Explore P27487 Go to UniProtKB: P27487
PHAROS: P27487 GTEx: ENSG00000197635
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P27487
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image
Spike glycoprotein	C [auth H], F [auth I], I [auth C]	1,340	Betacoronavirus England 1	Mutation(s): 0 Gene Names: S, 3
UniProt
Find proteins for K9N5Q8 (Middle East respiratory syndrome-related coronavirus (isolate United Kingdom/H123990006/2012)) Explore K9N5Q8 Go to UniProtKB: K9N5Q8
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	K9N5Q8
Sequence Annotations Expand
Reference Sequence

Experimental Data & Validation

Experimental Data

Method: ELECTRON MICROSCOPY
Resolution: 3.44 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
MODEL REFINEMENT	PHENIX	1.17.1_3660
RECONSTRUCTION	cryoSPARC

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2026-09-02

Deposition Author(s):

Funding Organization	Location	Grant Number
National Natural Science Foundation of China (NSFC)	China	92469108

Revision History (Full details and data files)

Version 1.0: 2026-09-02
Type: Initial release
