22BV | pdb_000022bv

Cryo-EM structure of A-H(M) complex (two ADP)

PDB DOI: https://doi.org/10.2210/pdb22BV/pdb
EM Map EMD-68159: EMDB EMDataResource

Classification: IMMUNE SYSTEM
Organism(s): Ligilactobacillus acidipiscis
Expression System: Escherichia coli 'BL21-Gold(DE3)pLysS AG
Mutation(s): No

Deposited: 2026-01-06 Released: 2026-07-29
Deposition Author(s): Lin, Z., Guo, M., Zhu, Y., Huang, Z.
Funding Organization(s): National Natural Science Foundation of China (NSFC)

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 2.35 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

Validation slider image for 22BV

This is version 1.0 of the entry. See complete history.

Literature

Cryo-EM structure of A-H(M) complex (two ADP)

Lin, Z., Guo, M., Zhu, Y., Huang, Z.

To be published.

Macromolecule Content

Total Structure Weight: 151.76 kDa
Atom Count: 9,839
Modeled Residue Count: 1,213
Deposited Residue Count: 1,317
Unique protein chains: 2

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

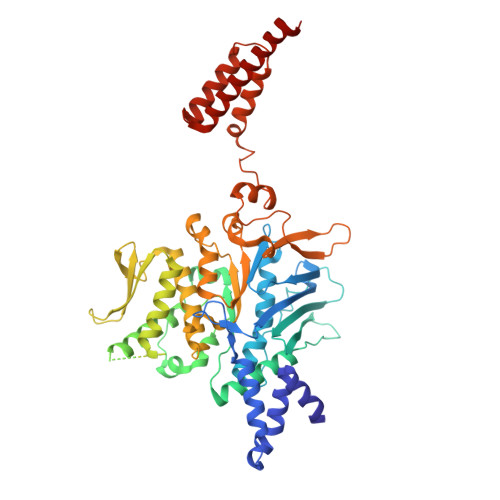

AAA family ATPase	A [auth B], B [auth C]	551	Ligilactobacillus acidipiscis	Mutation(s): 0 Gene Names: K8V00_08745
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

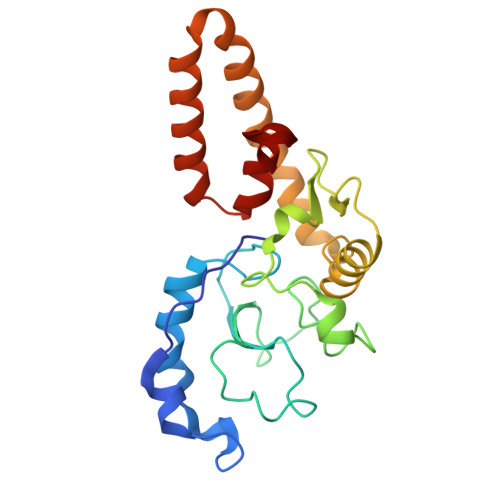

TIGR02646 family protein	C [auth F]	215	Ligilactobacillus acidipiscis	Mutation(s): 0 Gene Names: K8V00_08750
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 2 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
ADP (Subject of Investigation/LOI) Query on ADP Download:Ideal Coordinates CCD File SDF format, chain D [auth B] SDF format, chain E [auth C] MOL2 format, chain D [auth B] MOL2 format, chain E [auth C] mmCIF format, chain D [auth B] mmCIF format, chain E [auth C]	D [auth B], E [auth C]	ADENOSINE-5'-DIPHOSPHATE C₁₀ H₁₅ N₅ O₁₀ P₂ XTWYTFMLZFPYCI-KQYNXXCUSA-N		Interactions Focus chain D [auth B] Focus chain E [auth C] Interactions & Density Focus chain D [auth B] Focus chain E [auth C]
ZN (Subject of Investigation/LOI) Query on ZN Download:Ideal Coordinates CCD File SDF format, chain F MOL2 format, chain F mmCIF format, chain F	F	ZINC ION Zn PTFCDOFLOPIGGS-UHFFFAOYSA-N		Interactions Focus chain F Interactions & Density Focus chain F

Experimental Data & Validation

Experimental Data

Method: ELECTRON MICROSCOPY
Resolution: 2.35 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
MODEL REFINEMENT	PHENIX	1.20.1_4487:
RECONSTRUCTION	cryoSPARC

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2026-07-29

Deposition Author(s):

Funding Organization	Location	Grant Number
National Natural Science Foundation of China (NSFC)	China	--

Revision History (Full details and data files)

Version 1.0: 2026-07-29
Type: Initial release
