21GR | pdb_000021gr

DPR epimerase complex, PMD-bound state

PDB DOI: https://doi.org/10.2210/pdb21GR/pdb
EM Map EMD-67659: EMDB EMDataResource

Classification: ISOMERASE
Organism(s): Mycobacterium tuberculosis H37Rv
Expression System: Mycolicibacterium smegmatis MC2 155
Mutation(s): No

Deposited: 2025-12-11 Released: 2026-09-02
Deposition Author(s): Wu, F., Gao, S., Rao, Z., Zhang, L.
Funding Organization(s): National Natural Science Foundation of China (NSFC)

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 2.73 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

Validation slider image for 21GR

This is version 1.0 of the entry. See complete history.

Literature

DPR epimerase complex, PMD-bound state

Wu, F., Gao, S., Rao, Z., Zhang, L.

To be published.

Macromolecule Content

Total Structure Weight: 159.07 kDa
Atom Count: 11,040
Modeled Residue Count: 1,410
Deposited Residue Count: 1,430
Unique protein chains: 2

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

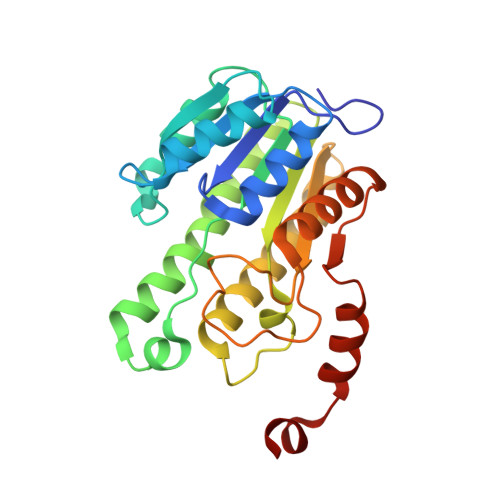

Decaprenylphosphoryl-2-keto-beta-D-erythro-pentose reductase	A [auth C], C [auth D]	254	Mycobacterium tuberculosis H37Rv	Mutation(s): 0 Gene Names: dprE2, Rv3791, MTCY13D12.25 EC: 1.1.1.333
UniProt
Find proteins for P9WGS9 (Mycobacterium tuberculosis (strain ATCC 25618 / H37Rv)) Explore P9WGS9 Go to UniProtKB: P9WGS9
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P9WGS9
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

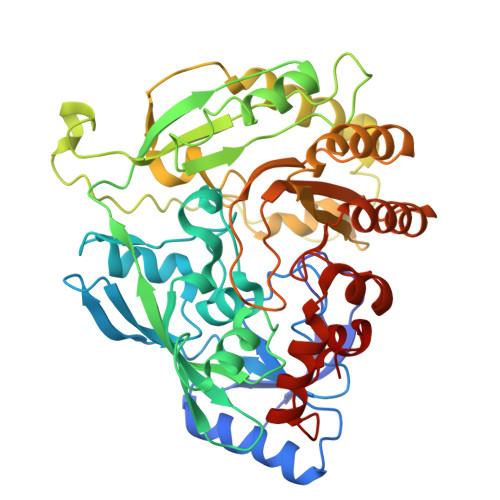

Decaprenylphosphoryl-beta-D-ribose oxidase	B, D [auth A]	461	Mycobacterium tuberculosis H37Rv	Mutation(s): 0 Gene Names: dprE1, Rv3790 EC: 1.1.98.3
UniProt
Find proteins for P9WJF1 (Mycobacterium tuberculosis (strain ATCC 25618 / H37Rv)) Explore P9WJF1 Go to UniProtKB: P9WJF1
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P9WJF1
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 3 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
FAD (Subject of Investigation/LOI) Query on FAD Download:Ideal Coordinates CCD File SDF format, chain J [auth A] SDF format, chain G [auth B] MOL2 format, chain J [auth A] MOL2 format, chain G [auth B] mmCIF format, chain J [auth A] mmCIF format, chain G [auth B]	G [auth B], J [auth A]	FLAVIN-ADENINE DINUCLEOTIDE C₂₇ H₃₃ N₉ O₁₅ P₂ VWWQXMAJTJZDQX-UYBVJOGSSA-N		Interactions Focus chain G [auth B] Focus chain J [auth A] Interactions & Density Focus chain G [auth B] Focus chain J [auth A]
NAI (Subject of Investigation/LOI) Query on NAI Download:Ideal Coordinates CCD File SDF format, chain I [auth D] SDF format, chain F [auth C] MOL2 format, chain I [auth D] MOL2 format, chain F [auth C] mmCIF format, chain I [auth D] mmCIF format, chain F [auth C]	F [auth C], I [auth D]	1,4-DIHYDRONICOTINAMIDE ADENINE DINUCLEOTIDE C₂₁ H₂₉ N₇ O₁₄ P₂ BOPGDPNILDQYTO-NNYOXOHSSA-N		Interactions Focus chain F [auth C] Focus chain I [auth D] Interactions & Density Focus chain F [auth C] Focus chain I [auth D]
A1L5K( Subject of Investigation/LOI) Query on A1L5K Download:Ideal Coordinates CCD File SDF format, chain H [auth D] SDF format, chain E [auth C] MOL2 format, chain H [auth D] MOL2 format, chain E [auth C] mmCIF format, chain H [auth D] mmCIF format, chain E [auth C]	E [auth C], H [auth D]	pretomanid C₁₄ H₁₃ F₃ N₃ O₅ WMTOTWDJQLQWOG-NSHDSACASA-N		Interactions Focus chain E [auth C] Focus chain H [auth D] Interactions & Density Focus chain E [auth C] Focus chain H [auth D]

Experimental Data & Validation

Experimental Data

Method: ELECTRON MICROSCOPY
Resolution: 2.73 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
RECONSTRUCTION	cryoSPARC
MODEL REFINEMENT	PHENIX

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2026-09-02

Deposition Author(s):

Funding Organization	Location	Grant Number
National Natural Science Foundation of China (NSFC)	China	32394011

Revision History (Full details and data files)

Version 1.0: 2026-09-02
Type: Initial release
