1LBQ

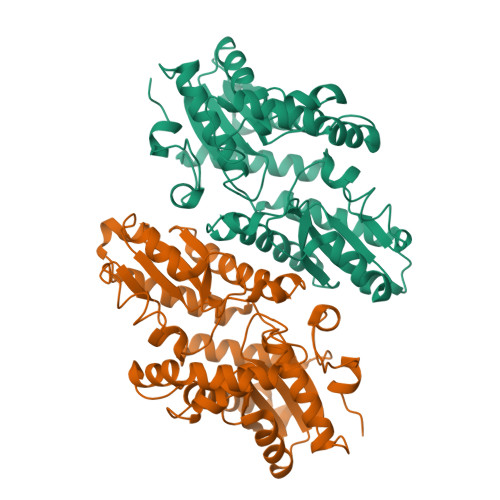

The crystal structure of Saccharomyces cerevisiae ferrochelatase


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.40 Å
  • R-Value Free: 0.282
  • R-Value Work: 0.255

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


This is version 1.4 of the entry. See complete history


Literature

Metal binding to Saccharomyces cerevisiae ferrochelatase

Karlberg, T.Lecerof, D.Gora, M.Silvegren, G.Labbe-Bois, R.Hansson, M.Al-Karadaghi, S.

(2002) Biochemistry 41: 13499-13506

  • DOI: https://doi.org/10.1021/bi0260785
  • Primary Citation of Related Structures:
    1L8X, 1LBQ

  • PubMed Abstract:

    Ferrochelatase is the terminal enzyme in the heme biosynthetic pathway. It catalyzes the insertion of ferrous iron into protoporphyrin IX to produce protoheme IX. The crystal structures of ferrochelatase from Saccharomyces cerevisiae in free form, in complex with Co(II), a substrate metal ion, and in complex with two inhibitors, Cd(II) and Hg(I), are presented in this work. The enzyme is a homodimer, with clear asymmetry between the monomers with regard to the porphyrin binding cleft and the mode of metal binding. The Co(II) and Cd(II) complexes reveal the metal binding site which consists of the invariant amino acids H235, E314, and S275 and solvent molecules. The shortest distance to the metal reveals that amino acid H235 is the primary metal binding residue. A second site with bound Cd(II) was found close to the surface of the molecule, approximately 14 A from H235, with E97, H317, and E326 participating in metal coordination. It is suggested that this site corresponds to the magnesium binding site in Bacillus subtilis ferrochelatase. The latter site is also located at the surface of the molecule and thought to be involved in initial metal binding and regulation.


  • Organizational Affiliation

    Department of Molecular Biophysics, Centre for Chemistry and Chemical Engineering, Lund University, Sweden.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Ferrochelatase
A, B
362Saccharomyces cerevisiaeMutation(s): 0
EC: 4.99.1.1 (PDB Primary Data), 4.98.1.1 (UniProt)
Membrane Entity: Yes
UniProt
Find proteins for P16622 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P16622
Go to UniProtKB:  P16622
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP16622
Sequence Annotations
Expand
  • Reference Sequence
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.40 Å
  • R-Value Free: 0.282
  • R-Value Work: 0.255
  • Space Group: P 21 21 21
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 86.61α = 90
b = 97.169β = 90
c = 121.574γ = 90
Software Package:
Software NamePurpose
XDSdata scaling
XDSdata reduction
CNSrefinement
CNSphasing

Structure Validation

View Full Validation Report



Entry History

Deposition Data

Revision History  (Full details and data files)

  • Version 1.0: 2002-11-20
    Type: Initial release
  • Version 1.1: 2008-05-05
    Changes: Version format compliance
  • Version 1.2: 2011-07-13
    Changes: Version format compliance
  • Version 1.3: 2017-10-11
    Changes: Data collection, Refinement description
  • Version 1.4: 2023-08-16
    Changes: Data collection, Database references, Refinement description
