1HUU | pdb_00001huu

DNA-BINDING PROTEIN HU FROM BACILLUS STEAROTHERMOPHILUS

PDB DOI: https://doi.org/10.2210/pdb1HUU/pdb

Classification: DNA BINDING PROTEIN
Organism(s): Geobacillus stearothermophilus
Mutation(s): No

Deposited: 1998-07-06 Released: 1999-01-13
Deposition Author(s): White, S.W., Tanaka, I., Appelt, K., Wilson, K.S.

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 2.00 Å
R-Value Free:
0.213 (Depositor)
R-Value Work:
0.193 (Depositor)
R-Value Observed:
0.193 (Depositor)

wwPDB Validation 3D Report Full Report

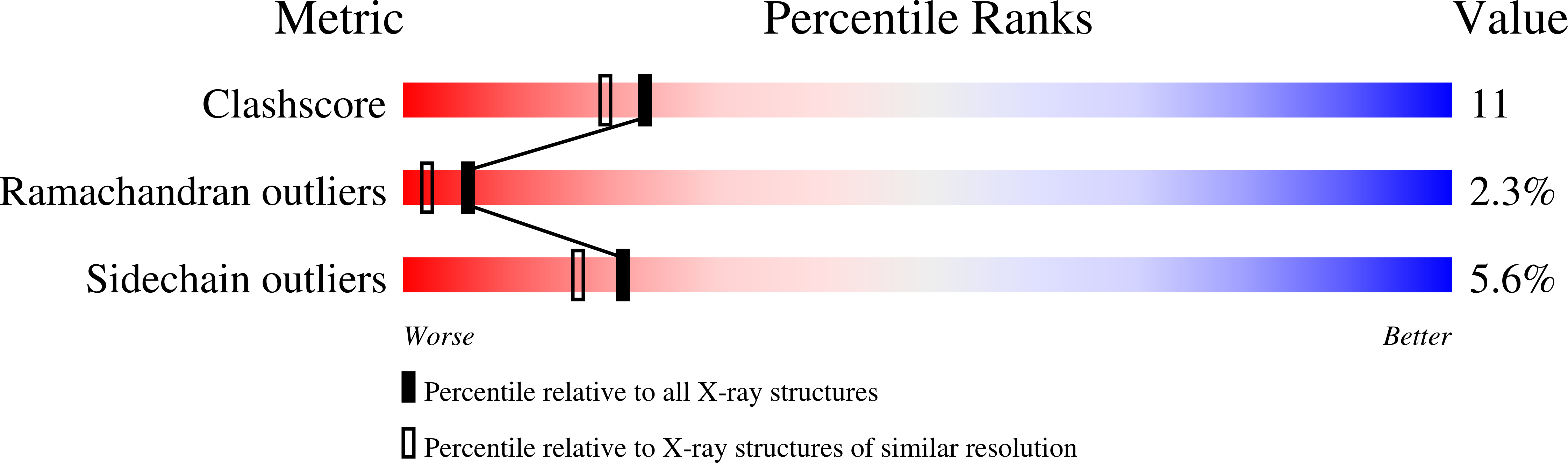

Validation slider image for 1HUU

This is version 1.3 of the entry. See complete history.

Literature

A protein structural motif that bends DNA.

White, S.W., Appelt, K., Wilson, K.S., Tanaka, I.

(1989) Proteins 5: 281-288

PubMed: 2508086 Search on PubMed
DOI: https://doi.org/10.1002/prot.340050405
Primary Citation Related Structures:
1HUU

PubMed Abstract:
The prokaryotic protein HU, integration host factor (IHF) from Escherichia coli, and transcription factor 1 (TF1) from bacteriophage SPO1 are closely related molecules. Biochemical results suggest that the role of these proteins is to bind and bend DNA. From the high-resolution structure of HU, we propose a model for this interaction with DNA. Crucial amino acid differences between the proteins can be rationalized in terms of their different specific functions.

Organizational Affiliation

Biology Department, Brookhaven National Laboratory, Upton, New York 11973.

Macromolecule Content

Total Structure Weight: 29.2 kDa
Atom Count: 1,971
Modeled Residue Count: 225
Deposited Residue Count: 270
Unique protein chains: 1

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
PROTEIN HU	A, B, C	90	Geobacillus stearothermophilus	Mutation(s): 0
UniProt
Find proteins for P0A3H0 (Geobacillus stearothermophilus) Explore P0A3H0 Go to UniProtKB: P0A3H0
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P0A3H0
Sequence Annotations Expand
Reference Sequence

Experimental Data & Validation

Experimental Data

Method: X-RAY DIFFRACTION
Resolution: 2.00 Å
R-Value Free: 0.213 (Depositor)
R-Value Work: 0.193 (Depositor)
R-Value Observed: 0.193 (Depositor)

Space Group: P 1 2 1

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 65.5	α = 90
b = 37.3	β = 114.5
c = 65.5	γ = 90

Software Package:

Software Name	Purpose
X-PLOR	model building
X-PLOR	refinement
MOSFLM	data reduction
CCP4	data scaling
X-PLOR	phasing

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

Deposition Data

Released Date: 1999-01-13

Deposition Author(s):

Revision History (Full details and data files)

Version 1.0: 1999-01-13
Type: Initial release
Version 1.1: 2008-03-24
Changes: Version format compliance
Version 1.2: 2011-07-13
Changes: Derived calculations, Version format compliance
Version 1.3: 2024-02-07
Changes: Data collection, Database references, Other, Structure summary
