 13DW | pdb_000013dw

Structure of HSP90b bound to de-novo designed binder H2


Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 2.90 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

Starting Models: in silico, experimental
View more details

wwPDB Validation 3D Report Full Report

Validation slider image for 13DW

This is version 1.0 of the entry. See complete history.

Literature

Structural analysis of de novo-designed binders targeting the closed state of HSP90.

Srivastava, D., Singh, S., Boyd, K., Artemyev, N.O.

(2026) Structure

  • DOI: https://doi.org/10.1016/j.str.2026.09.007
  • Primary Citation Related Structures:
    13DW, 13DX

  • PubMed Abstract:

    Heat shock protein 90 (HSP90) assists the folding and maturation of numerous signaling proteins and is an important therapeutic target. Most HSP90 inhibitors target the ATP-binding pocket and disrupt ATP-induced closure, whereas inhibitors targeting the closed state have not been developed. Here, we report de novo-designed protein binders that selectively recognize closed HSP90. Two binders, H2 and H4, have similar folds and affinities for HSP90 but distinct binding kinetics. Cryo-EM structures of HSP90 complexes with H2 and H4 revealed high accuracy of the BindCraft predictions. H2 and H4 compete with p23 at one, but not both, symmetrical p23-binding sites. In HEK293T cells, H2 induced a reduced heat shock response compared with the ATP-site inhibitor 17-DMAG while reducing levels of CDK4, providing functional evidence for HSP90 inhibition. These binders provide tools for probing HSP90 function and potential leads for developing closed-state HSP90 inhibitors.


  • Organizational Affiliation:
    • Department of Molecular Physiology and Biophysics, The University of Iowa Carver College of Medicine, Iowa City, IA 52242, USA.

Macromolecule Content

  • Total Structure Weight: 197.89 kDa
  • Atom Count: 11,360
  • Modeled Residue Count: 1,390
  • Deposited Residue Count: 1,704
  • Unique protein chains: 2

Macromolecules

Find similar proteins by:|  3D Structure
Entity ID: 1
MoleculeChains  Sequence LengthOrganismDetailsImage

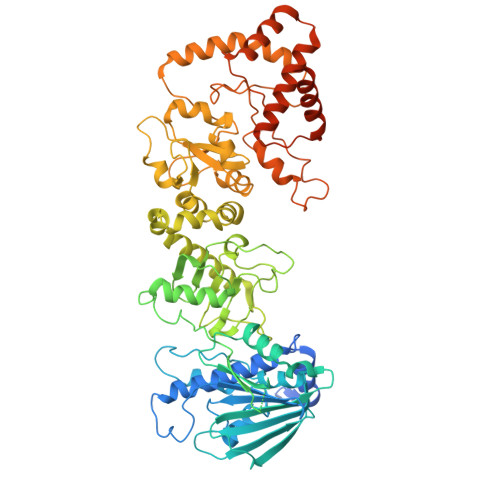

Heat shock protein HSP 90-beta
A, B
756Homo sapiensMutation(s): 0
Gene Names: HSP90AB1, HSP90B, HSPC2, HSPCB
UniProt & NIH Common Fund Data Resources
Find proteins for P08238 (Homo sapiens)
Explore P08238
Go to UniProtKB:  P08238
PHAROS:  P08238
GTEx:  ENSG00000096384
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP08238
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 2
MoleculeChains  Sequence LengthOrganismDetailsImage

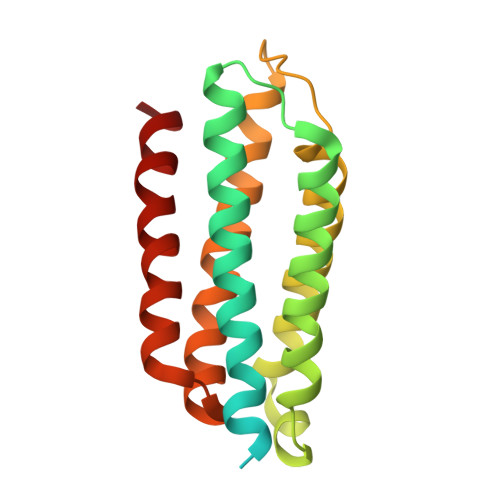

De-novo designed binder H2192synthetic constructMutation(s): 0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations
Expand
Reference Sequence

Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 2.90 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE
EM Software:
TaskSoftware PackageVersion
RECONSTRUCTIONcryoSPARC
MODEL REFINEMENTPHENIX1.21.1_5286

Structure Validation

View Full Validation Report



Entry History

& Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
National Institutes of Health/National Eye Institute (NIH/NEI)United StatesR01EY010843

Revision History  (Full details and data files)

  • Version 1.0: 2026-10-28
    Type: Initial release
