11TF | pdb_000011tf

Structure of human CCR4 in complex with PRT193

• PDB DOI: https://doi.org/10.2210/pdb11TF/pdb
• EM Map EMD-76032: EMDB EMDataResource

• Classification: MEMBRANE PROTEIN
• Organism(s): Homo sapiens, Escherichia coli
• Expression System: Homo sapiens, Escherichia coli
• Mutation(s): No


• Deposited: 2026-03-12 Released: 2026-04-01
• Deposition Author(s): Qi, X., Zhou, N., Wang, R.
• Funding Organization(s): Cancer Prevention and Research Institute of Texas (CPRIT), Welch Foundation

---

Experimental Data Snapshot

• Method: ELECTRON MICROSCOPY
• Resolution: 3.40 Å
• Aggregation State: PARTICLE
• Reconstruction Method: SINGLE PARTICLE

Literature

Structure of human CCR4 in complex with PRT193

Qi, X., Zhou, N., Wang, R.

To be published.

Biological Assembly 1

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Hetero 3-mer - A1B1C1 Pseudo Symmetry: Asymmetric - C1
Pseudo Stoichiometry: Hetero 3-mer - A2B1

Biological assembly 1 assigned by authors and generated by (software)

Biological Assembly Evidence: electron microscopy

Macromolecule Content

• Total Structure Weight: 102.53 kDa
• Atom Count: 5,007
• Modeled Residue Count: 627
• Deposited Residue Count: 918
• Unique protein chains: 3

Macromolecules

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

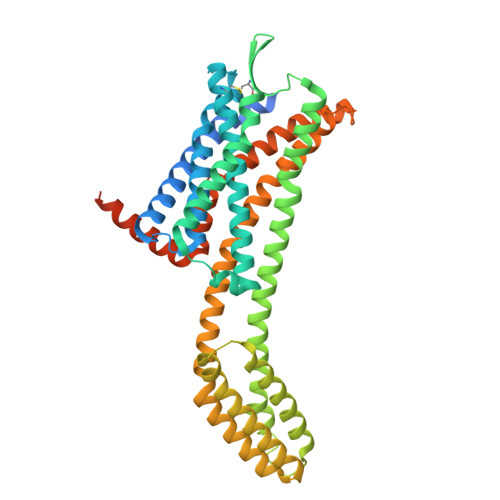

C-C chemokine receptor type 4,Soluble cytochrome b562	A [auth R]	475	Homo sapiens, Escherichia coli	Mutation(s): 0  Gene Names: CCR4, CMKBR4, cybC
UniProt & NIH Common Fund Data Resources
Find proteins for P51679 (Homo sapiens) Explore P51679  Go to UniProtKB:  P51679
PHAROS:  P51679 GTEx:  ENSG00000183813
Find proteins for P0ABE7 (Escherichia coli) Explore P0ABE7  Go to UniProtKB:  P0ABE7
UniProt Groups	P51679P0ABE7

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

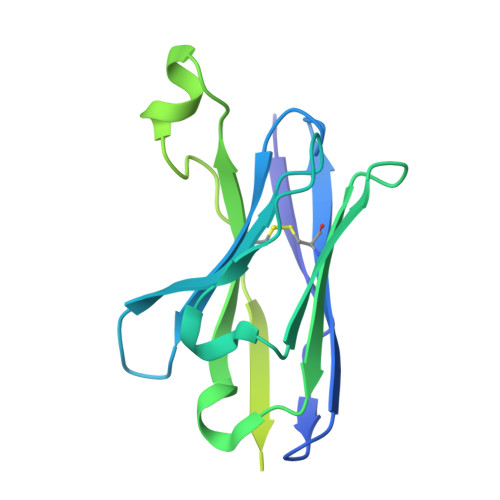

Anti-BRIL Fab heavy chain	B [auth H]	229	Homo sapiens	Mutation(s): 0

Entity ID: 3
Molecule	Chains	Sequence Length	Organism	Details	Image

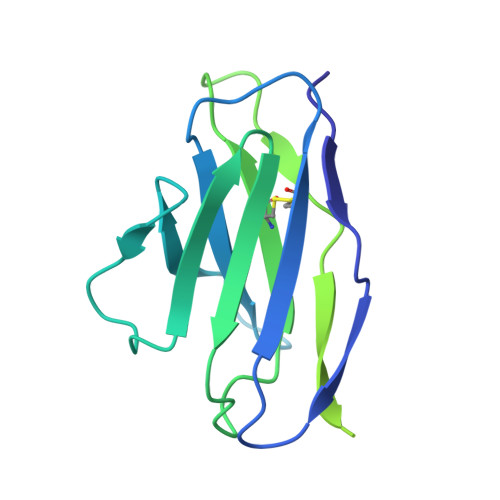

Anti-BRIL Fab light chain	C [auth L]	214	Homo sapiens	Mutation(s): 0

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram
A1DAO (Subject of Investigation/LOI)	D [auth R]	(1R,3r)-3-{(3R)-3-[1-(5-chloro-4-{[(1R)-1-(2,4-dichlorophenyl)ethyl]amino}-6-methylpyrimidin-2-yl)azetidin-3-yl]piperidin-1-yl}-1-methylcyclobutane-1-carboxylic acid C27 H34 Cl3 N5 O2 ANPSFQZLPNWKHR-BPZFHHOVSA-N

Experimental Data & Validation

Experimental Data

• Method: ELECTRON MICROSCOPY
• Resolution: 3.40 Å
• Aggregation State: PARTICLE
• Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
MODEL REFINEMENT	PHENIX
RECONSTRUCTION	cryoSPARC

Structure Validation

Entry History & Funding Information

Deposition Data

• Released Date: 2026-04-01
Deposition Author(s): Qi, X., Zhou, N., Wang, R.

---

Funding Organization	Location	Grant Number
Cancer Prevention and Research Institute of Texas (CPRIT)	United States	RR230054
Welch Foundation	United States	I-2253-20250403

Revision History

• Version 1.0: 2026-04-01
  Type: Initial release
