10OY | pdb_000010oy

TASK-2 at pH 6.5

PDB DOI: https://doi.org/10.2210/pdb10OY/pdb
EM Map EMD-75365: EMDB EMDataResource

Classification: TRANSPORT PROTEIN
Organism(s): Mus musculus, Homo sapiens
Expression System: Komagataella pastoris, Escherichia coli
Mutation(s): No

Deposited: 2026-01-30 Released: 2026-10-07
Deposition Author(s): Docter, T., Li, B., Brohawn, S.G.
Funding Organization(s): National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 2.62 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

Validation slider image for 10OY

This is version 1.0 of the entry. See complete history.

Literature

A shared site for lipid and anesthetic block of the two-pore domain K+ channel TASK-2

Docter, T., Sorum, B., Li, B., Rietmeijer, R.A., Cook, A.S.I., Kotecha, A., Brohawn, S.G.

To be published.

Macromolecule Content

Total Structure Weight: 119.95 kDa
Atom Count: 4,687
Modeled Residue Count: 538
Deposited Residue Count: 898
Unique protein chains: 2

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

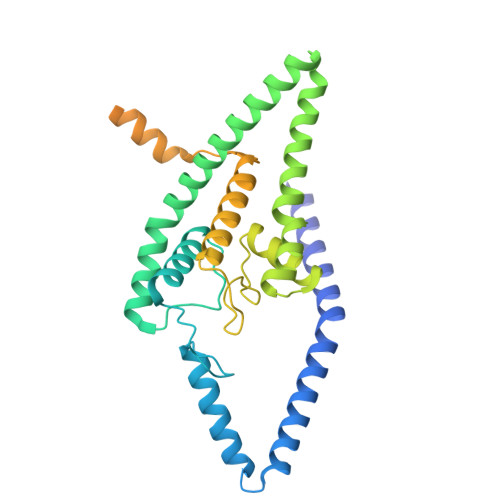

Potassium channel TASK2	A, B	344	Mus musculus	Mutation(s): 0 Gene Names: Kcnk5
UniProt
Find proteins for Q9JK62 (Mus musculus) Explore Q9JK62 Go to UniProtKB: Q9JK62
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q9JK62
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

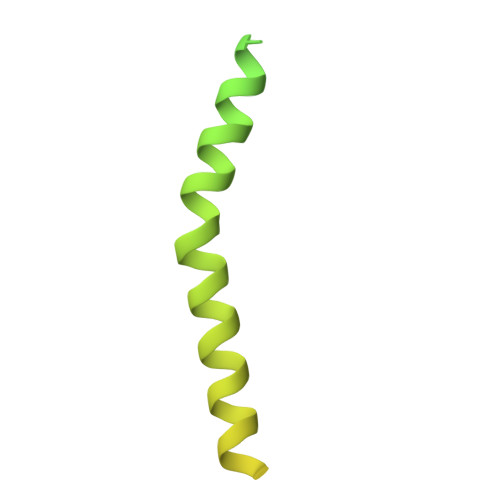

Apolipoprotein A-I	C [auth D]	210	Homo sapiens	Mutation(s): 0 Gene Names: APOA1
UniProt & NIH Common Fund Data Resources
Find proteins for P02647 (Homo sapiens) Explore P02647 Go to UniProtKB: P02647
PHAROS: P02647 GTEx: ENSG00000118137
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P02647
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 2 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
PEE Query on PEE Download:Ideal Coordinates CCD File SDF format, chain AA [auth B] SDF format, chain BA [auth B] SDF format, chain CA [auth B] SDF format, chain DA [auth D] SDF format, chain G [auth A] SDF format, chain H [auth A] SDF format, chain I [auth A] SDF format, chain J [auth A] SDF format, chain K [auth A] SDF format, chain L [auth A] SDF format, chain M [auth A] SDF format, chain N [auth A] SDF format, chain O [auth A] SDF format, chain P [auth A] SDF format, chain Q [auth A] SDF format, chain R [auth B] SDF format, chain S [auth B] SDF format, chain T [auth B] SDF format, chain U [auth B] SDF format, chain V [auth B] SDF format, chain W [auth B] SDF format, chain X [auth B] SDF format, chain Y [auth B] SDF format, chain Z [auth B] MOL2 format, chain AA [auth B] MOL2 format, chain BA [auth B] MOL2 format, chain CA [auth B] MOL2 format, chain DA [auth D] MOL2 format, chain G [auth A] MOL2 format, chain H [auth A] MOL2 format, chain I [auth A] MOL2 format, chain J [auth A] MOL2 format, chain K [auth A] MOL2 format, chain L [auth A] MOL2 format, chain M [auth A] MOL2 format, chain N [auth A] MOL2 format, chain O [auth A] MOL2 format, chain P [auth A] MOL2 format, chain Q [auth A] MOL2 format, chain R [auth B] MOL2 format, chain S [auth B] MOL2 format, chain T [auth B] MOL2 format, chain U [auth B] MOL2 format, chain V [auth B] MOL2 format, chain W [auth B] MOL2 format, chain X [auth B] MOL2 format, chain Y [auth B] MOL2 format, chain Z [auth B] mmCIF format, chain AA [auth B] mmCIF format, chain BA [auth B] mmCIF format, chain CA [auth B] mmCIF format, chain DA [auth D] mmCIF format, chain G [auth A] mmCIF format, chain H [auth A] mmCIF format, chain I [auth A] mmCIF format, chain J [auth A] mmCIF format, chain K [auth A] mmCIF format, chain L [auth A] mmCIF format, chain M [auth A] mmCIF format, chain N [auth A] mmCIF format, chain O [auth A] mmCIF format, chain P [auth A] mmCIF format, chain Q [auth A] mmCIF format, chain R [auth B] mmCIF format, chain S [auth B] mmCIF format, chain T [auth B] mmCIF format, chain U [auth B] mmCIF format, chain V [auth B] mmCIF format, chain W [auth B] mmCIF format, chain X [auth B] mmCIF format, chain Y [auth B] mmCIF format, chain Z [auth B]	AA [auth B] BA [auth B] CA [auth B] DA [auth D] G [auth A] AA [auth B], BA [auth B], CA [auth B], DA [auth D], G [auth A], H [auth A], I [auth A], J [auth A], K [auth A], L [auth A], M [auth A], N [auth A], O [auth A], P [auth A], Q [auth A], R [auth B], S [auth B], T [auth B], U [auth B], V [auth B], W [auth B], X [auth B], Y [auth B], Z [auth B]	1,2-dioleoyl-sn-glycero-3-phosphoethanolamine C₄₁ H₇₈ N O₈ P MWRBNPKJOOWZPW-NYVOMTAGSA-N		Interactions Focus chain AA [auth B] Focus chain BA [auth B] Focus chain CA [auth B] Focus chain DA [auth D] Focus chain G [auth A] Focus chain H [auth A] Focus chain I [auth A] Focus chain J [auth A] Focus chain K [auth A] Focus chain L [auth A] Focus chain M [auth A] Focus chain N [auth A] Focus chain O [auth A] Focus chain P [auth A] Focus chain Q [auth A] Focus chain R [auth B] Focus chain S [auth B] Focus chain T [auth B] Focus chain U [auth B] Focus chain V [auth B] Focus chain W [auth B] Focus chain X [auth B] Focus chain Y [auth B] Focus chain Z [auth B] Interactions & Density Focus chain AA [auth B] Focus chain BA [auth B] Focus chain CA [auth B] Focus chain DA [auth D] Focus chain G [auth A] Focus chain H [auth A] Focus chain I [auth A] Focus chain J [auth A] Focus chain K [auth A] Focus chain L [auth A] Focus chain M [auth A] Focus chain N [auth A] Focus chain O [auth A] Focus chain P [auth A] Focus chain Q [auth A] Focus chain R [auth B] Focus chain S [auth B] Focus chain T [auth B] Focus chain U [auth B] Focus chain V [auth B] Focus chain W [auth B] Focus chain X [auth B] Focus chain Y [auth B] Focus chain Z [auth B]
K Query on K Download:Ideal Coordinates CCD File SDF format, chain D [auth A] SDF format, chain E [auth A] SDF format, chain F [auth A] MOL2 format, chain D [auth A] MOL2 format, chain E [auth A] MOL2 format, chain F [auth A] mmCIF format, chain D [auth A] mmCIF format, chain E [auth A] mmCIF format, chain F [auth A]	D [auth A], E [auth A], F [auth A]	POTASSIUM ION K NPYPAHLBTDXSSS-UHFFFAOYSA-N		Interactions Focus chain D [auth A] Focus chain E [auth A] Focus chain F [auth A] Interactions & Density Focus chain D [auth A] Focus chain E [auth A] Focus chain F [auth A]

Experimental Data & Validation

Experimental Data

Method: ELECTRON MICROSCOPY
Resolution: 2.62 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
MODEL REFINEMENT	PHENIX	1.21.2_5419
RECONSTRUCTION	cryoSPARC

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2026-10-07

Deposition Author(s):

Funding Organization	Location	Grant Number
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)	United States	GM145869

Revision History (Full details and data files)

Version 1.0: 2026-10-07
Type: Initial release
